For the first time in its Thailand history, Toyota released the 4WD grade in Revo Single cab configuration. Before that, Single cabs were always released in 2WD only. By having a 4by4 model, the single cab sales more than tripled as there was a huge demand for powerful single cabs both locally and globally. We never sold this much single cabs before. Now unsurprising it’s our third largest export. If you are looking to import it, inquire us right away for your purchase.

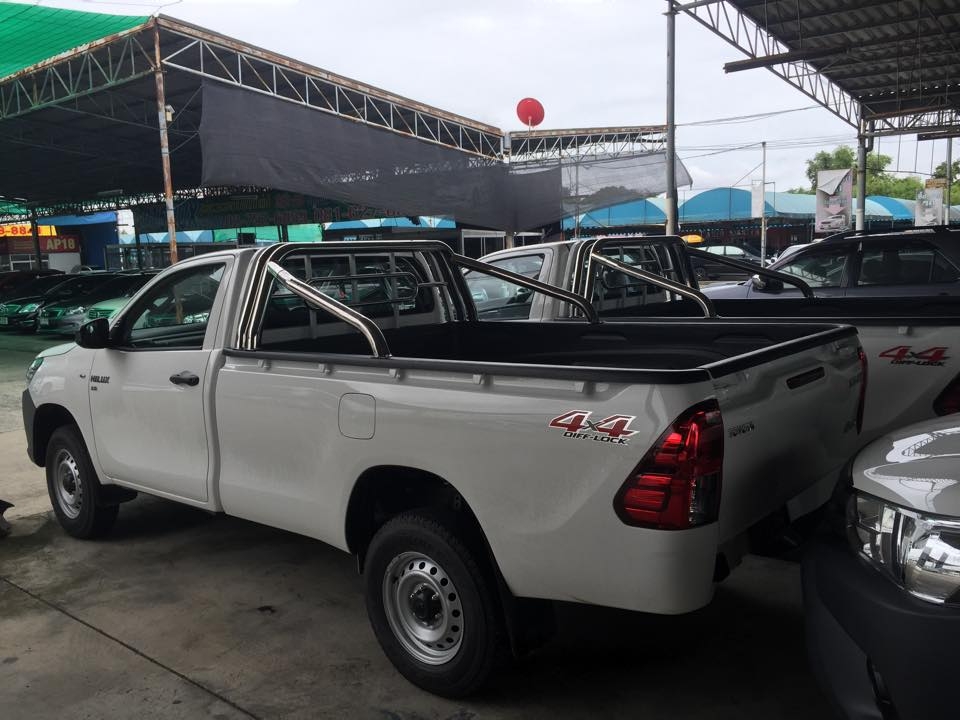

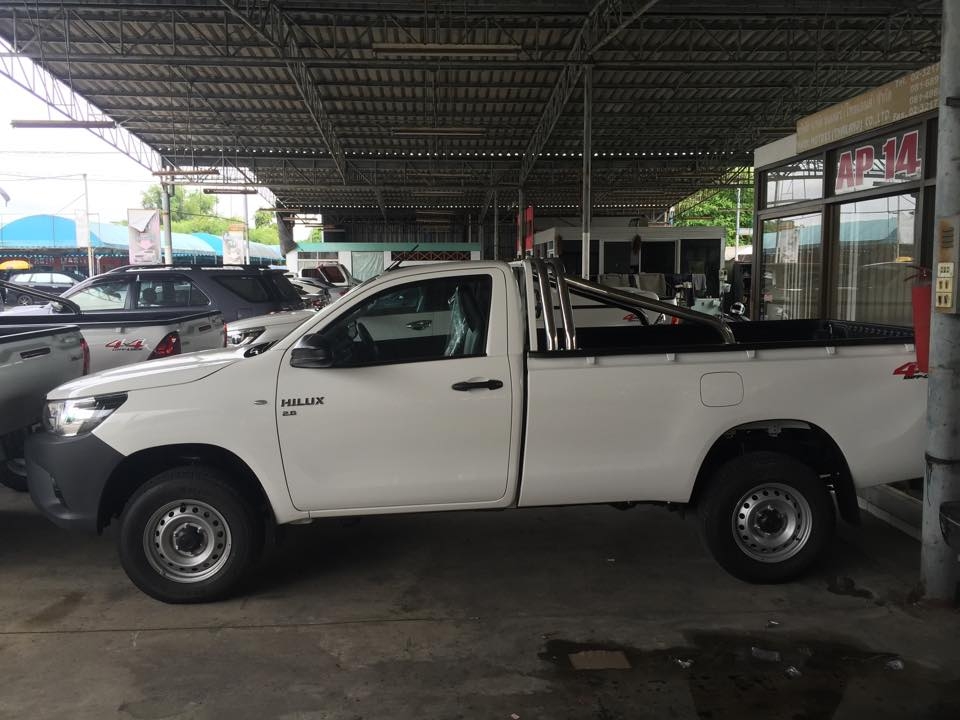

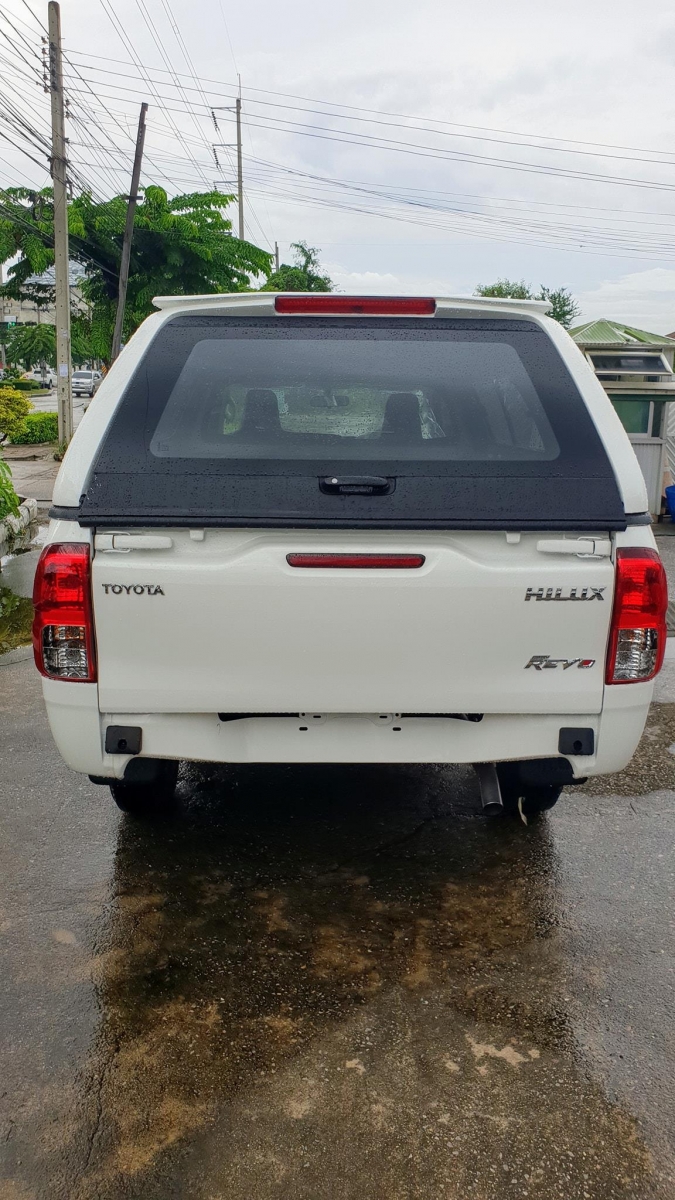

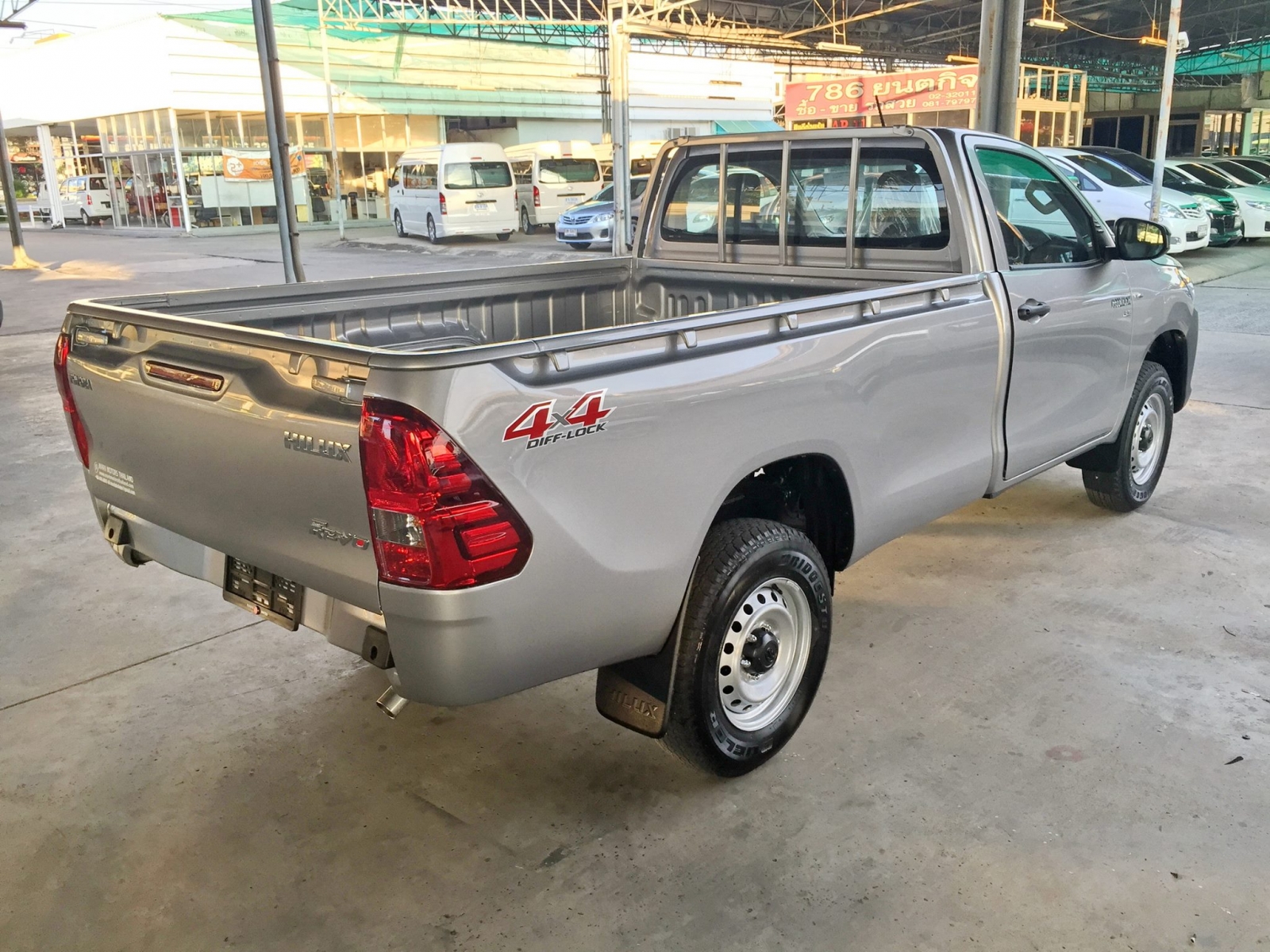

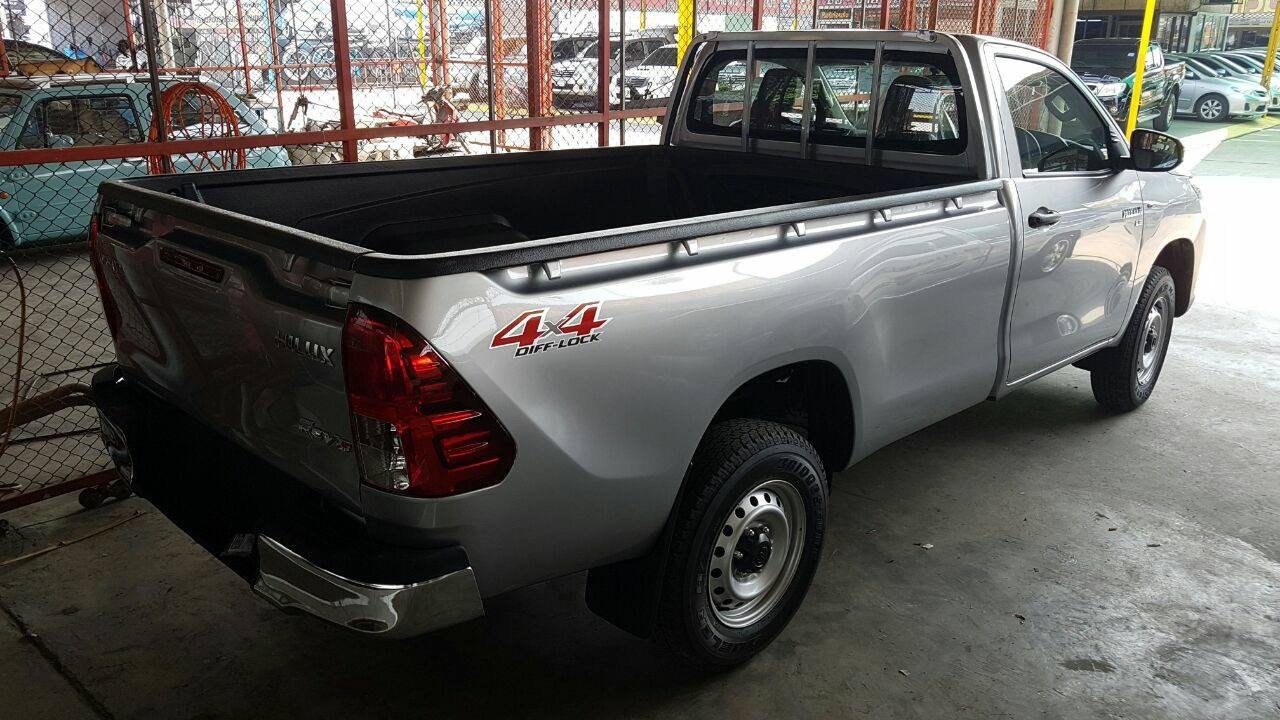

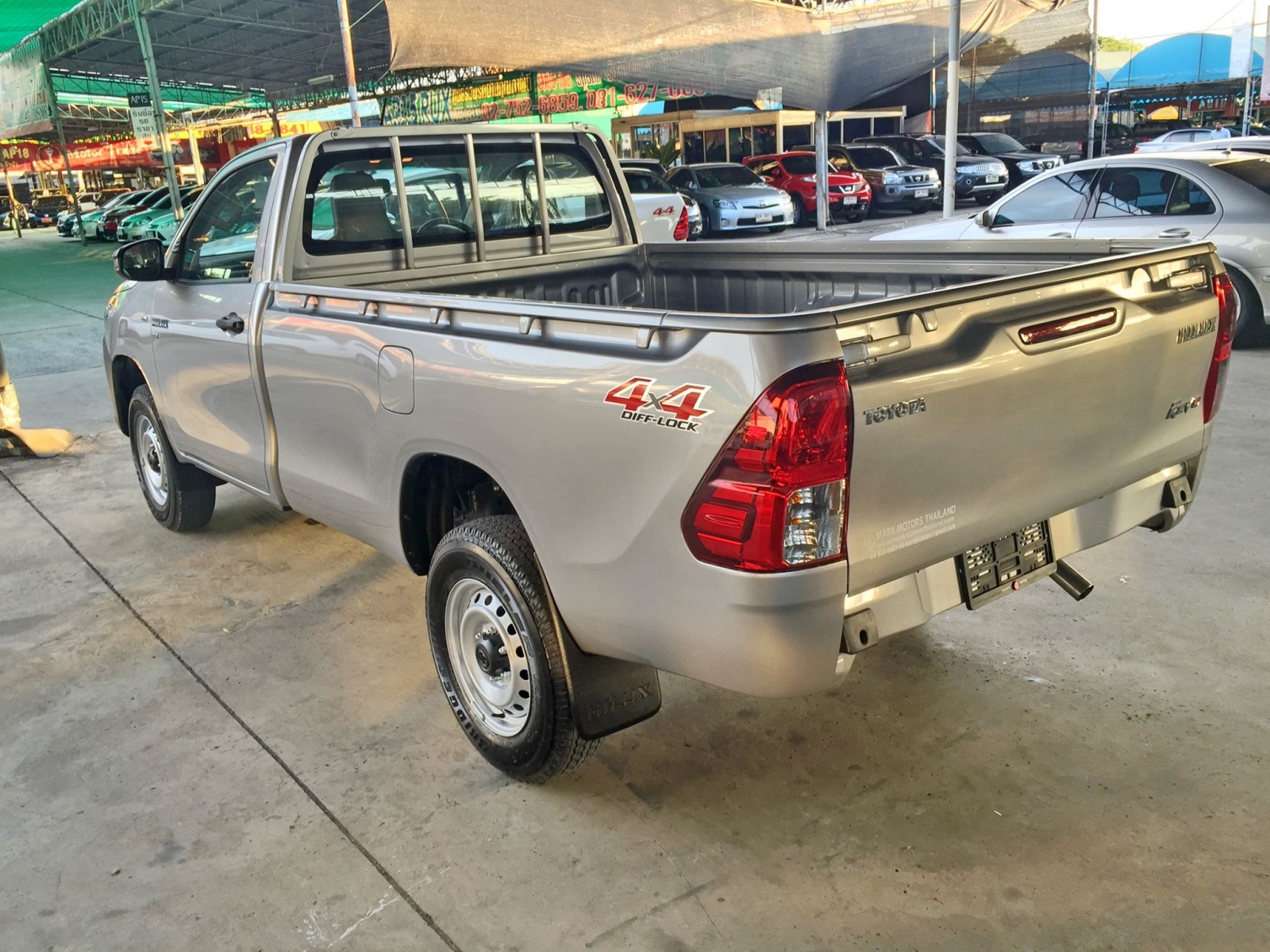

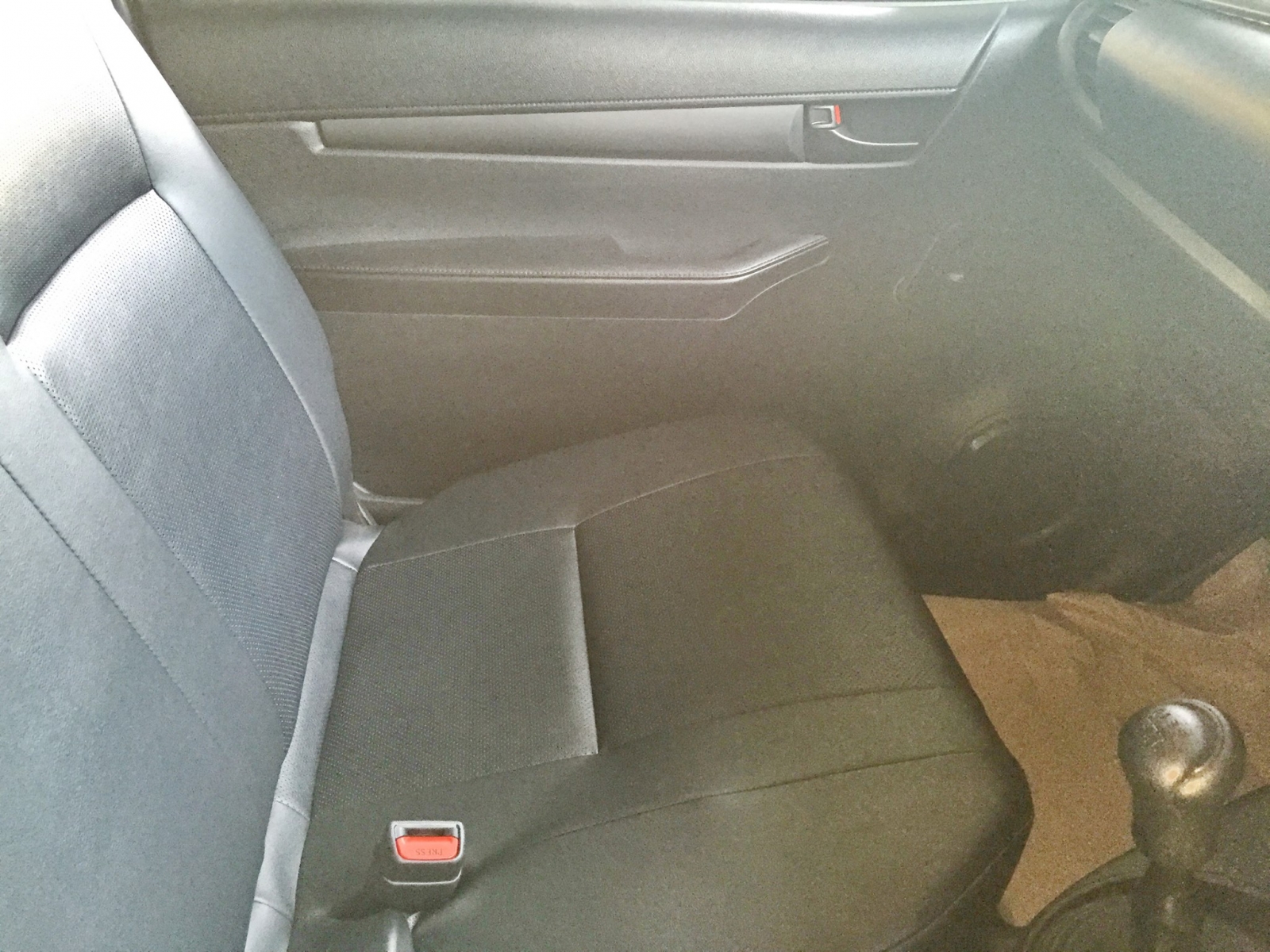

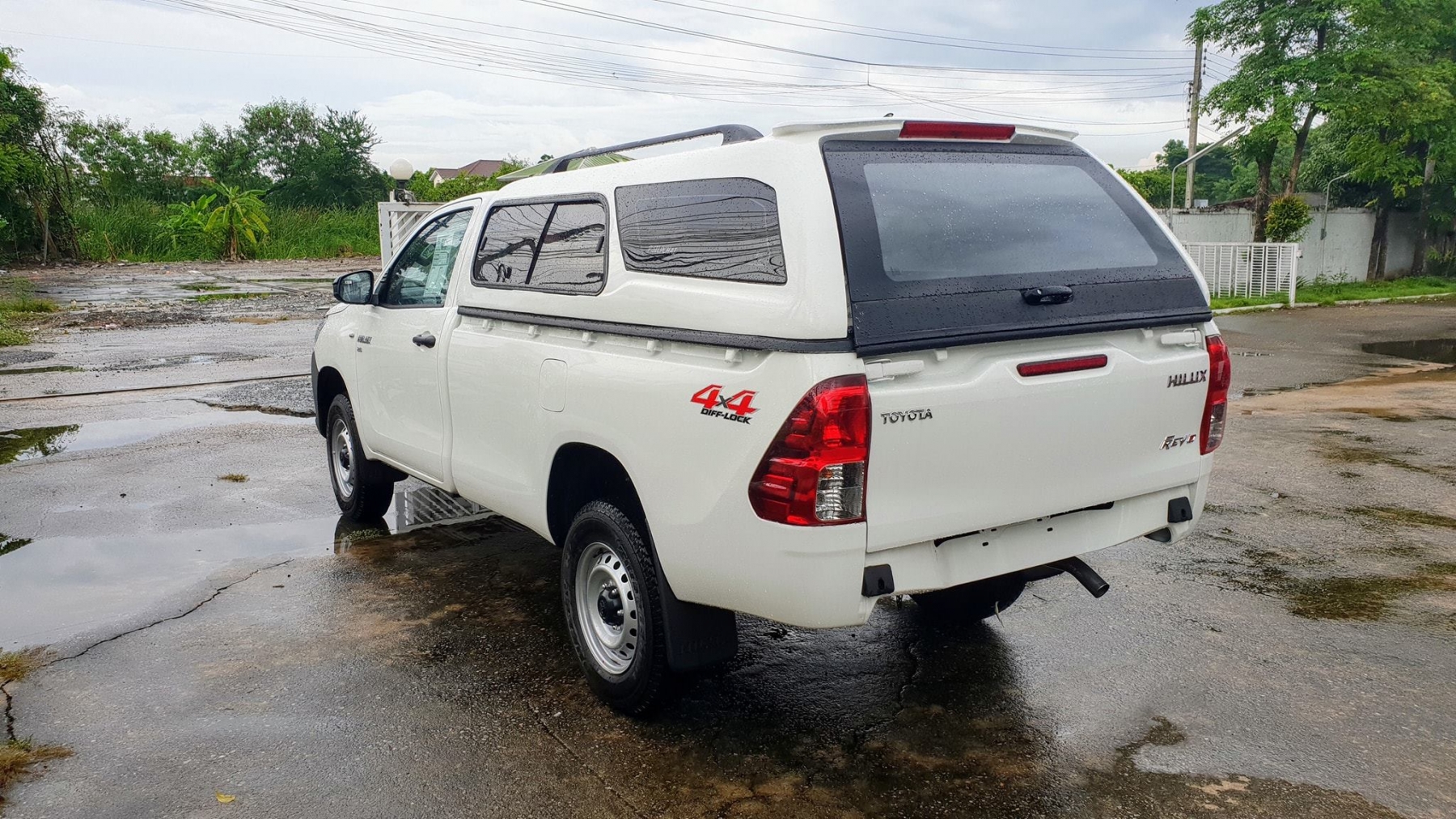

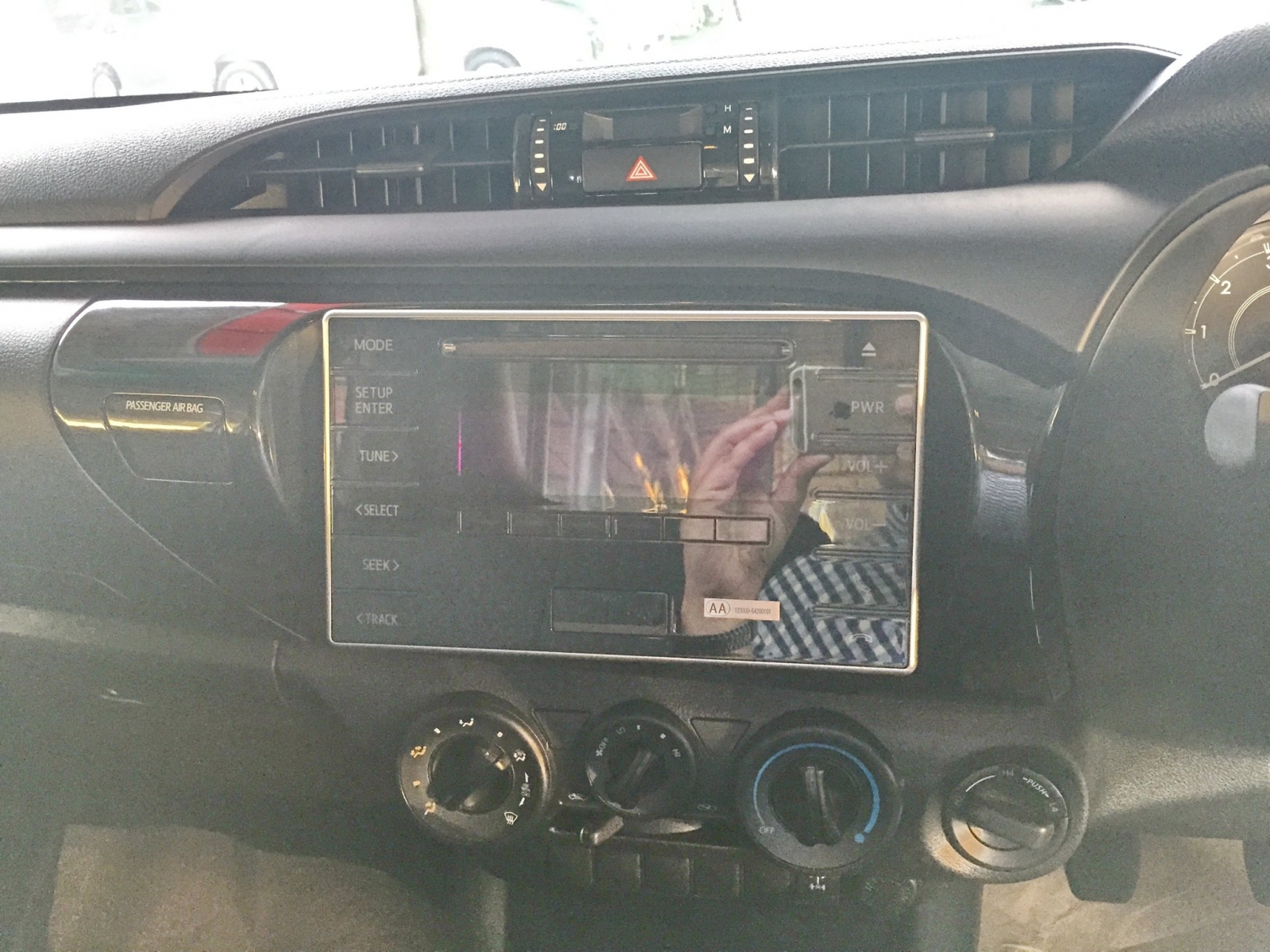

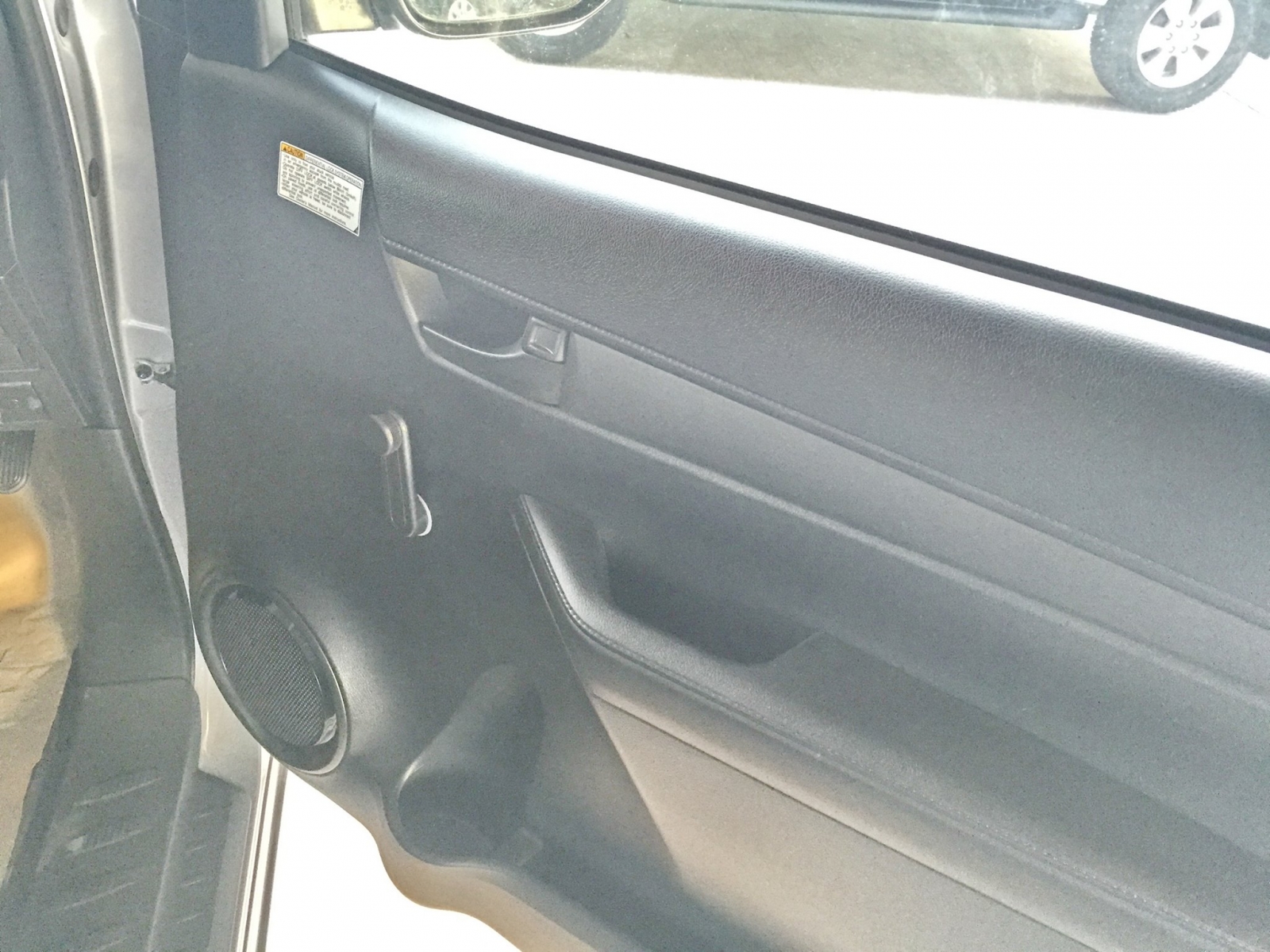

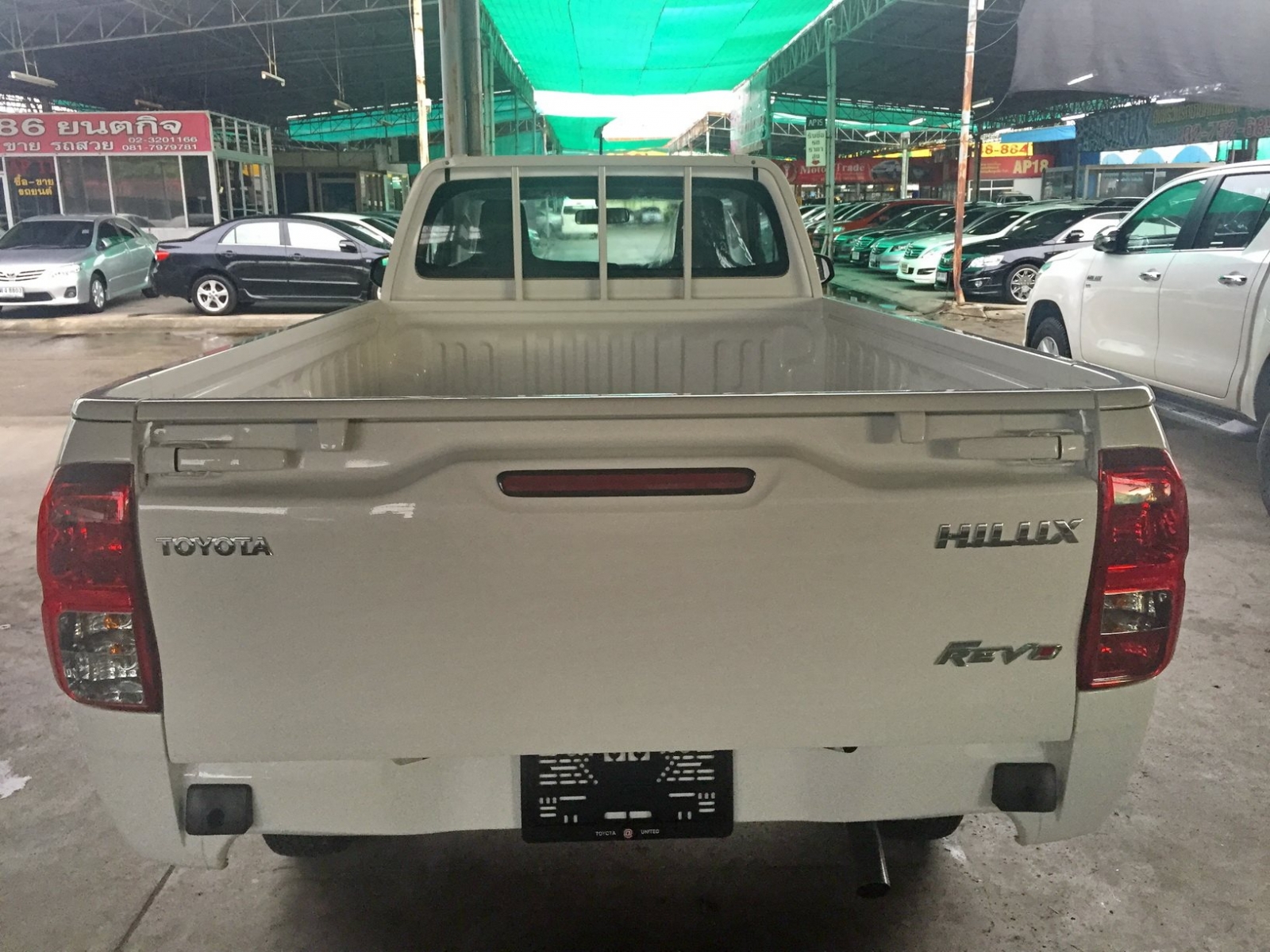

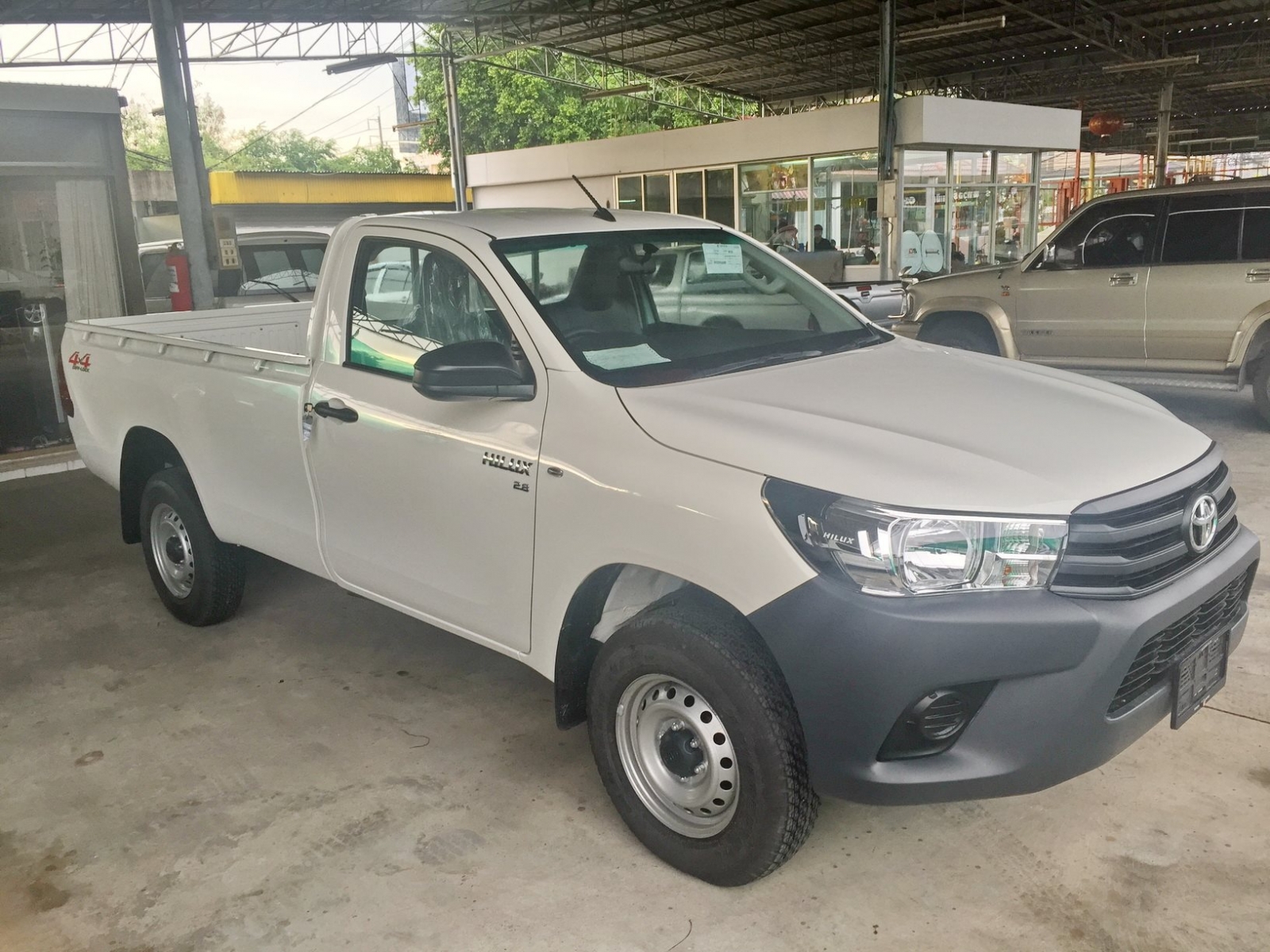

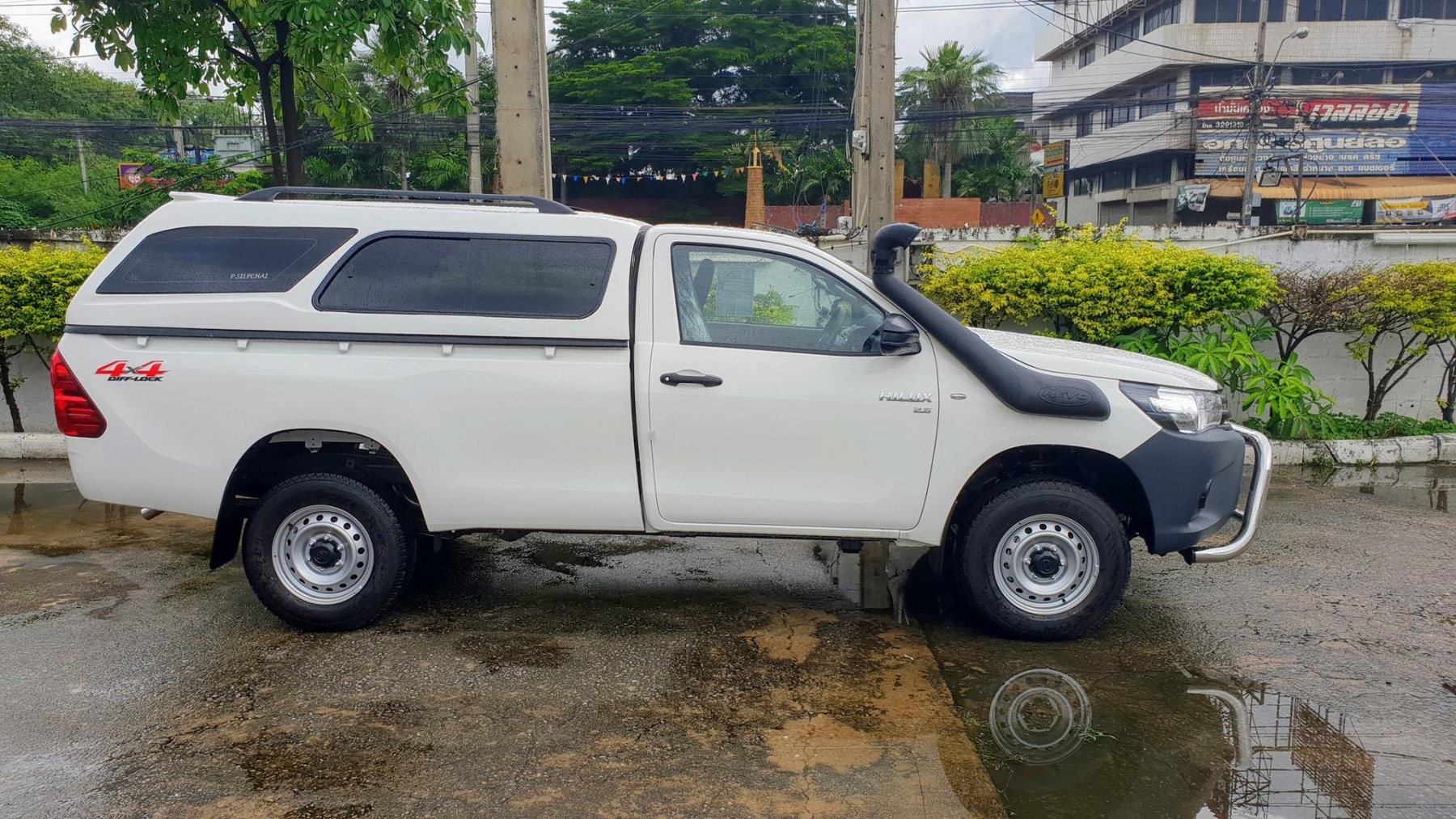

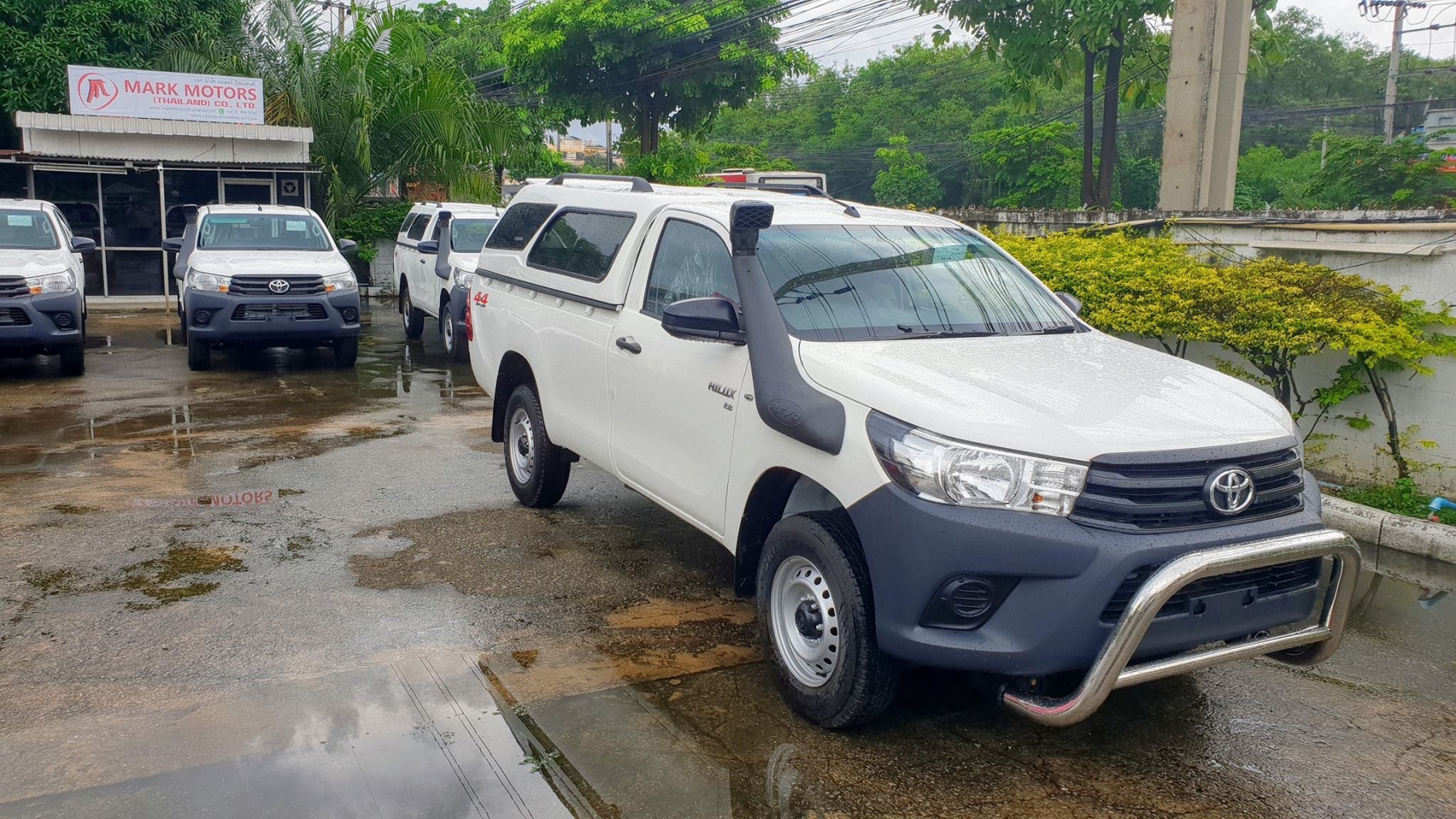

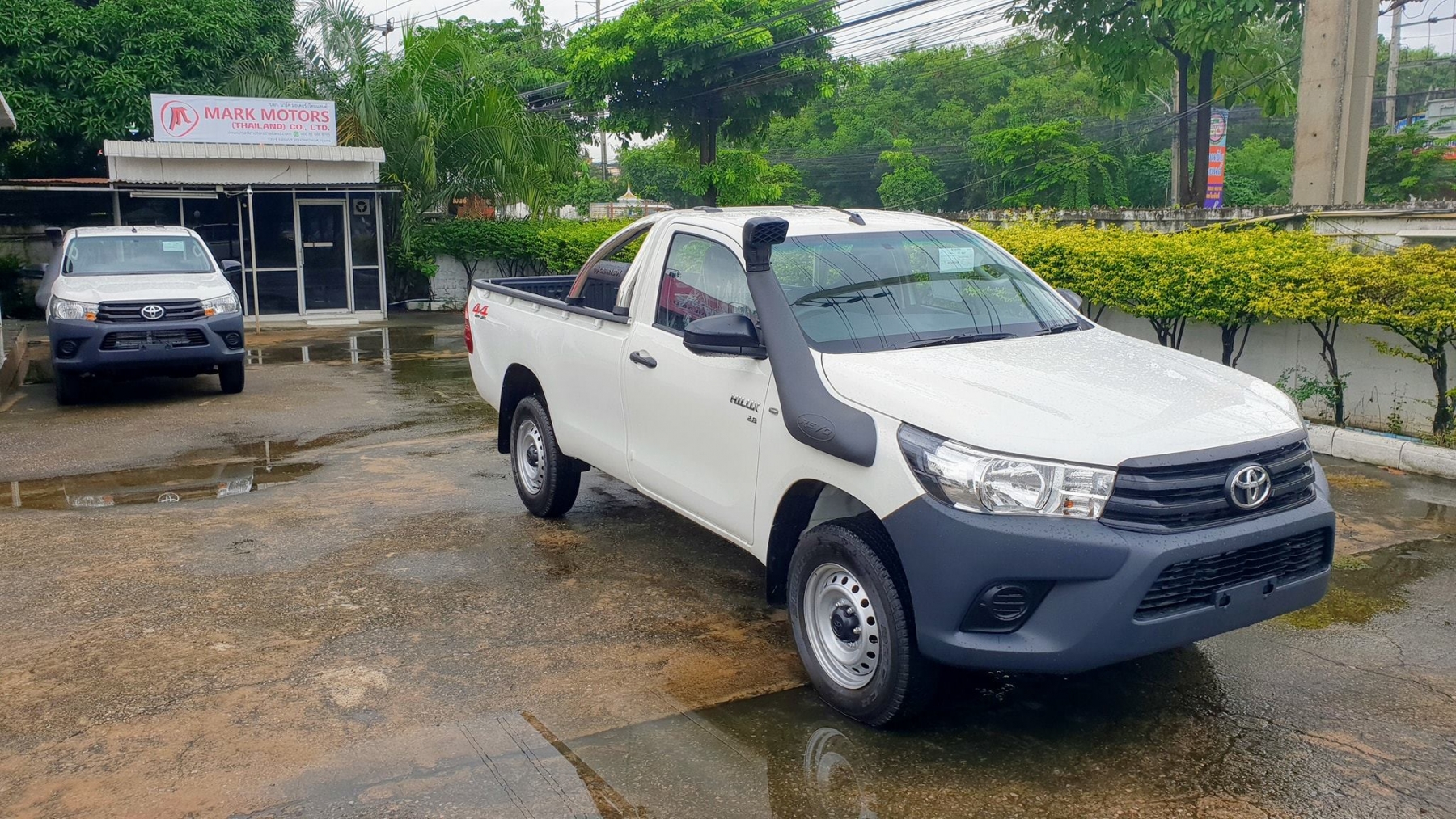

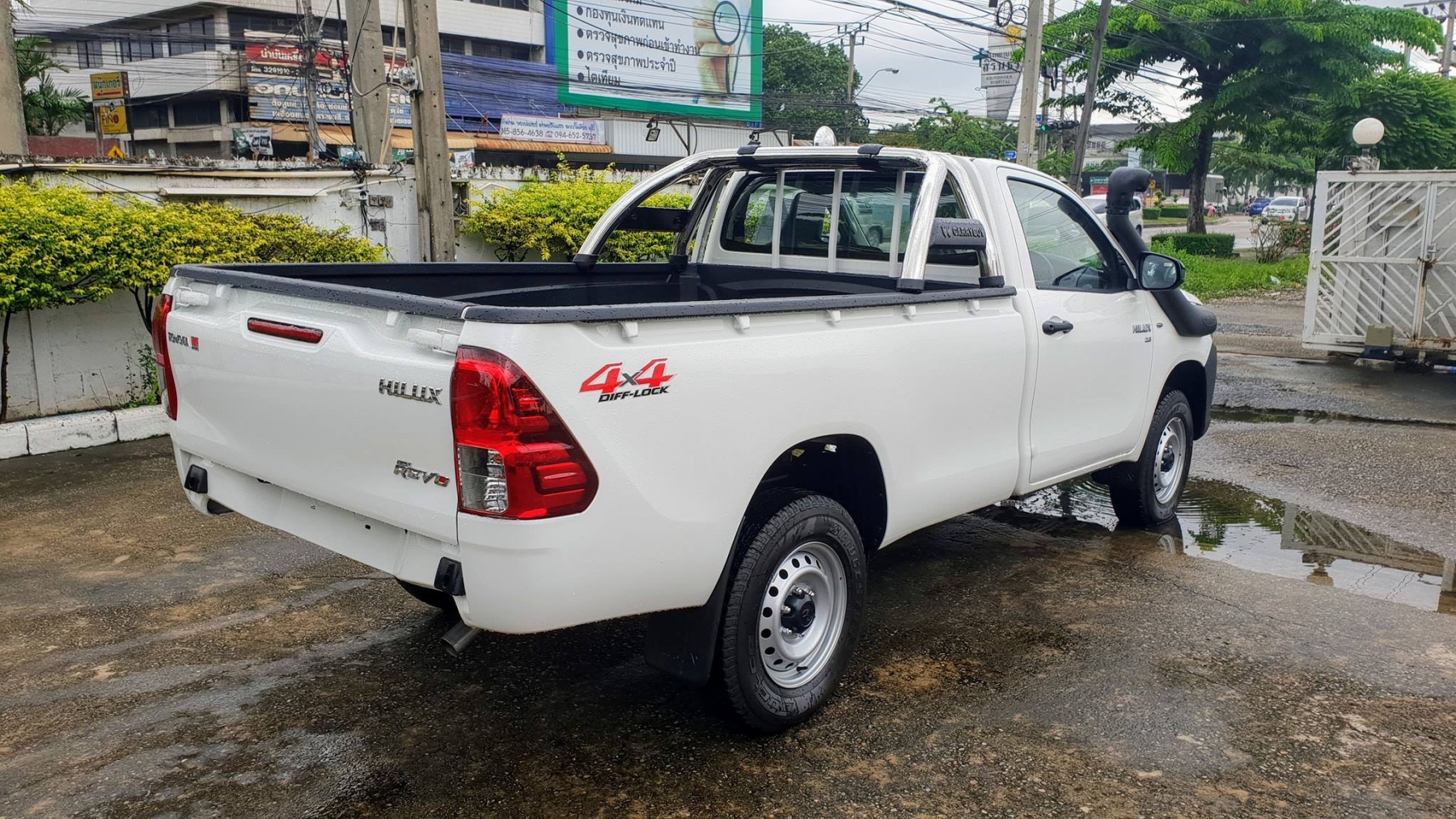

Some pictures of Toyota Hilux Revo 4×4 2.8 L Standard Single cabs at our showrooms

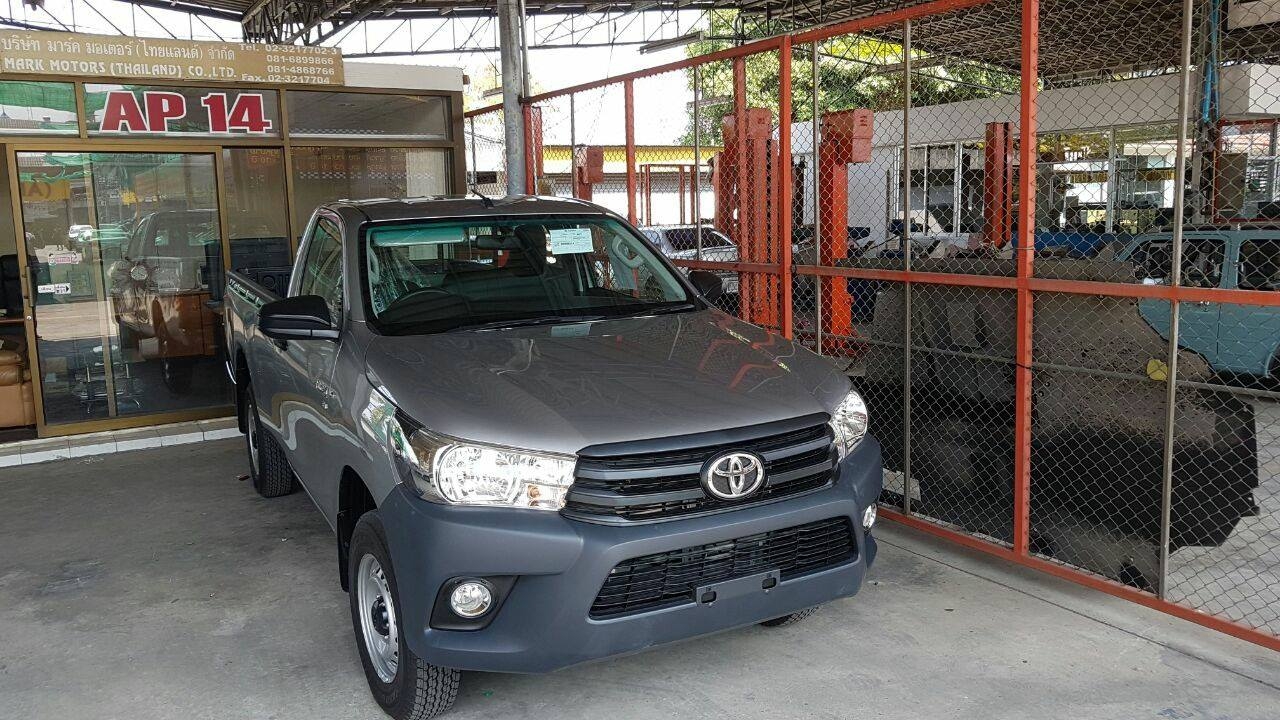

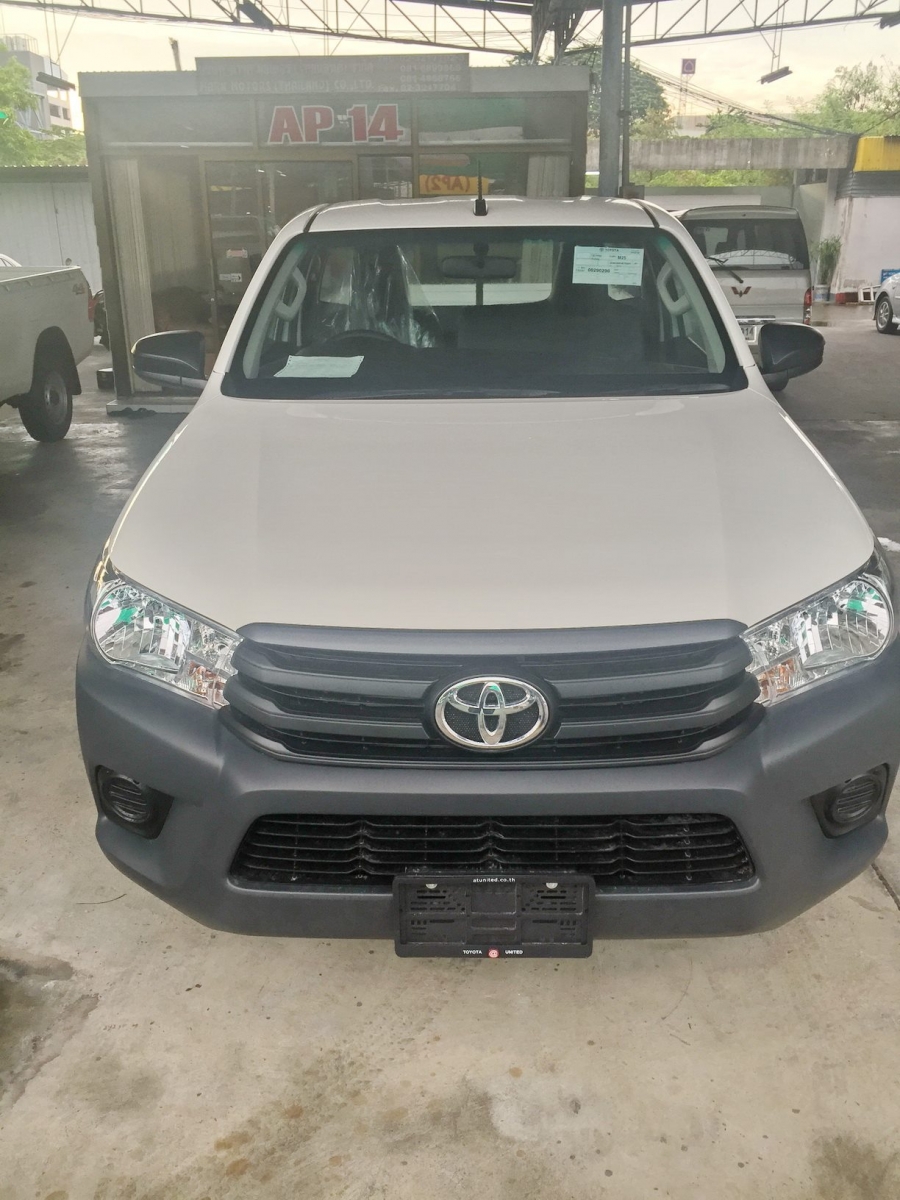

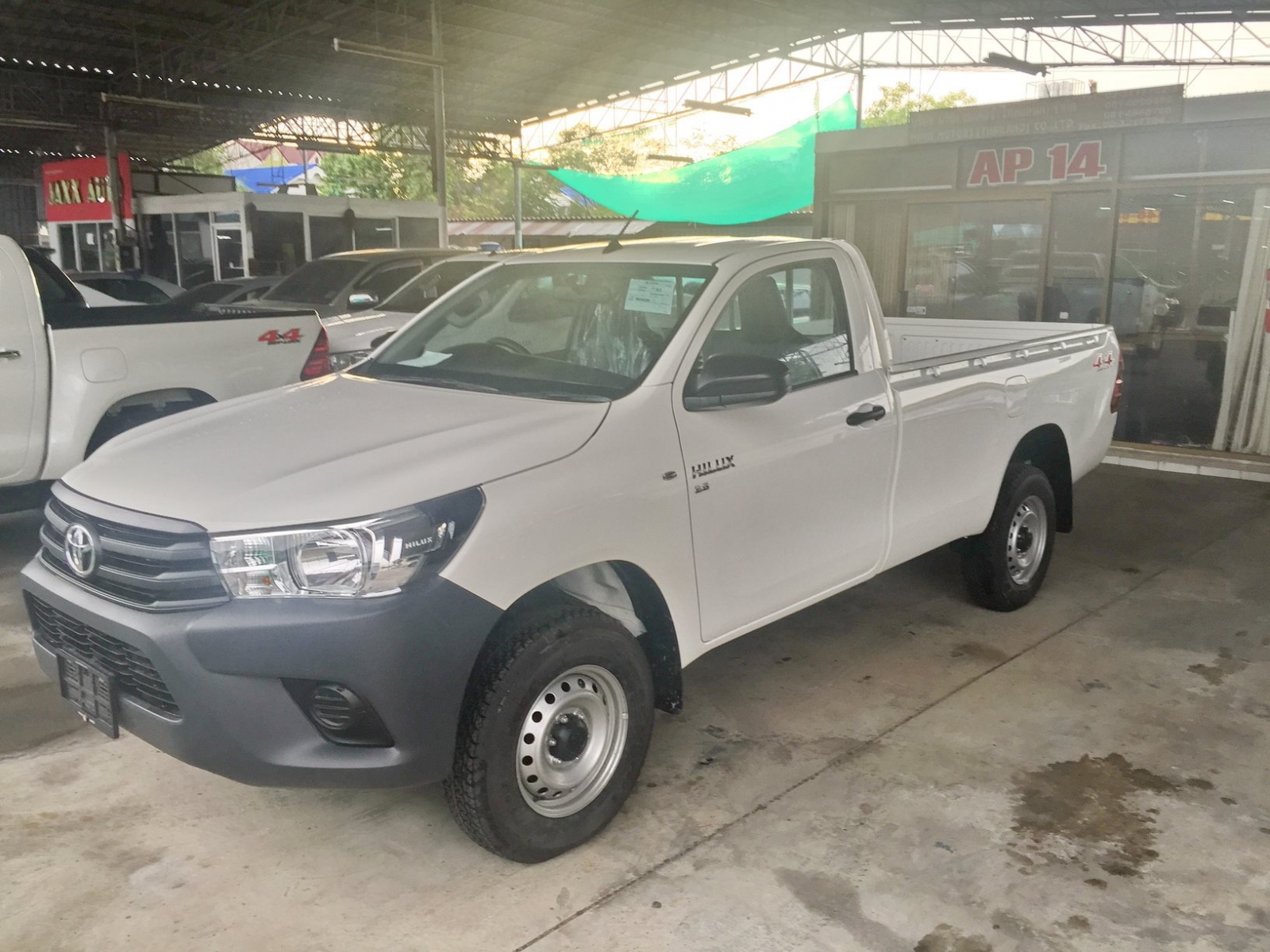

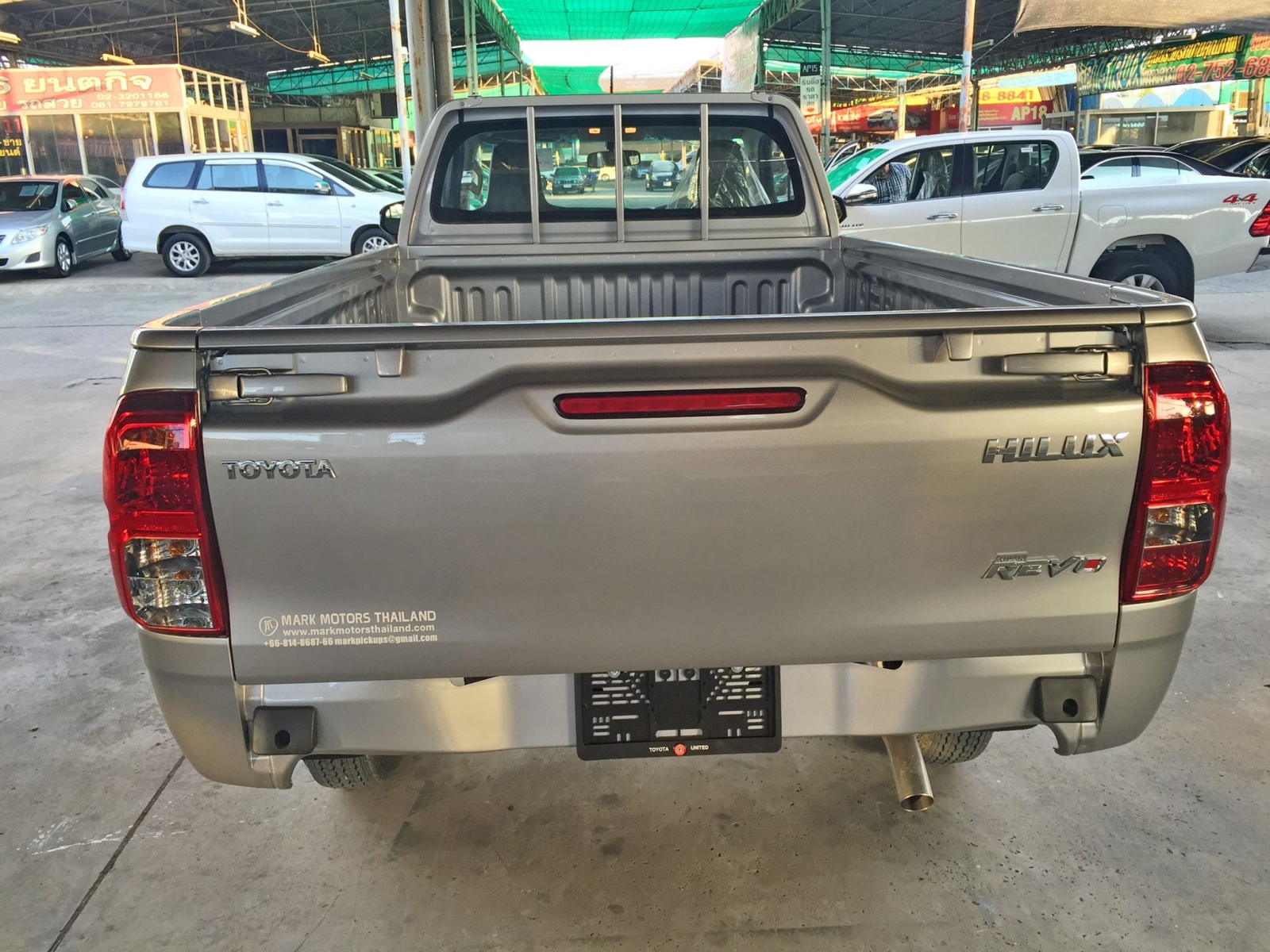

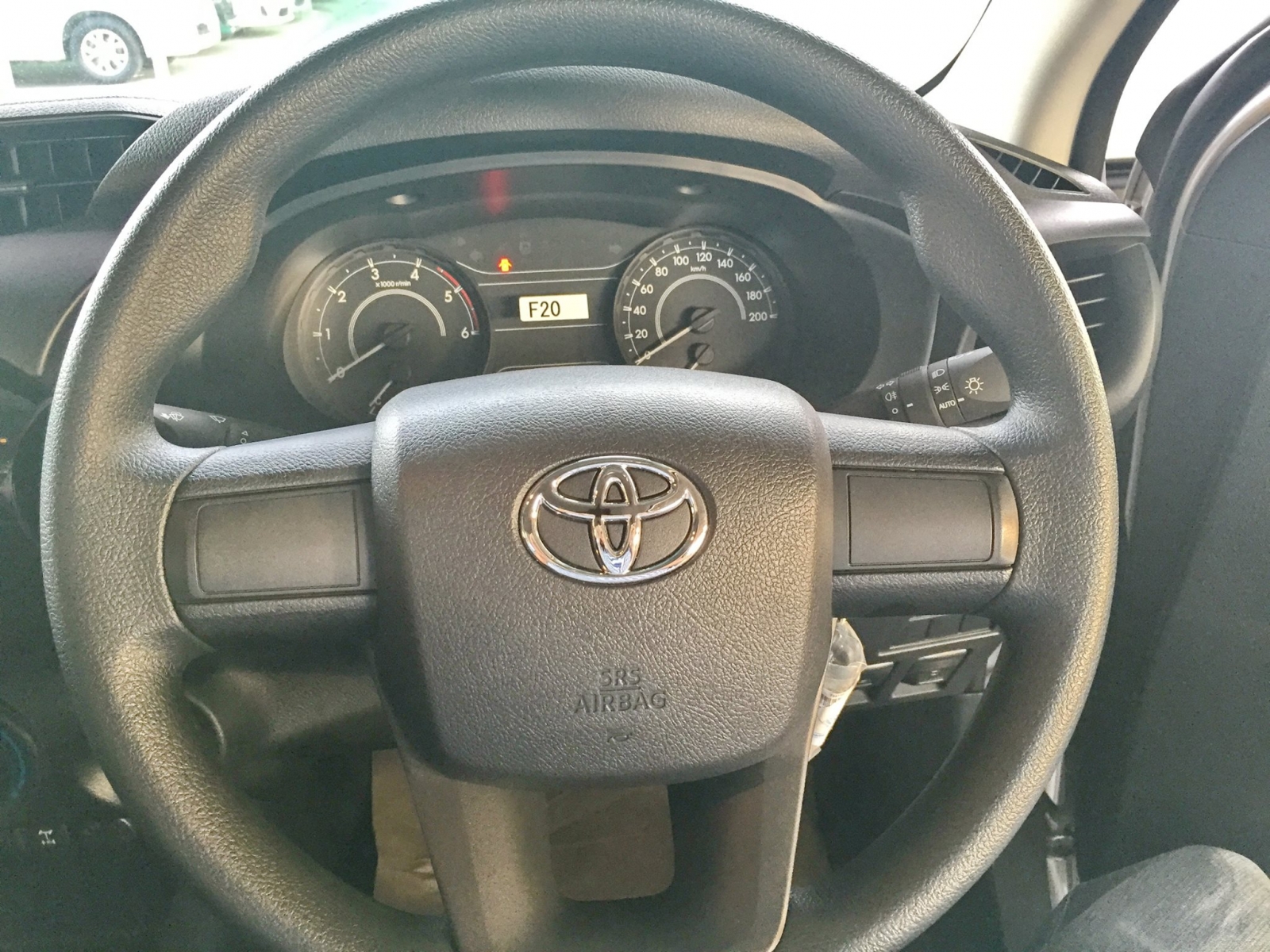

And some pics of Toyota Hilux Revo 4×2 2.4 L Diesel J grade basic model
no images were found
All Available models and grades of Toyota Hilux Revo Single Cab
- 4X2 2.4J Cab & Chassis
- 4X2 2.4J Cab & Chassis AT
- 4X2 2.7J Petrol
- 4X2 2.4J
- 4X2 2.4J AT
- 4X2 2.4J Plus Short Wheelbase
- 4X2 2.8J Plus
- 4X4 2.8J
Specifications of the 2.8 L 4×4 Revo Single Cab model (Most Popular Export)
Important Note: The below specs are subject to change without prior notice from Toyota Thailand. For up to date specs, please contact us
| Exterior |
| Front Grill | Black |
| Front Bumper | Black |
| Headlight | Halogen Multi
Reflector |
| Windshield Glass | Laminated with
Tint |
| Side Mirror | Black,
Electrical Adjust |
| Door Handle | Black |
| Mudguard | Front and
Rear |
| Front Rain Wiper | 3 Step
Adjustable |
| Interior
and Convenience |
| Interior Color | Black |
| Seat Type | Long Bench
60/40 Foldable |
| Seat’s Material / Color | PVC /
Black |
| Adjustable Seat | No |
| Distance Adjustment Seat | Driver |
| Leanable Seat | Front Seat |
| Front Console | Black
Metallic |
| Door Panel | Black
Fabric |
| Door Panel Control Switch | Black |
| Sun Visor (Driver) | With Namecard
Holder |
| Sun Visor (Passenger) | Yes |
| Interior Handle | 3
Positions |
| Steering Wheel’s Material | Urethane |
| Adjustable Steering Wheel | Tilt &
Telescopic |
| Gear’s Material | Urethane |
| Parking Brake | Black |
| Illumination System | With Reading
Lamp |
| Keyhold Light | Yes |
| Rear Mirror | Automatic
AntiNoglare |
| Electric Windows | Automatic with
JamNoprotection for Driver |
| Central Lock with Speed Auto Lock | With System’s
Battery Backup |
| Remote Control | Jack Knife
Key |
| Starting System | Standard
Key |
| Drive Mode Switch (Eco/Power) | No |
| Air Conditioner with 5 AirNoflow Directions | Manual |
| Upper Box | Yes |
| Lower Box | With Key
Lock |
| Console Box | No |
| Door Panel Storage | With Bottle
Holder |
| Glasses Console Box | Yes |
| Glass Holder | Yes |
| Power Port DC 12V. Outlet | 1 Position |
| Audio
System and Connection |
| USB, FM/AM and CD |
Yes
|
| Bluetooth | For HandNofree
and Music Player |
| Speakers | 2
Positions |
| Antenna | Short |
| Safety |
| LED High Mount Stop Lamp |
Yes
|
| Rear Window Defogger | No |
| Fuel Tank Cap | Fuel Cap Lever
at Driver Seat |
| AntiNoLock Braking System (ABS)/Electronic Brake Force
Distribution (EBD) |
Yes
|
| Crash Body Safety GOA |
Yes
|
| Side Bar Protection |
Yes
|
| Seat Belt ELR 3 Points 2 Positions | With
Pretensioner & Force Limiter |
| Seat Belt NR 2 Points 1 Position |
Yes
|
| SRS Airbag | Driver,
Passenger and Knee Driver |
| Dimension |
| Overall Length x Width x Height (mm.) | 5,270 x 1,800 x
1,795 |
| Wheelbase (mm.) | 3,085 |
| Tread Front/Rear (mm.) | 1,505 x
1,520 |
| Min. Ground Clearance (mm.) | 196 |
| Deck Inside Length x Width x Height (mm.) | 2,315 x 1,575 x
480 |

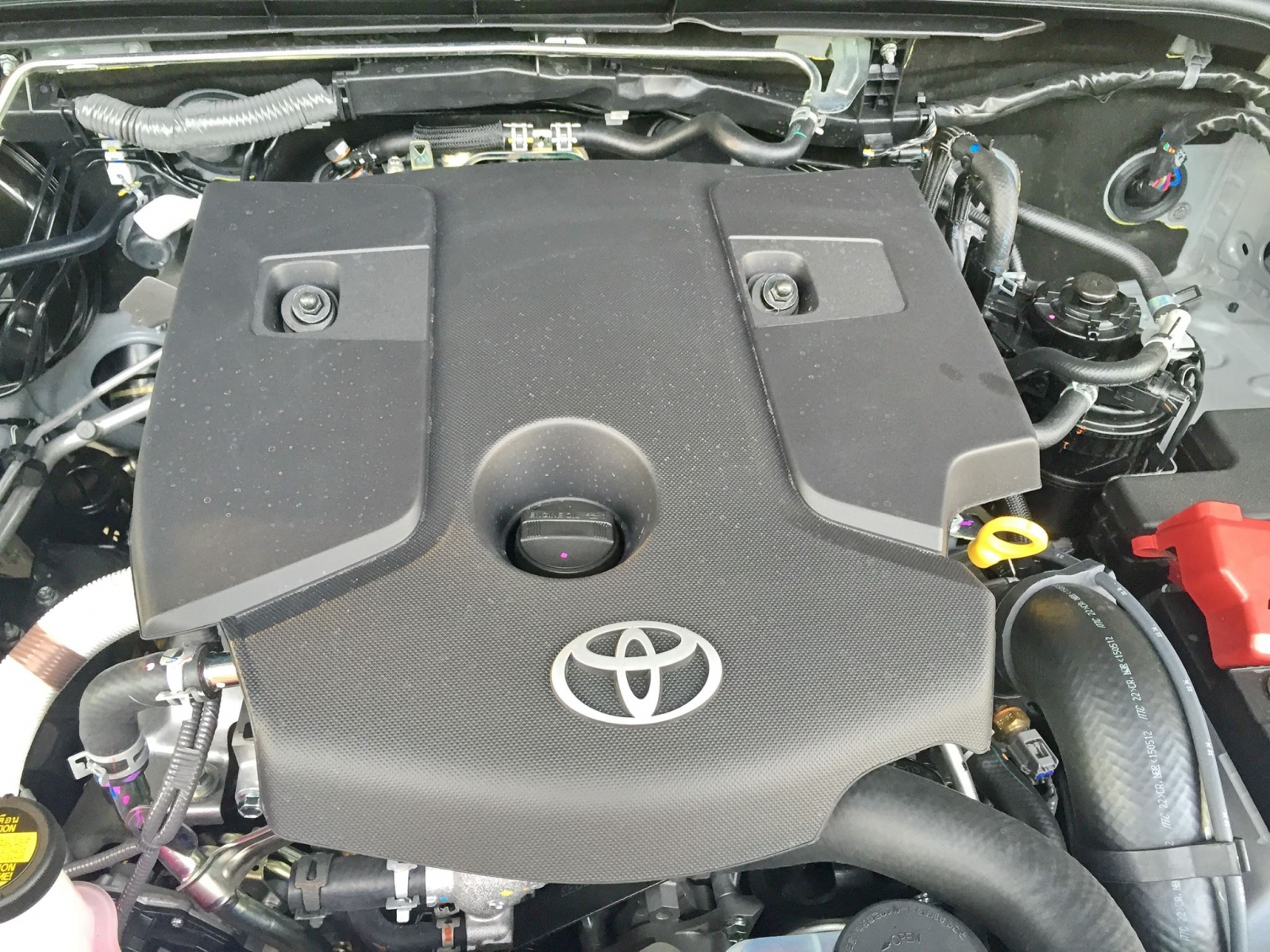

| Engine |
| Model | 1GDNoFTV
(High) |
| Type | 4 cyl 16 valve
DOHC VN Turbo Intercooler |
| Displacement (cc.) | 2,755 |
| Bore x Stroke (mm.) | 92.0 x
103.6 |
| Compression Ratio | 15.6 : 1 |
| Max. Power [kW(PS)/rpm] | 130(177)/3,400 |
| Max. Power (Nm/rpm) | 420/1,400No2,600 |
| Fuel Supply System | Direct
Injection CommonNorail |
| Fuel Capacity (l.) | 80 |
| Fuel Type | Diesel |
| Transmission
and Chassis |
| Transmission | 4×4 with
Differential Lock |
| Transmission System | 6MT |
| Gear Ratio 1 | 4.784 |
| Gear Ratio 2 | 2.423 |
| Gear Ratio 3 | 1.443 |
| Gear Ratio 4 | 1 |
| Gear Ratio 5 | 0.826 |
| Gear Ratio 6 | 0.643 |
| Reverse Gear Ratio | 4.066 |
| Final Gear Ratio | 3.583 |
| Front Suspension | Double Wishbone
with Stabilizer |
| Rear Suspension | Rigid Type |
| Front Brake | Disc Brake /
Ventilated Disc |
| Rear Brake | Drum Brake |
| Steering System | Rack &
Pinion with Power Steering |
| Min. Turning Radius (m.) | 6.1 |
| Tyre | 205 R16C |
| Wheel | Steel Wheel 16”
with Hub Cab |
| Spare Tire | Steel Wheel 205
R16C |
