Top Thailand Toyota Hilux Revo Single Cab Exporter 4×4 and 4×2 Diesel and Gasoline models

For the first time in its Thailand history, Toyota released the 4WD grade in Revo Single cab configuration. Before that, Single cabs were always released in 2WD only. By having a 4by4 model, the single cab sales more than tripled as there was a huge demand for powerful single cabs both locally and globally. We never sold this much single cabs before. Now unsurprising it’s our third largest export. If you are looking to import it, inquire us right away for your purchase.

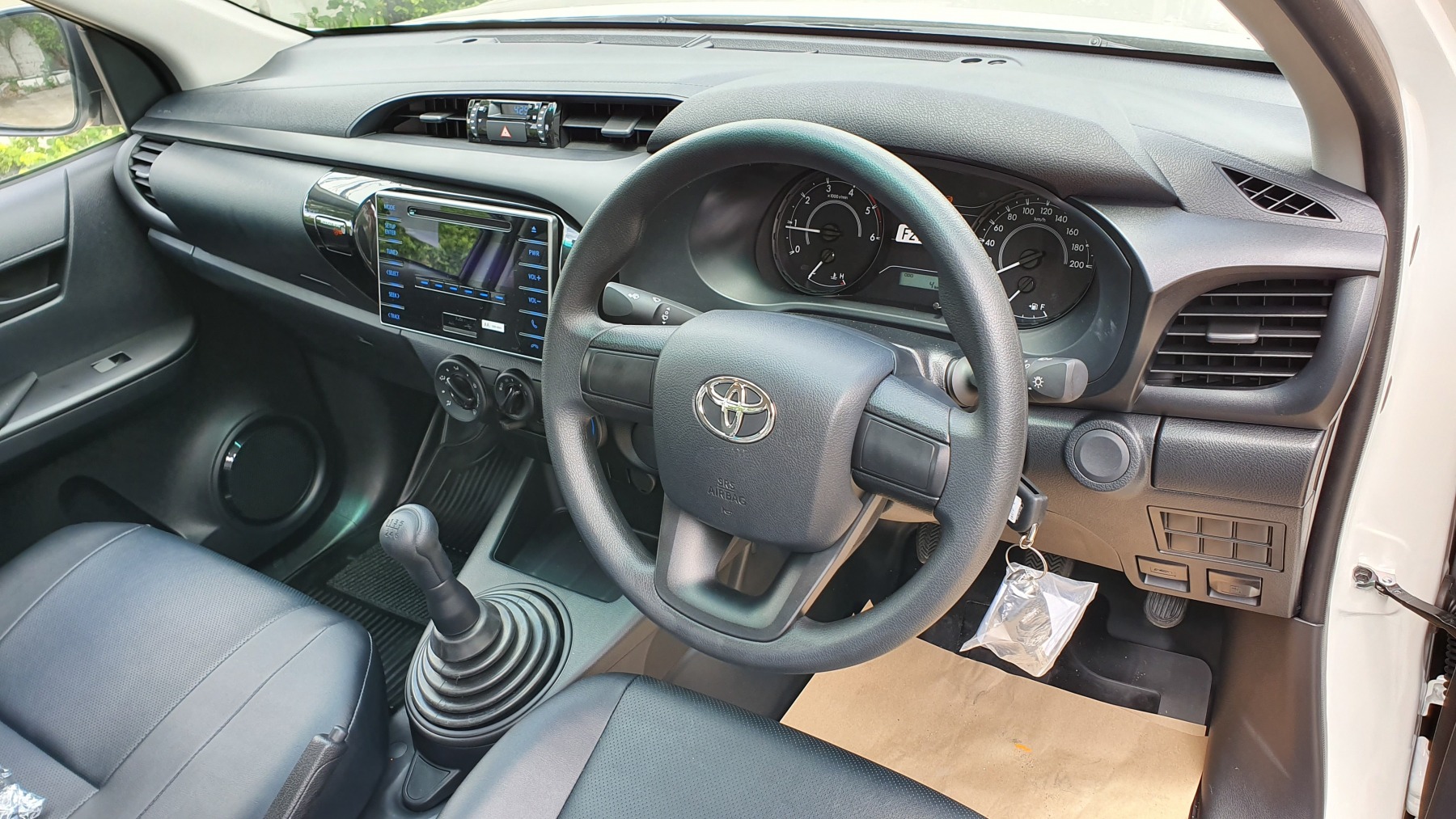

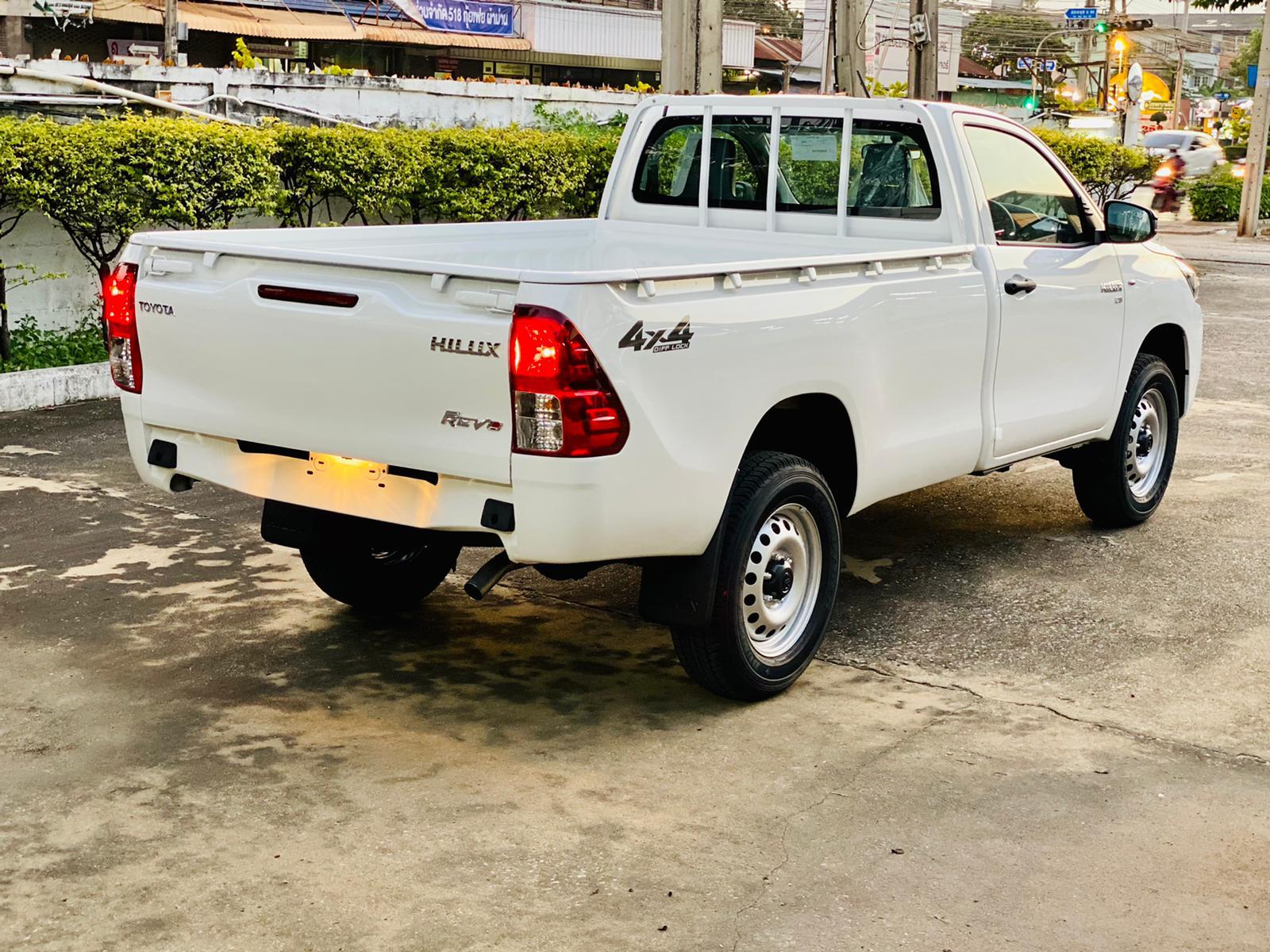

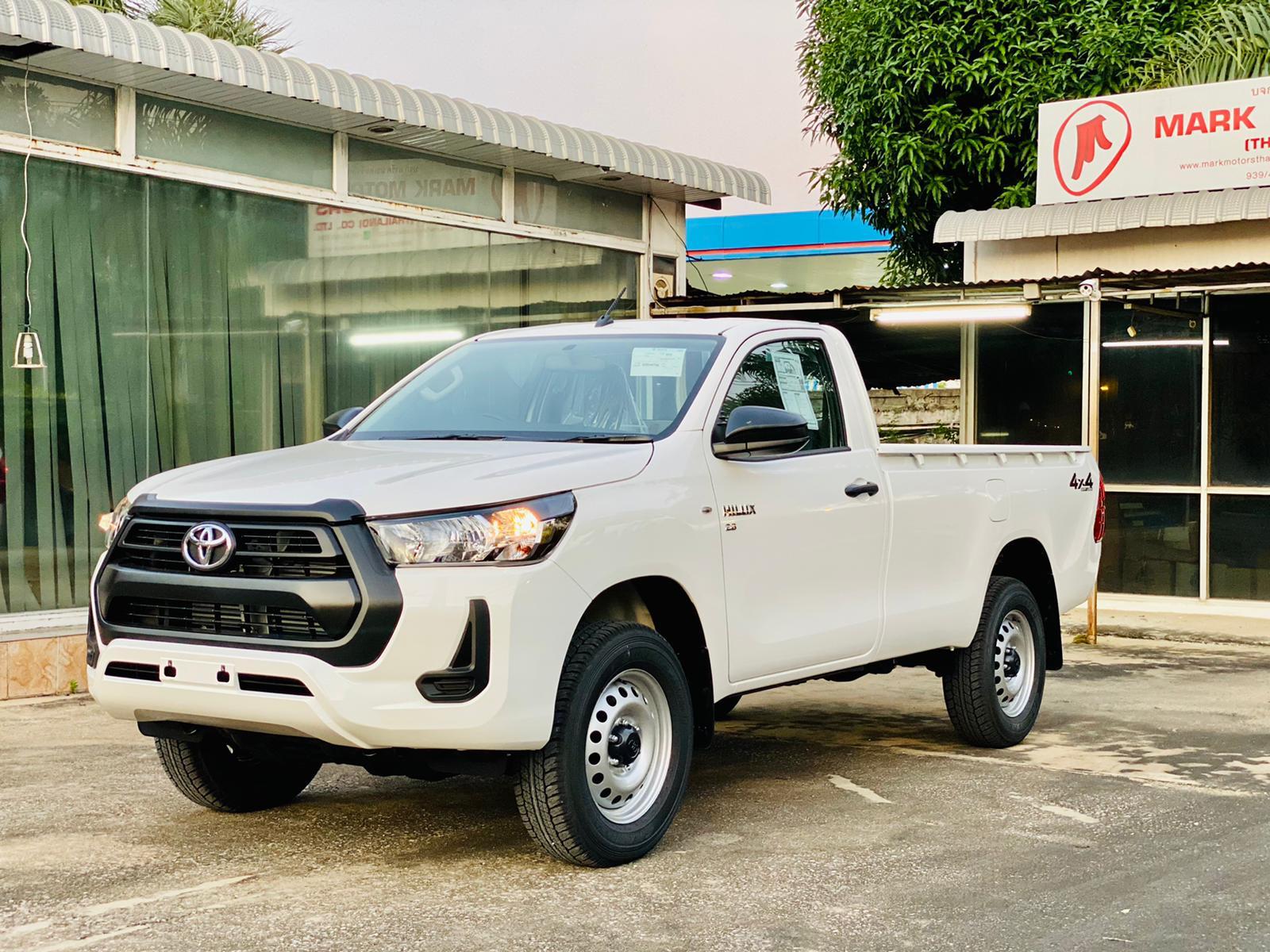

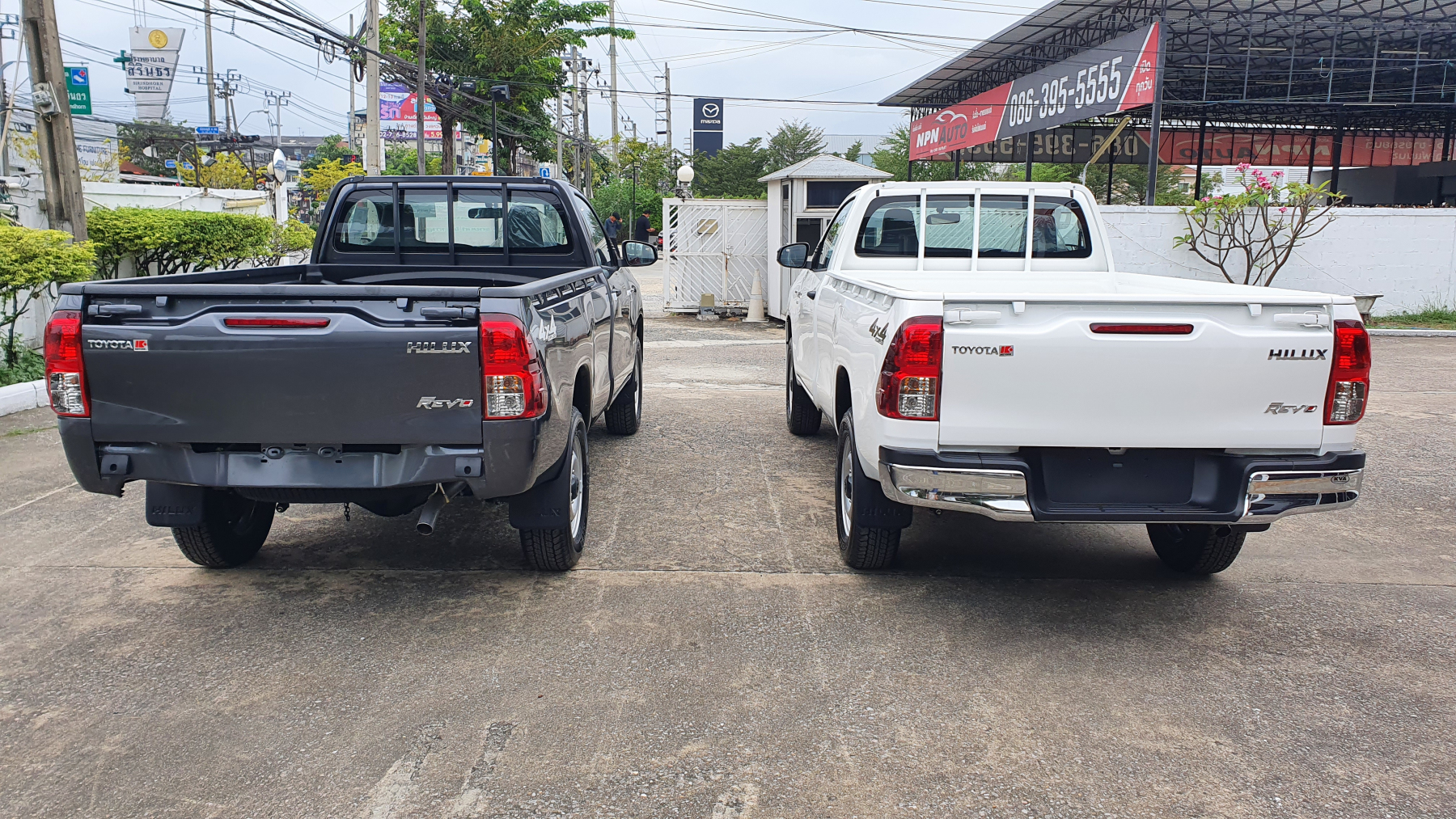

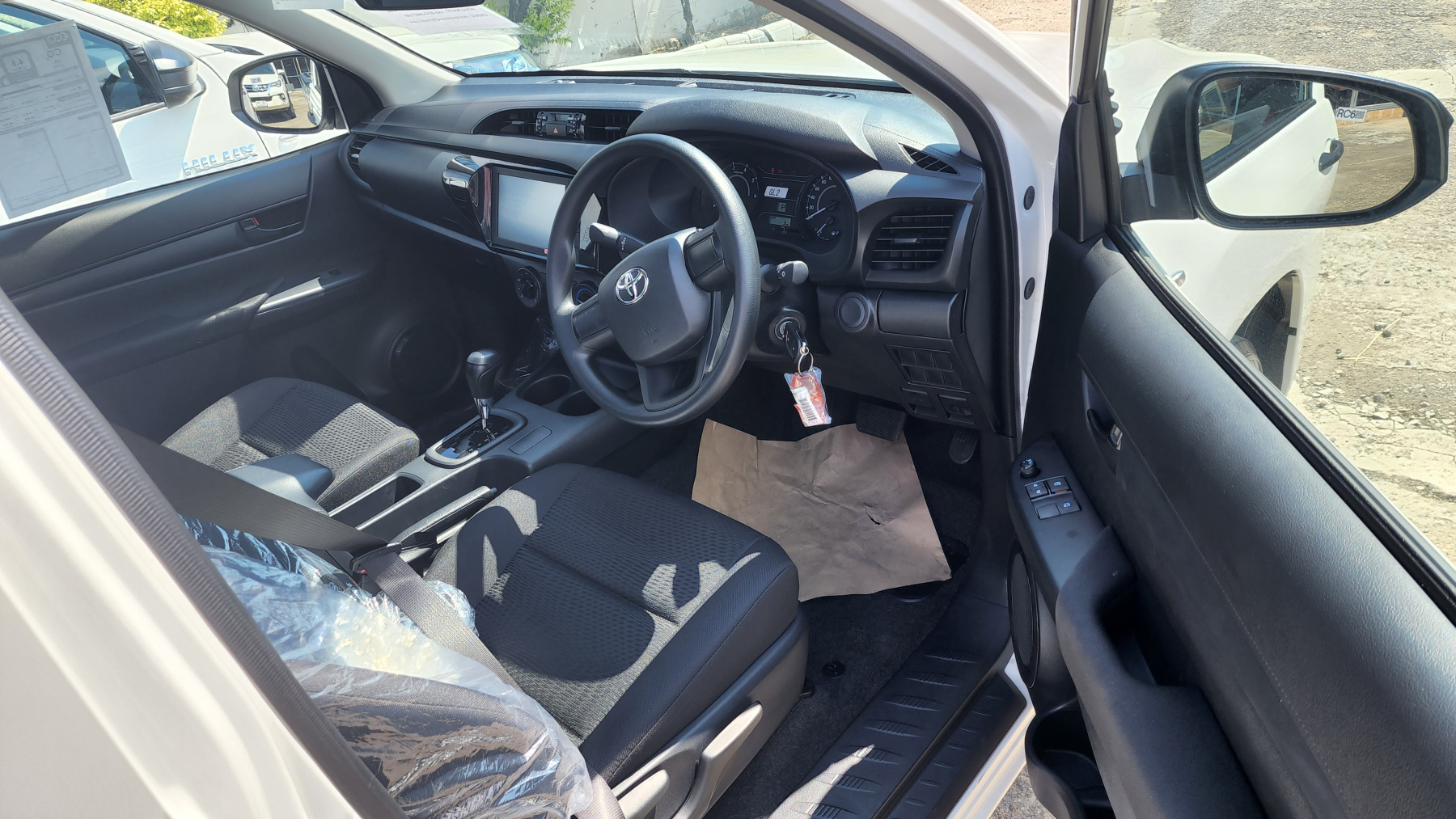

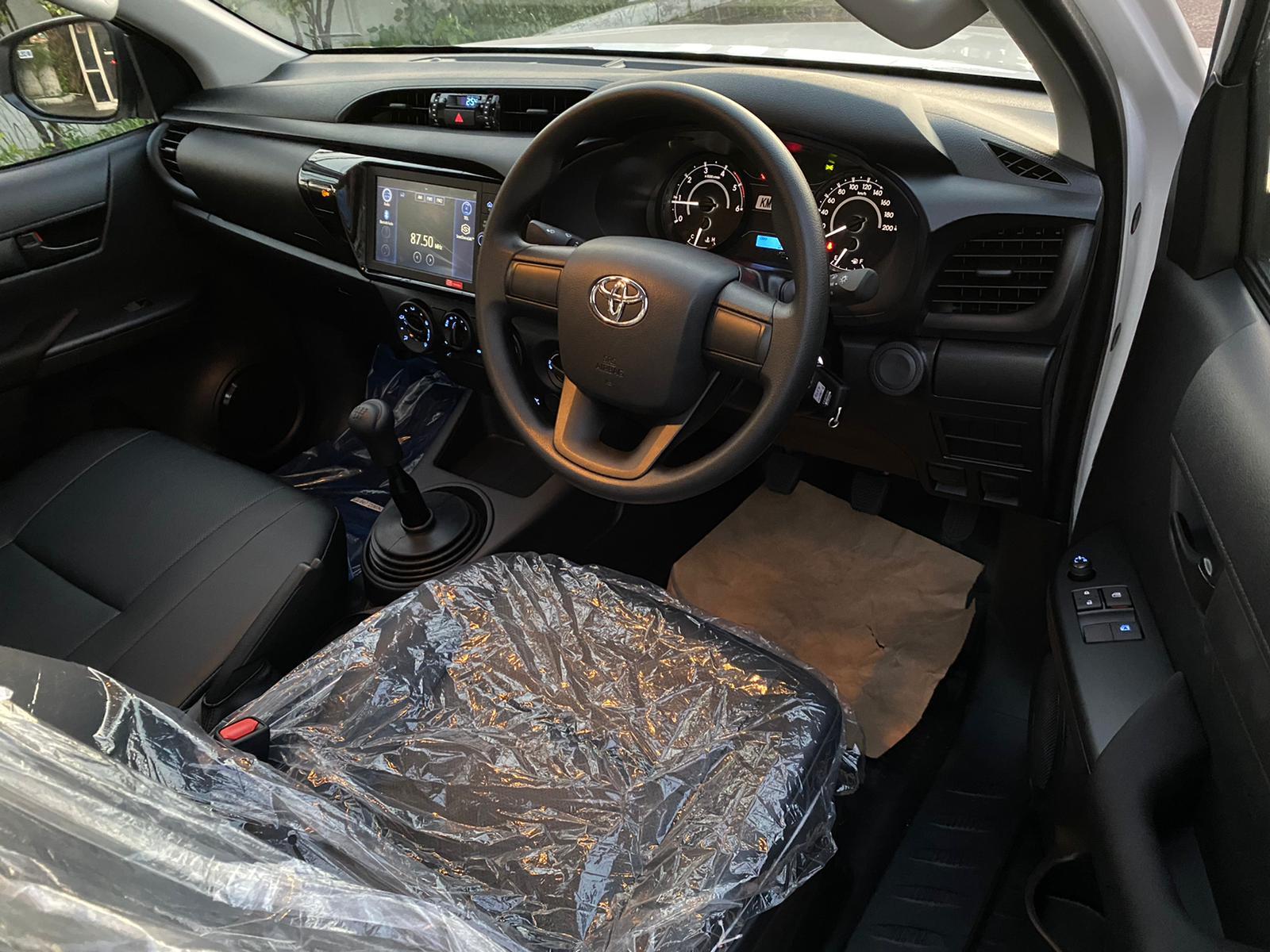

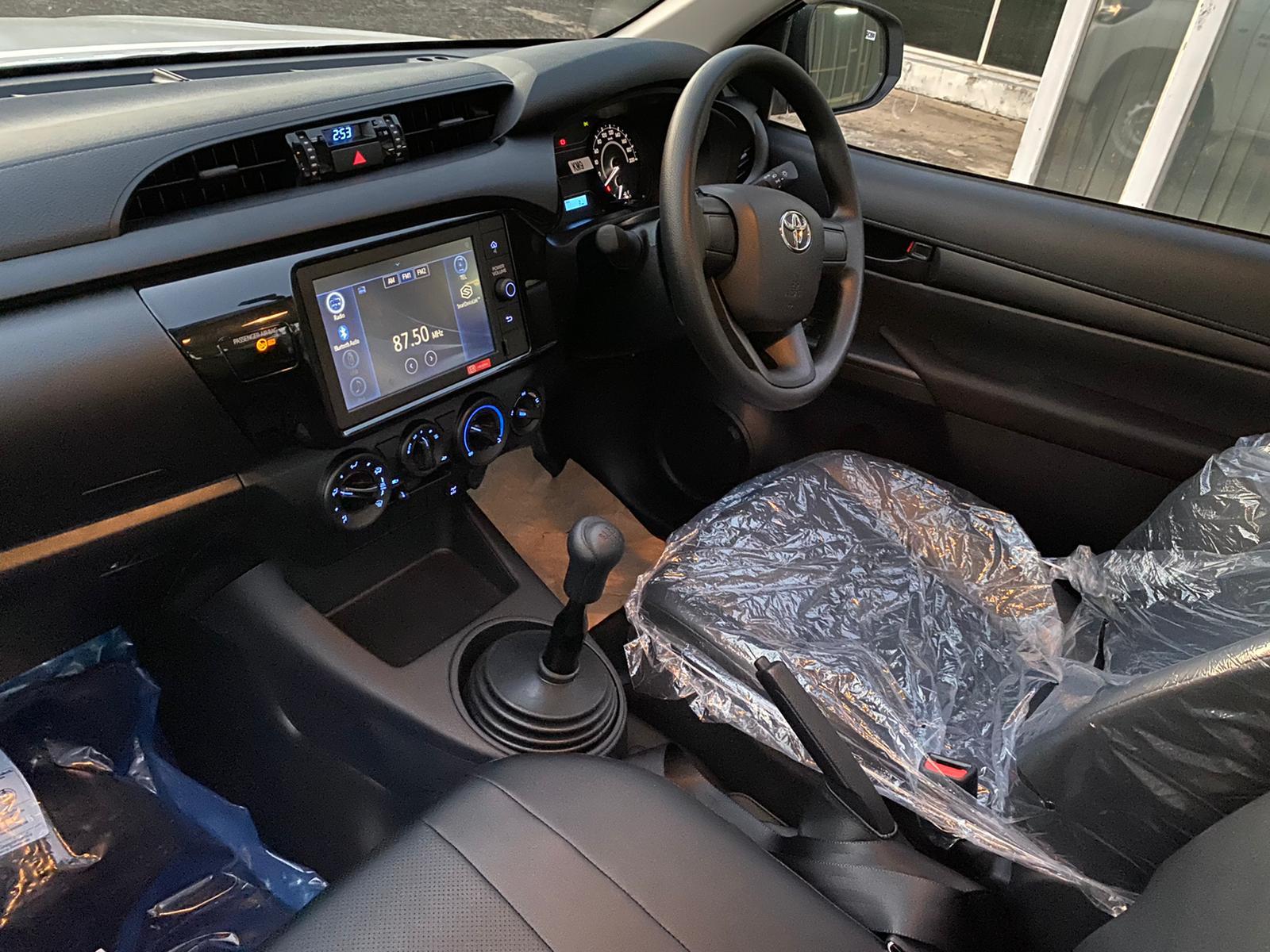

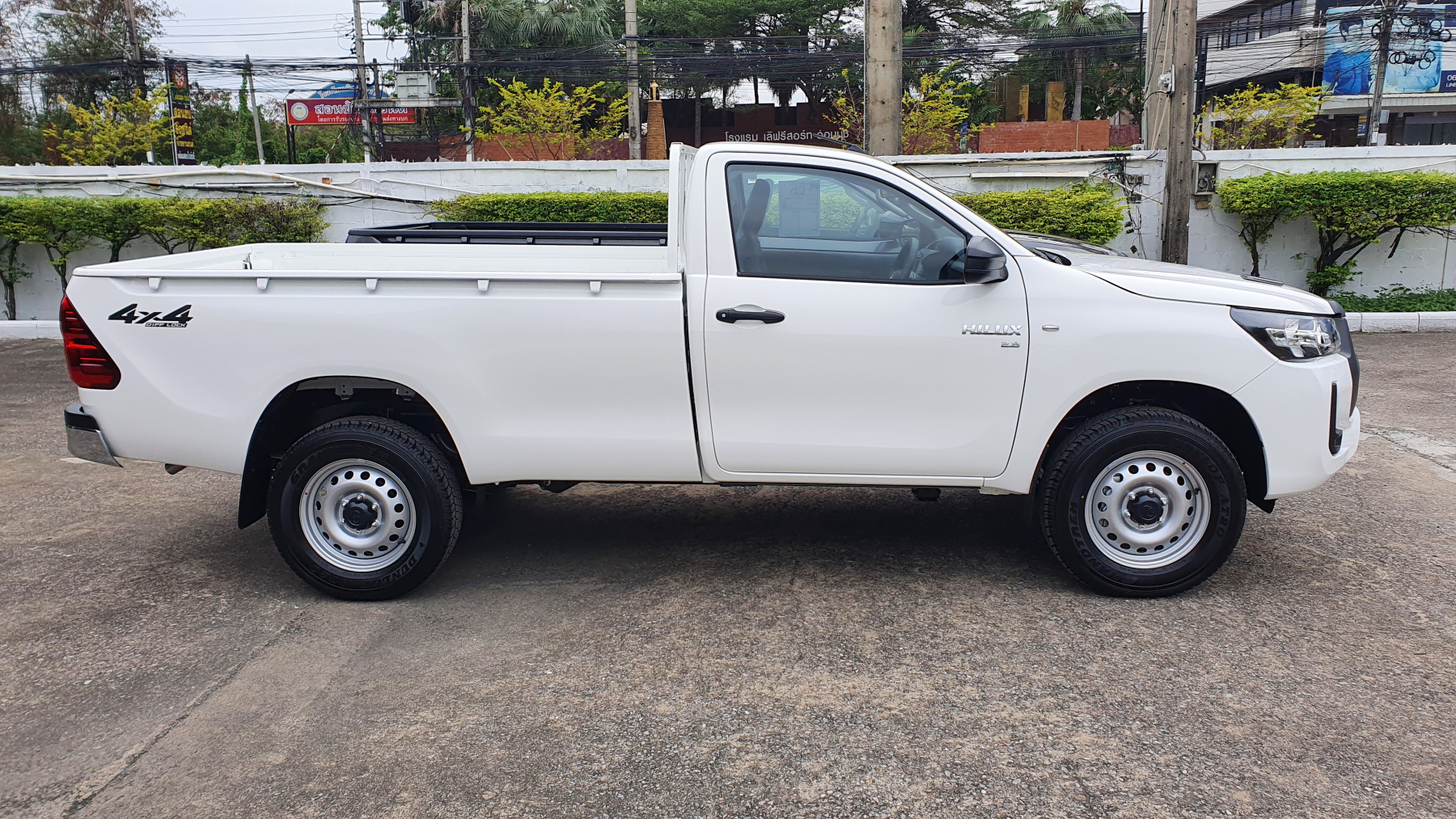

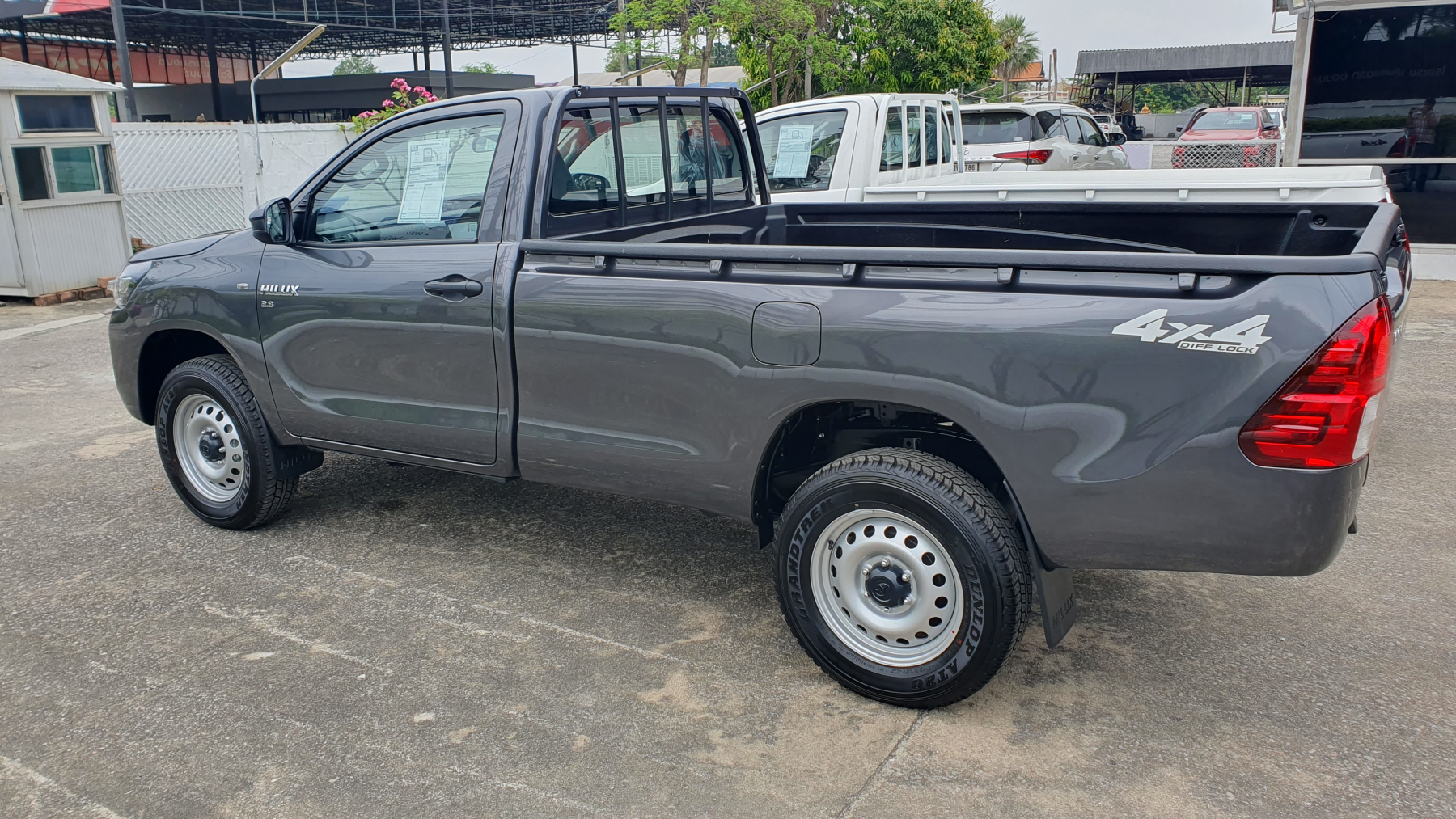

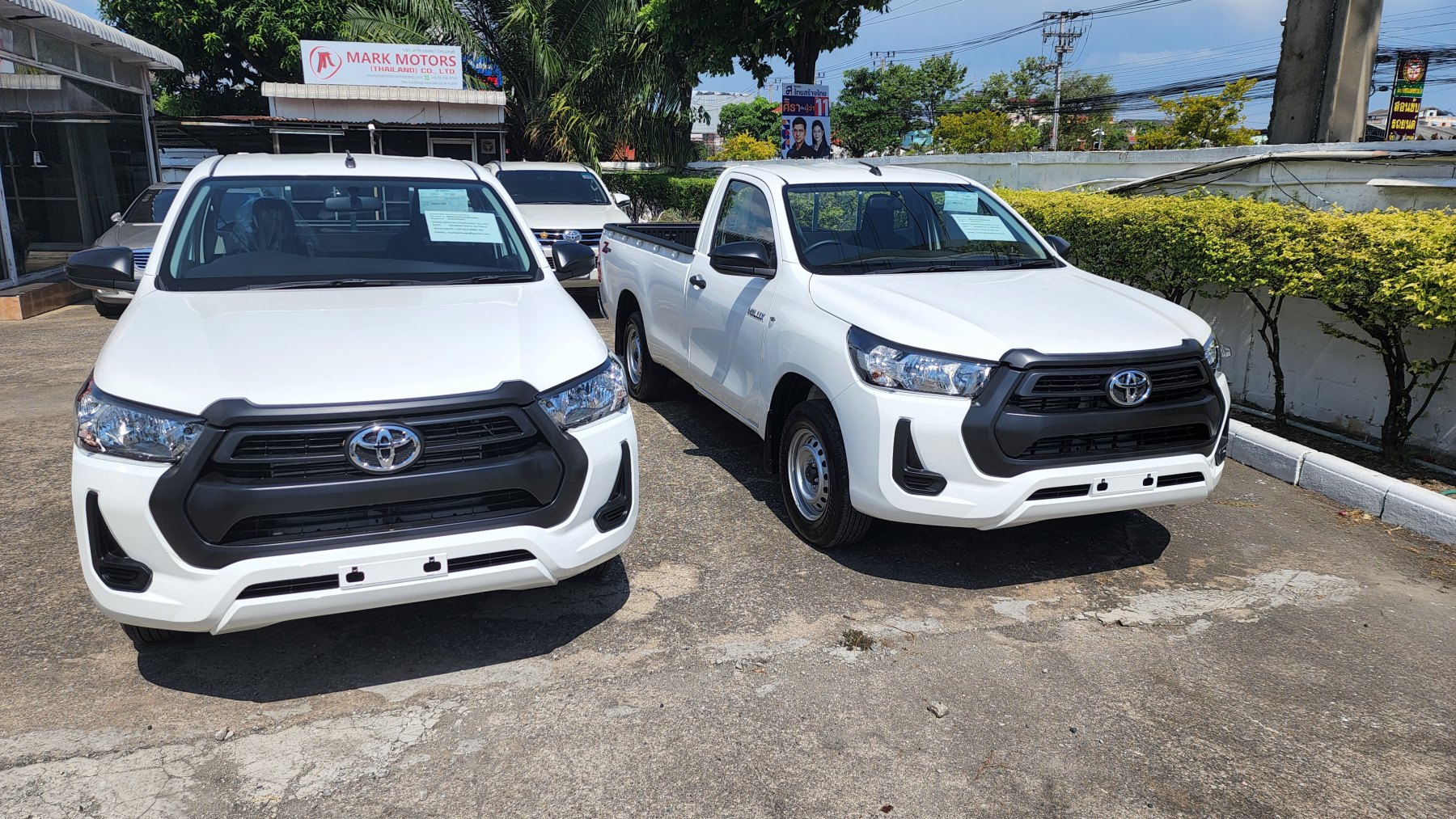

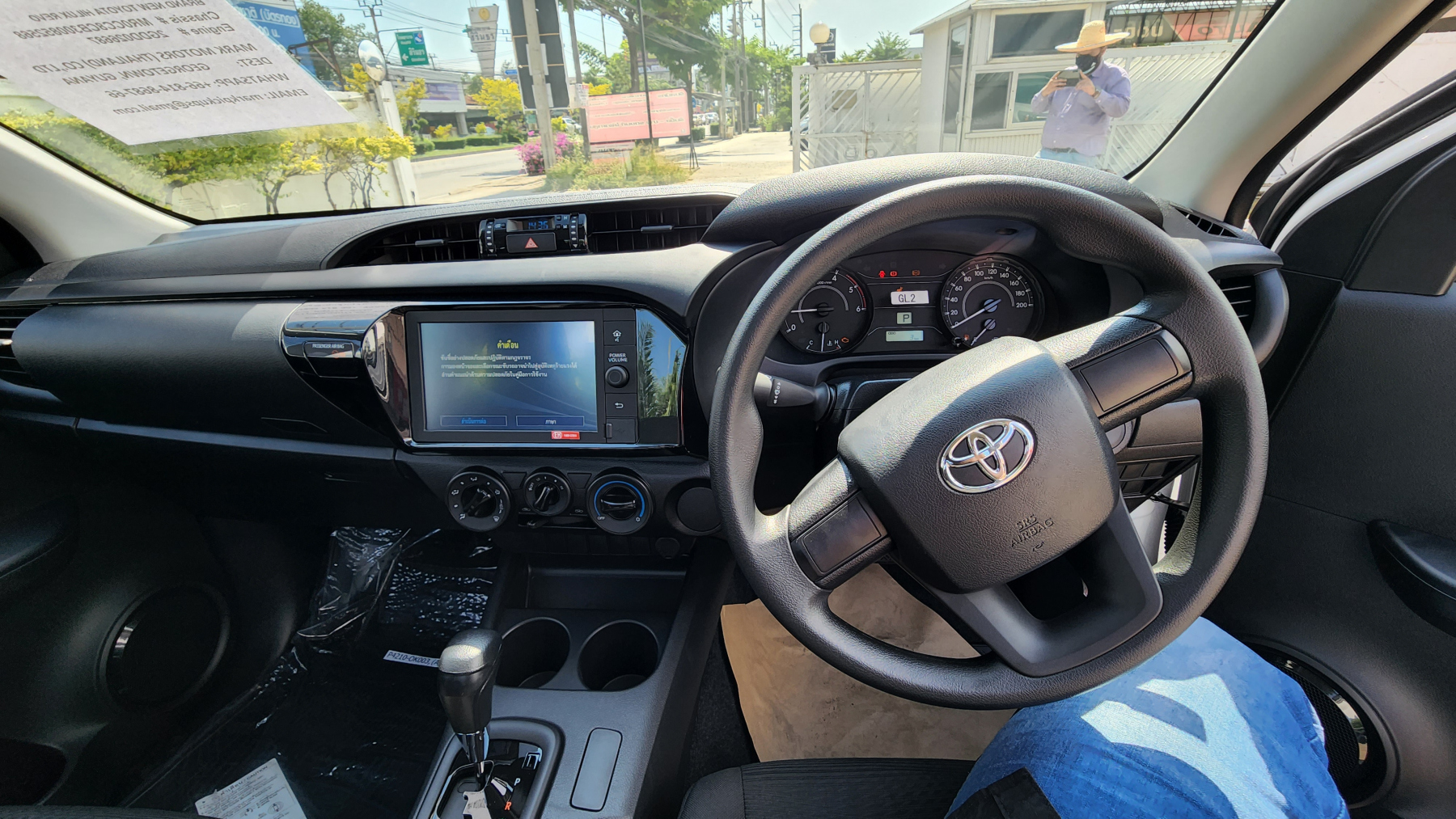

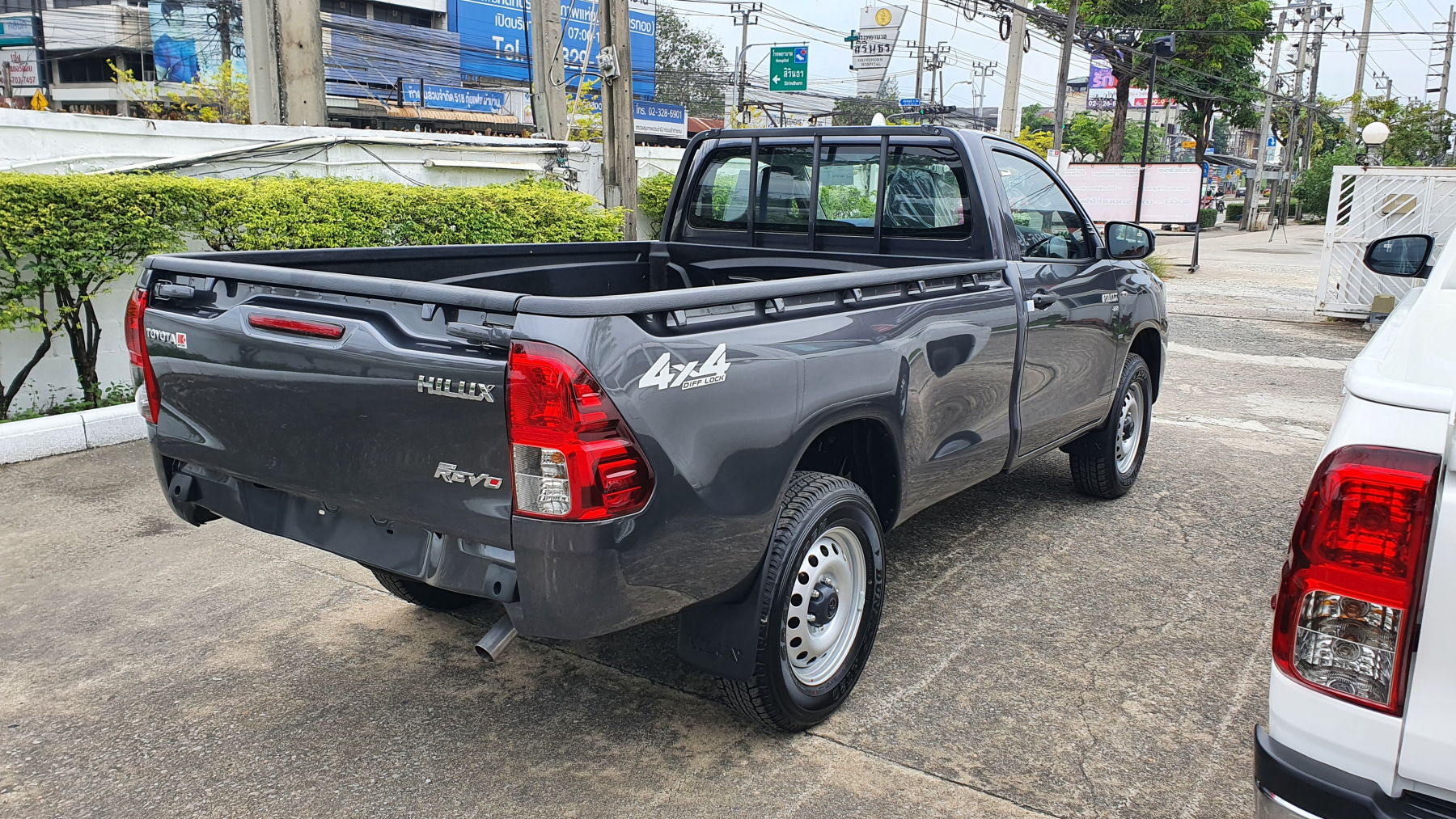

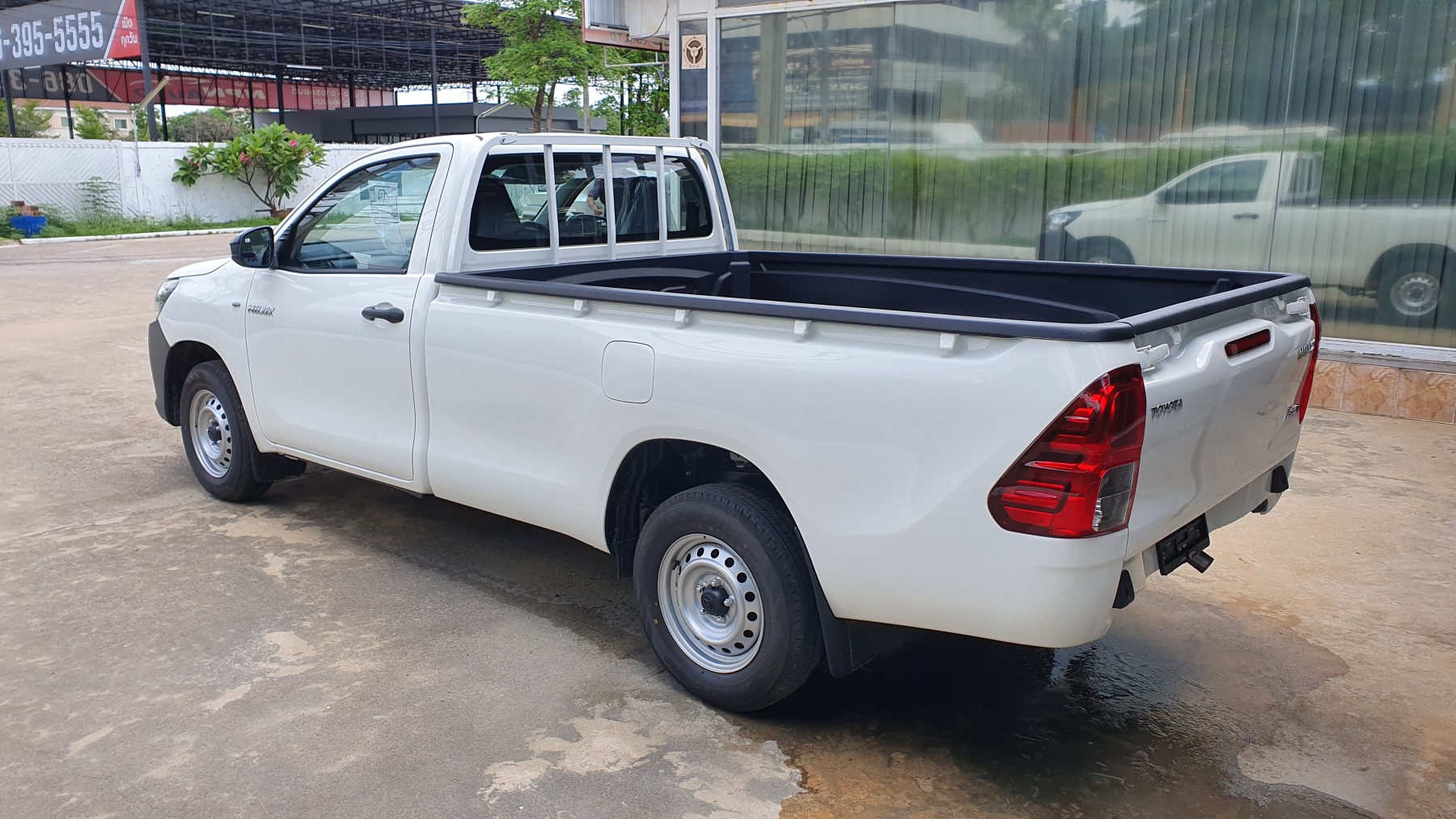

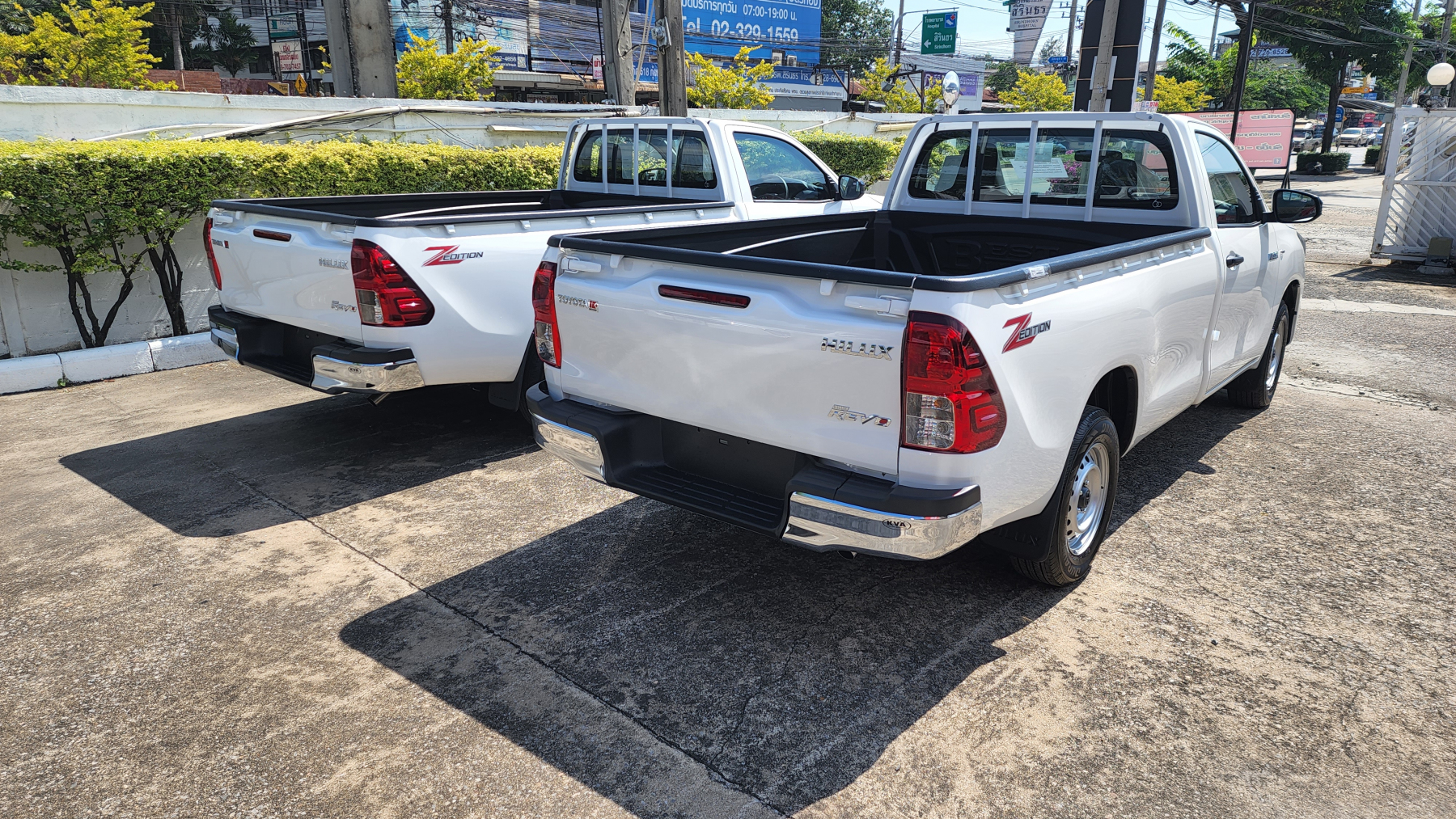

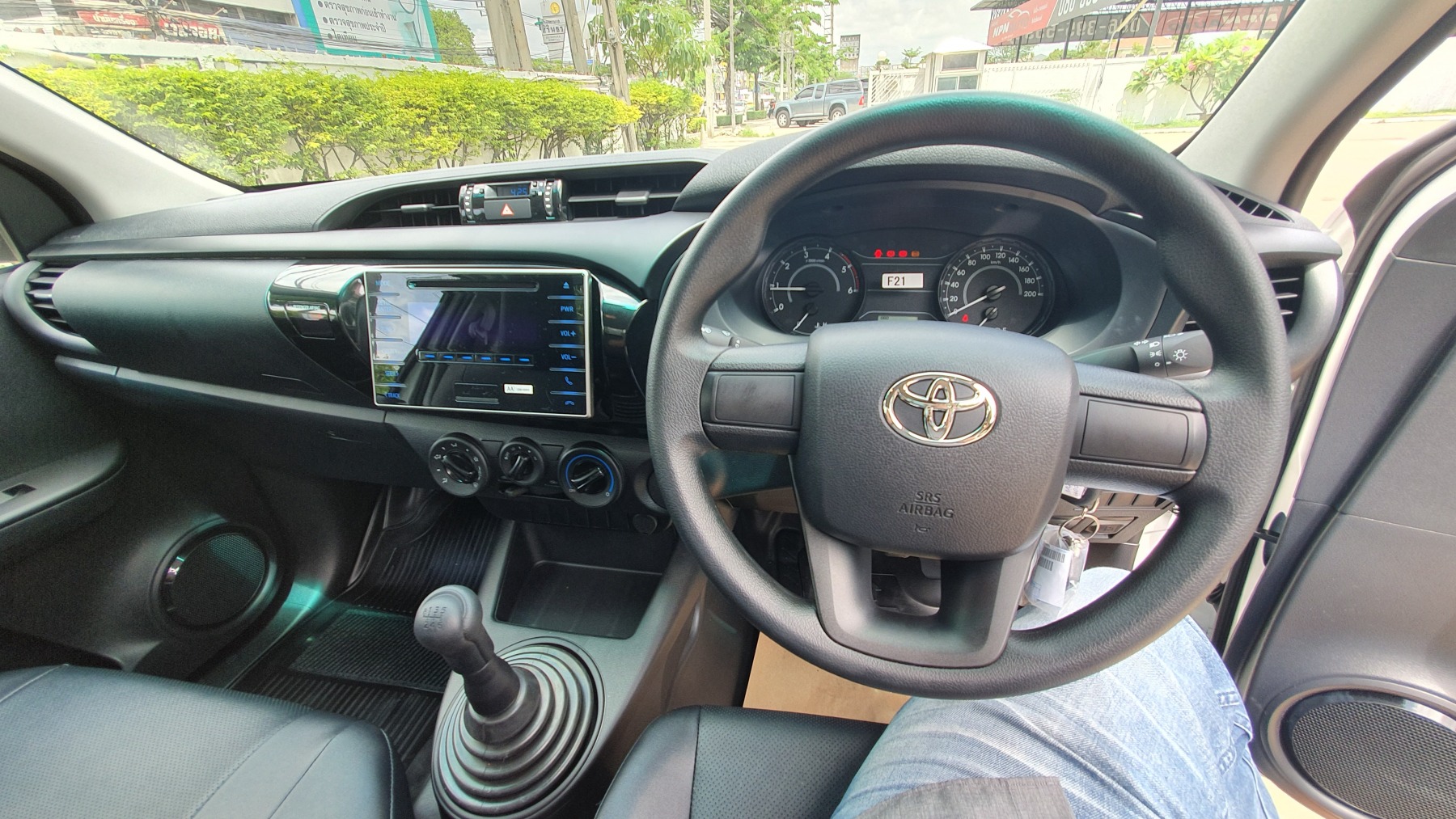

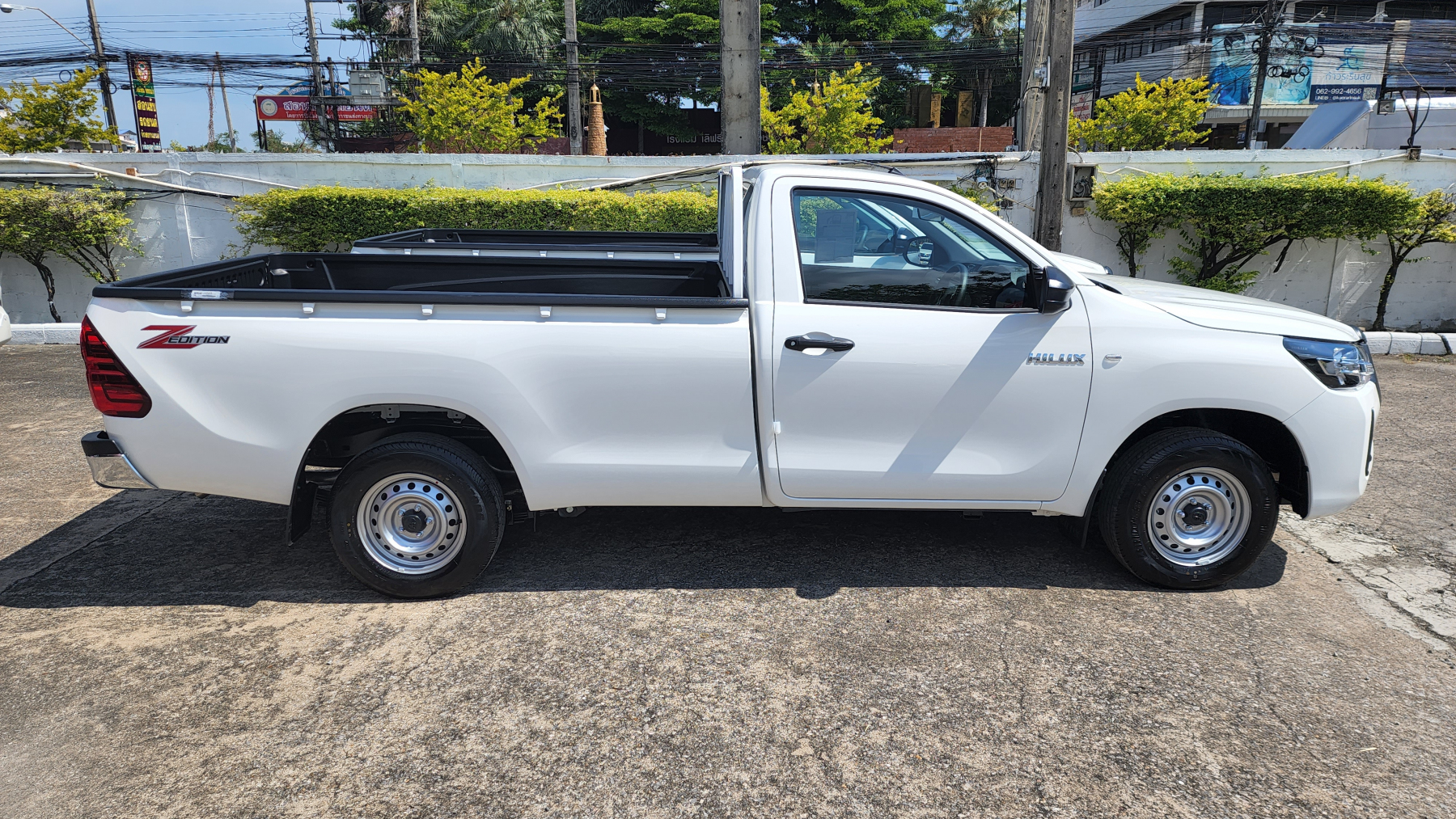

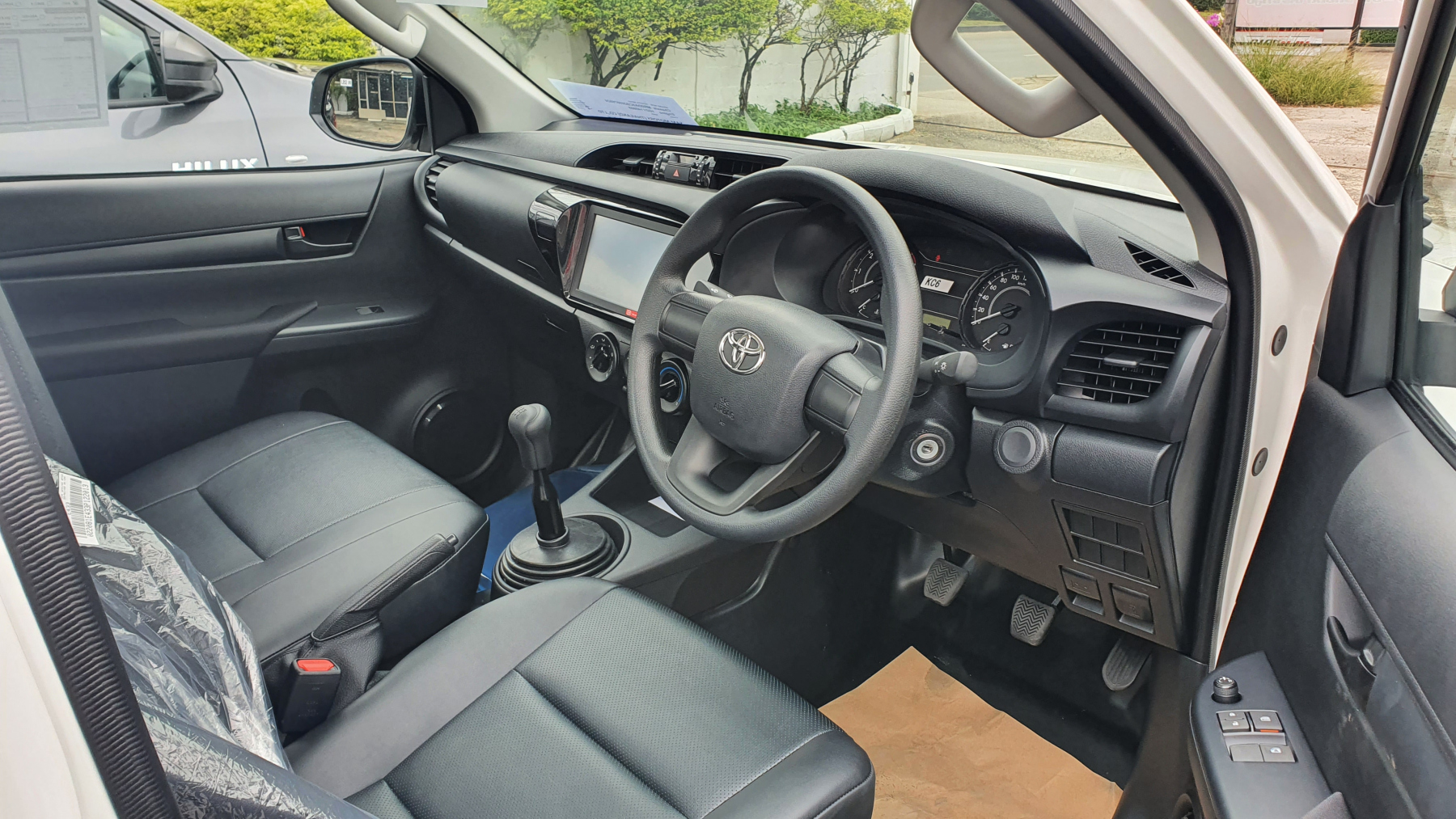

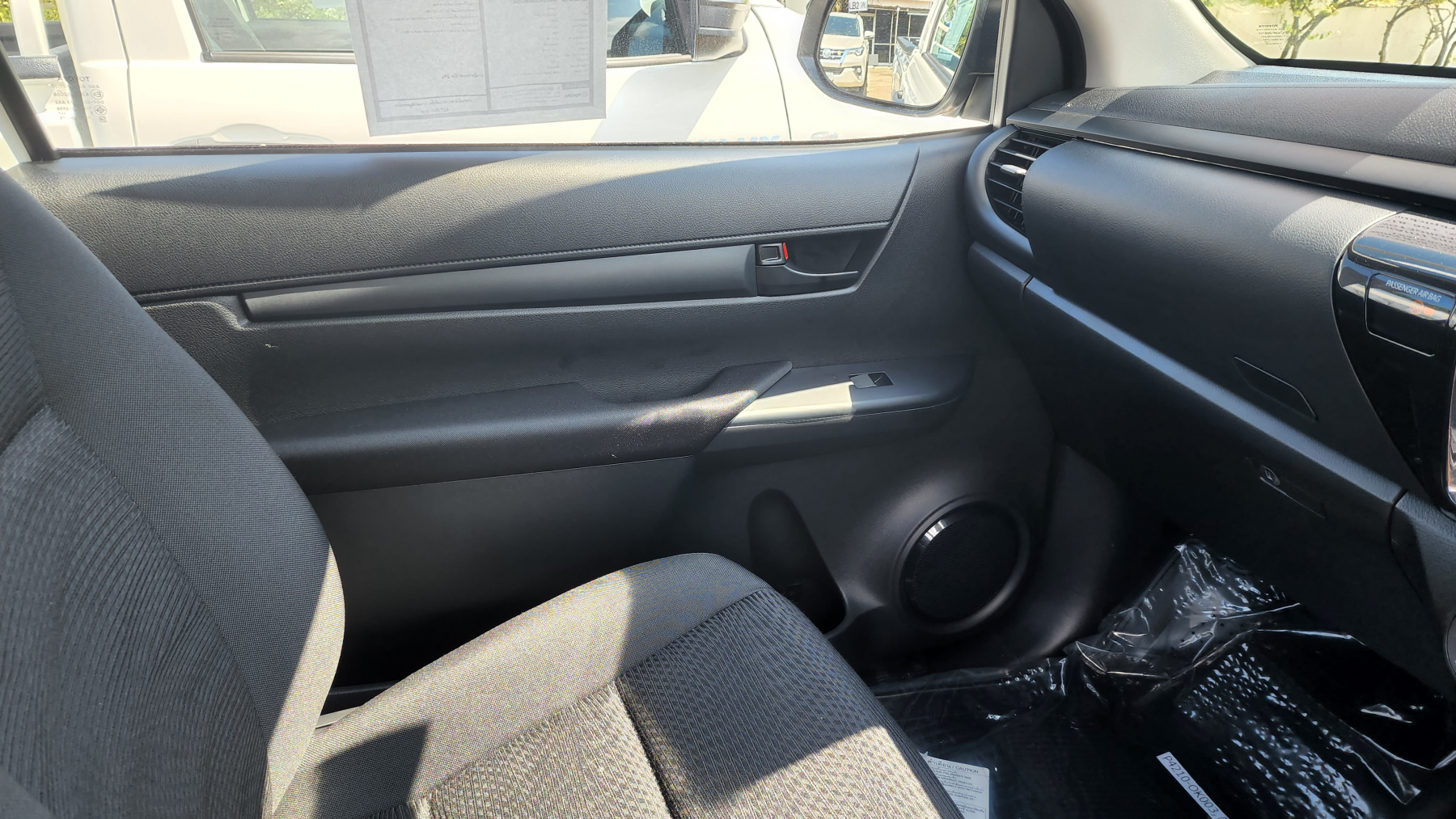

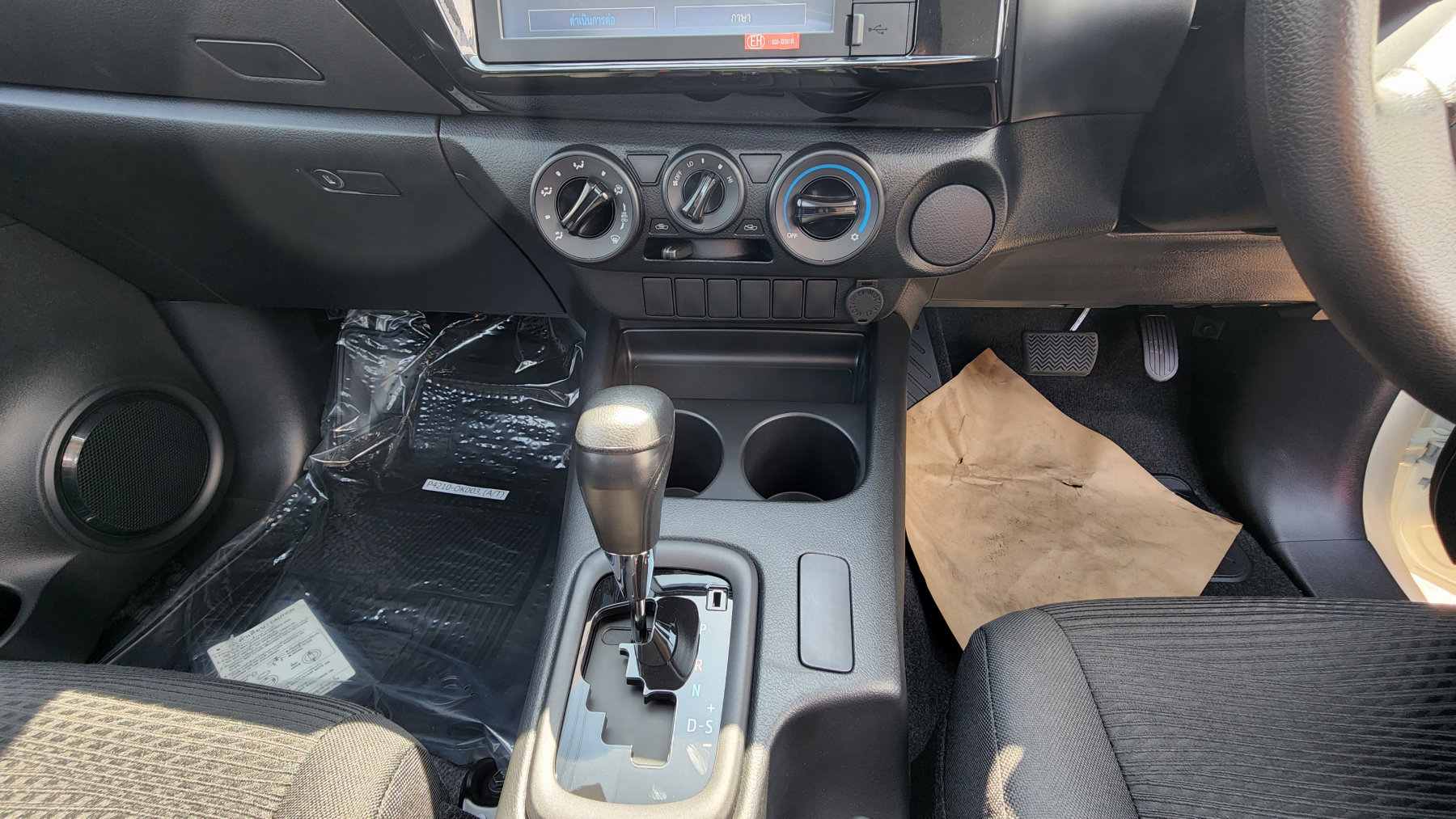

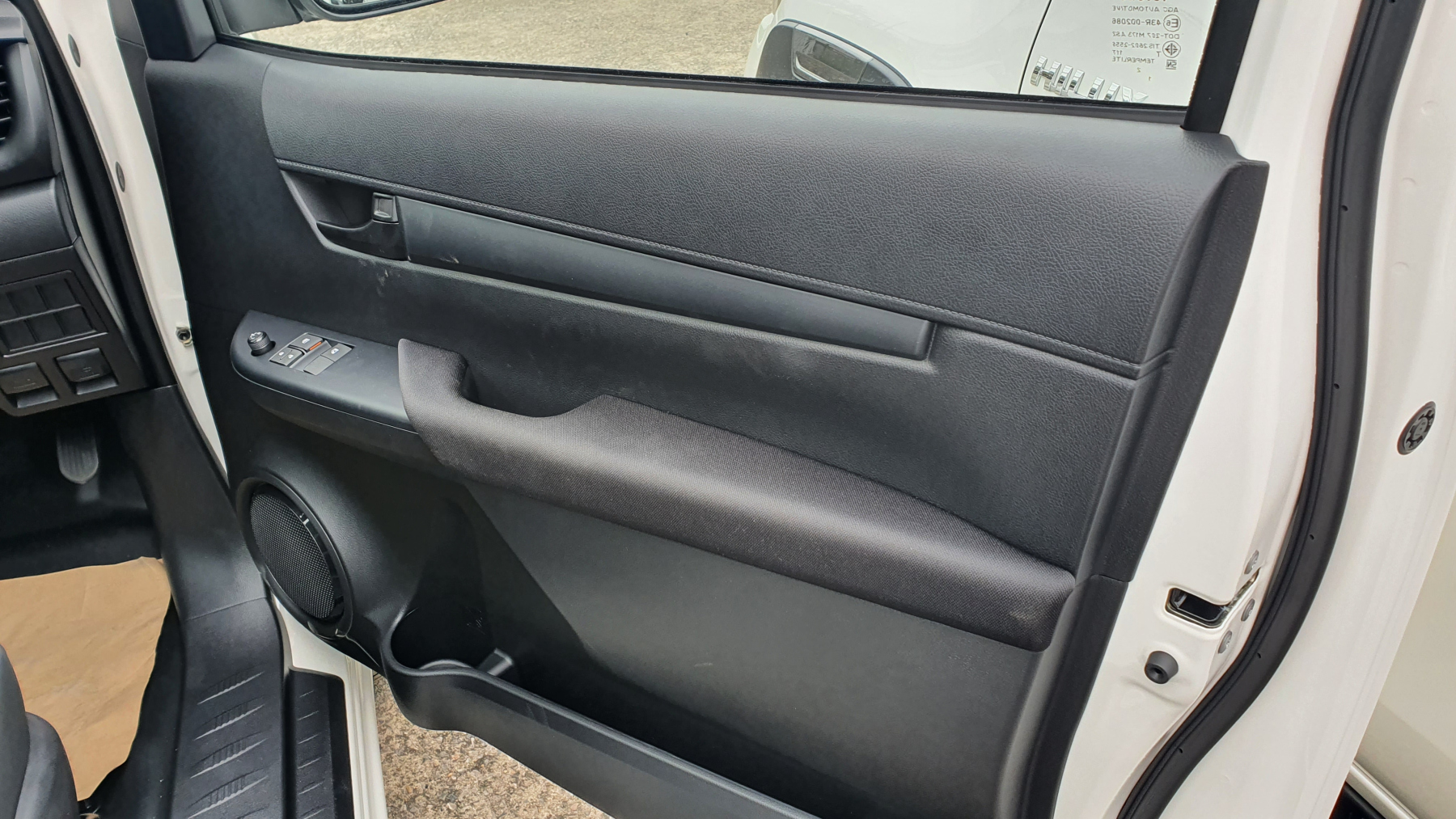

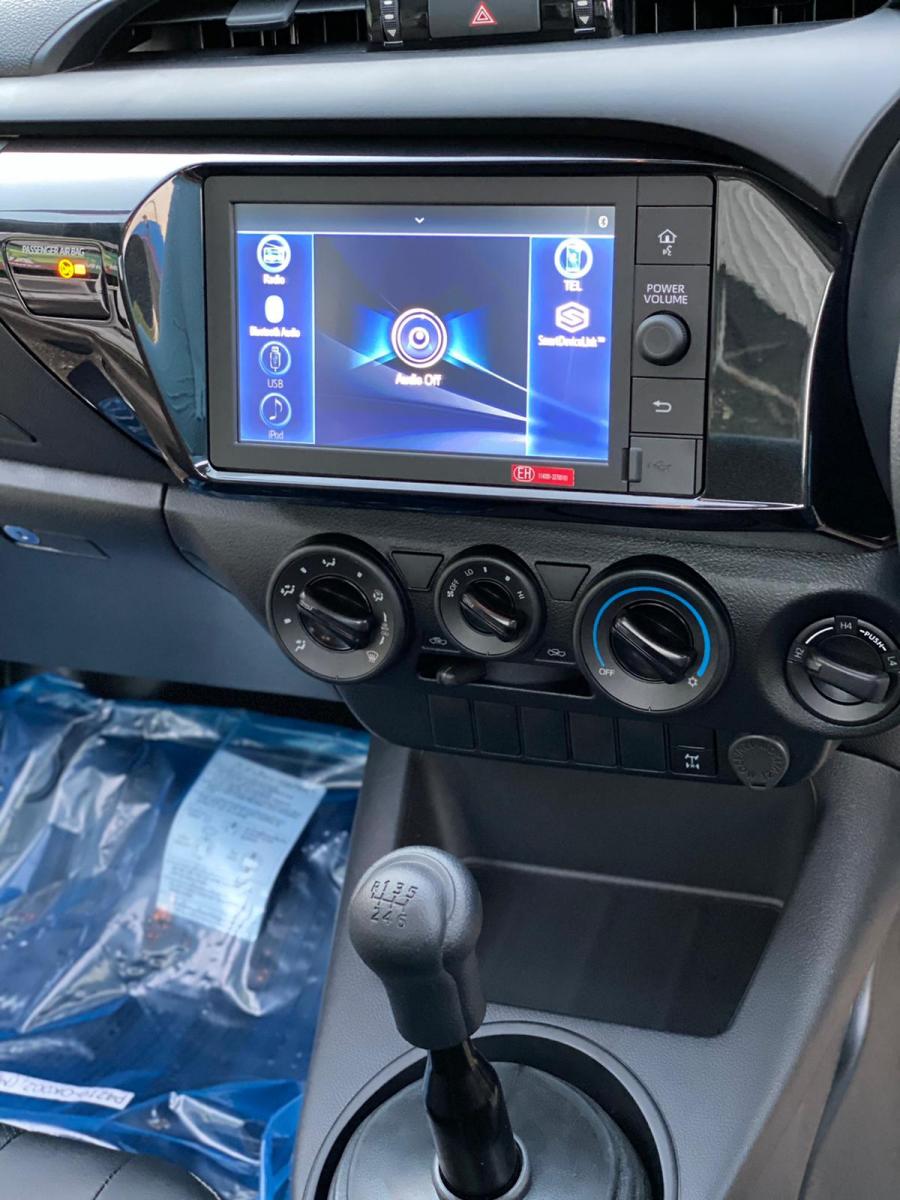

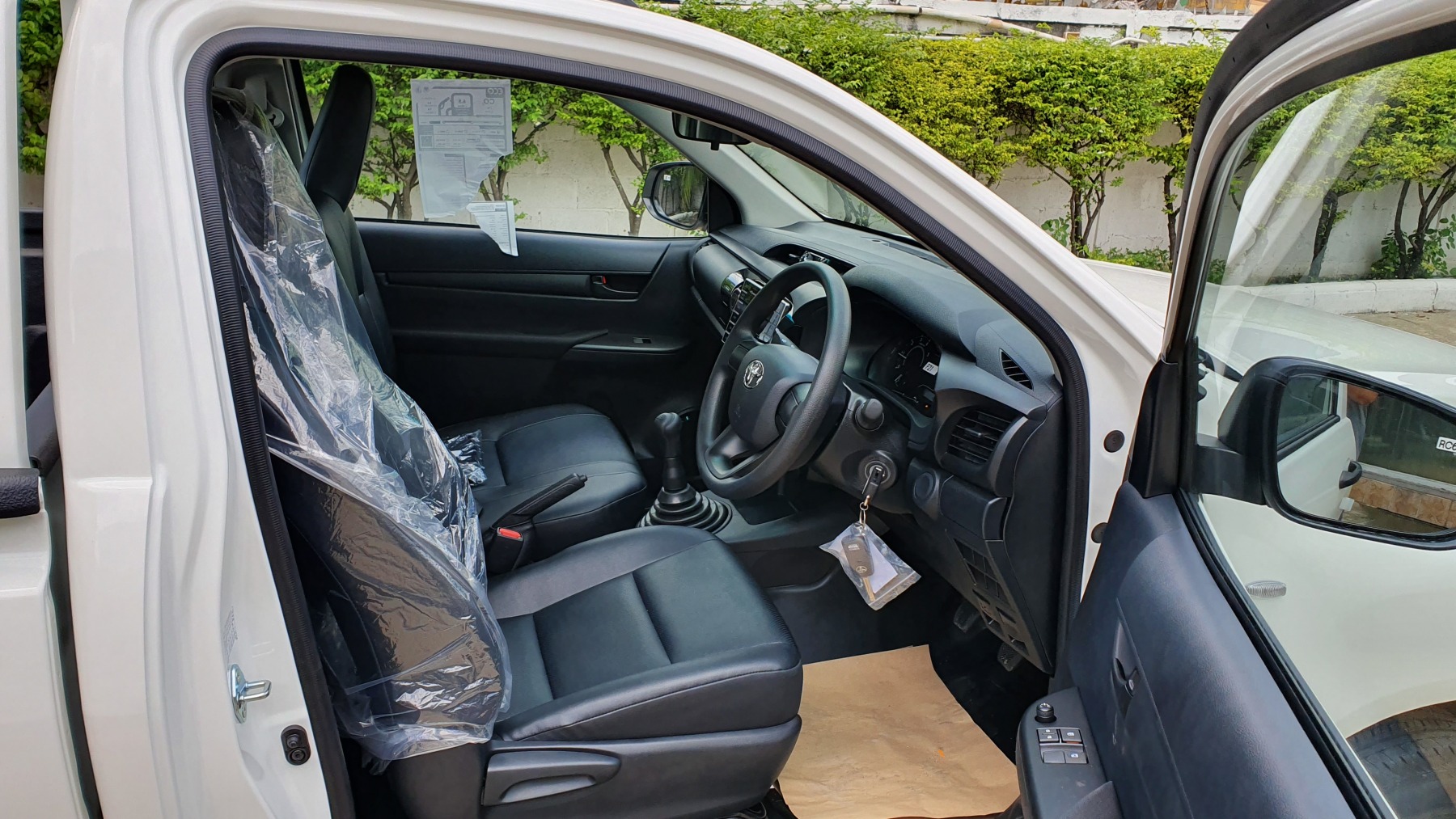

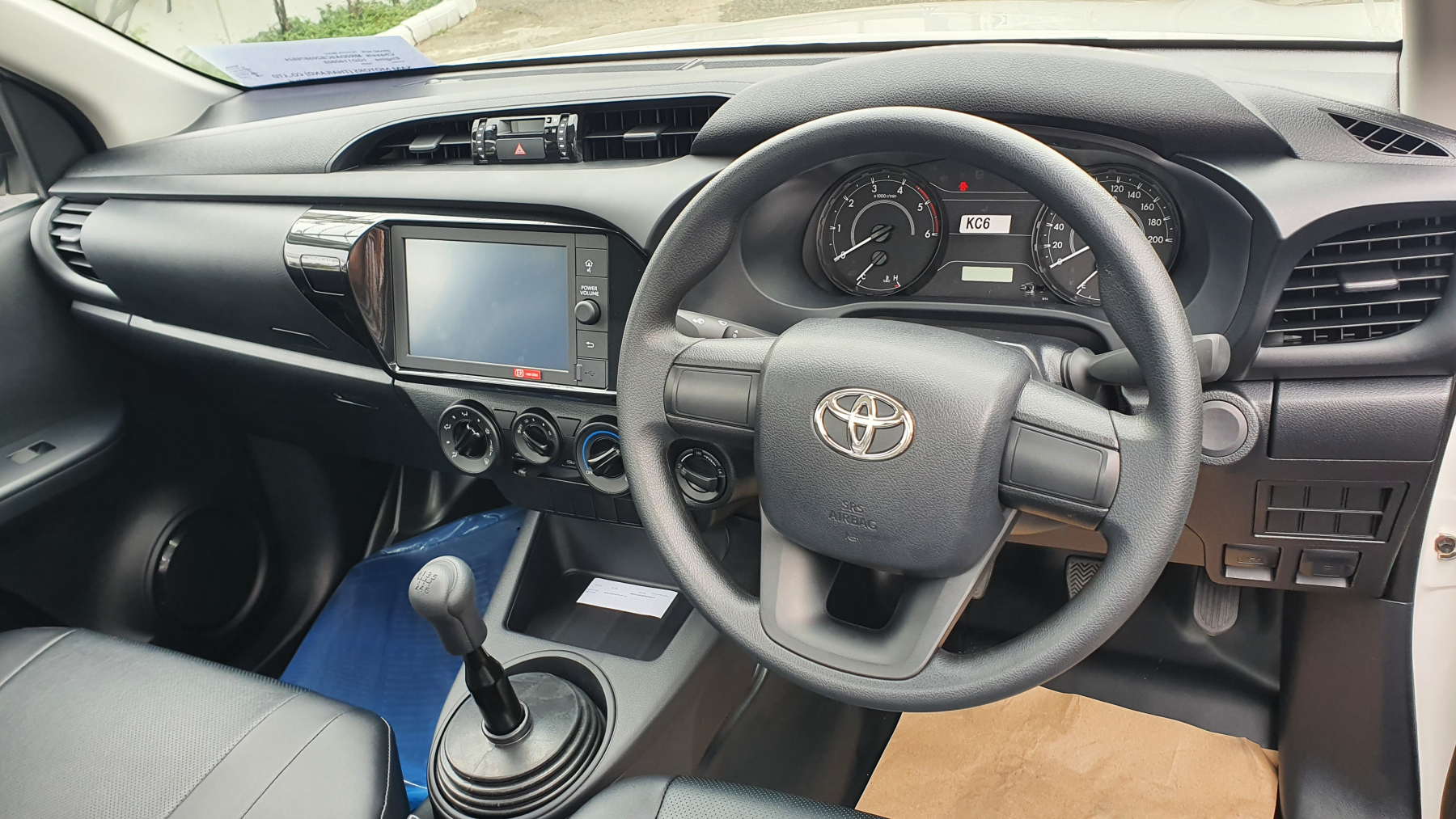

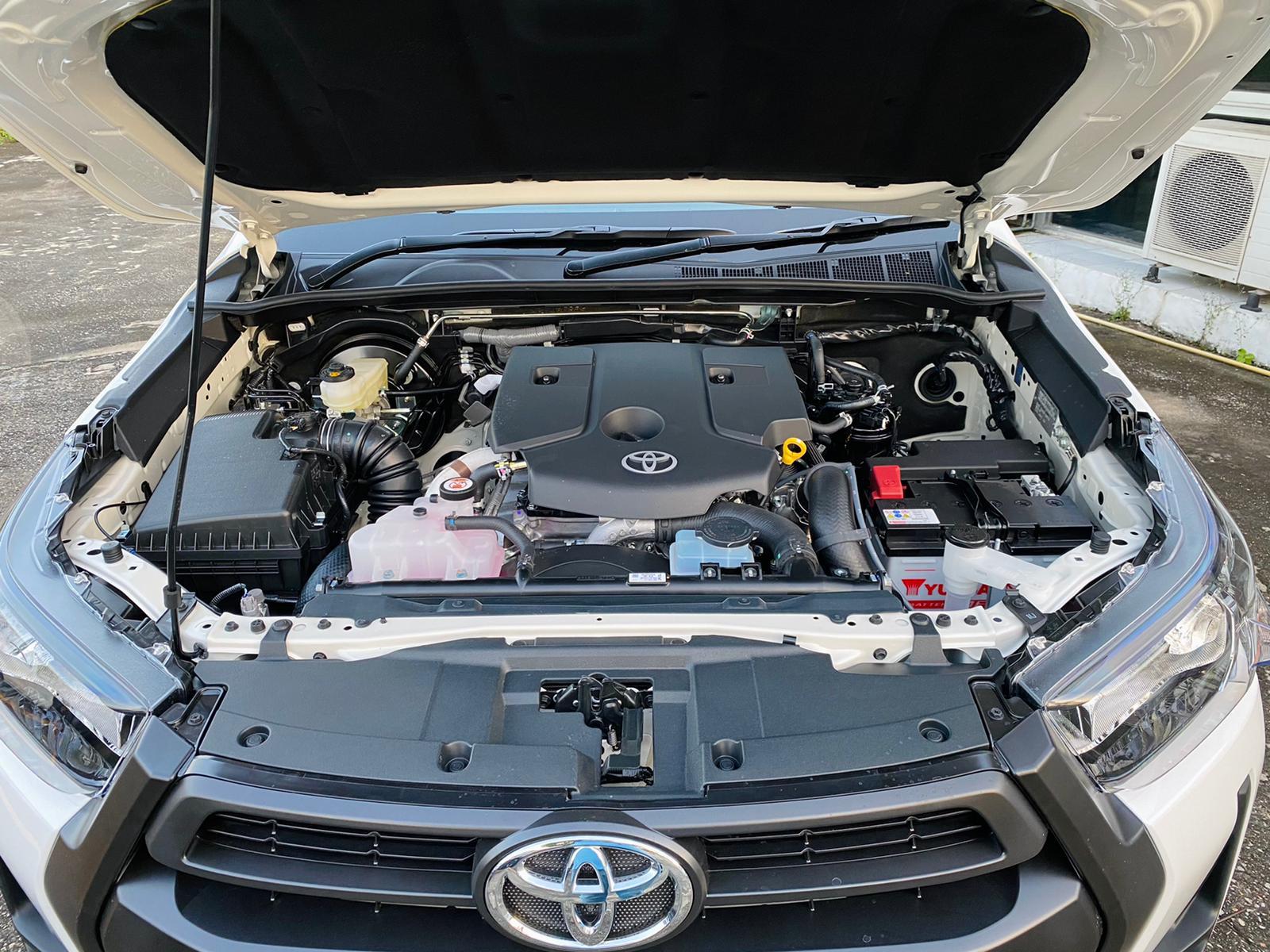

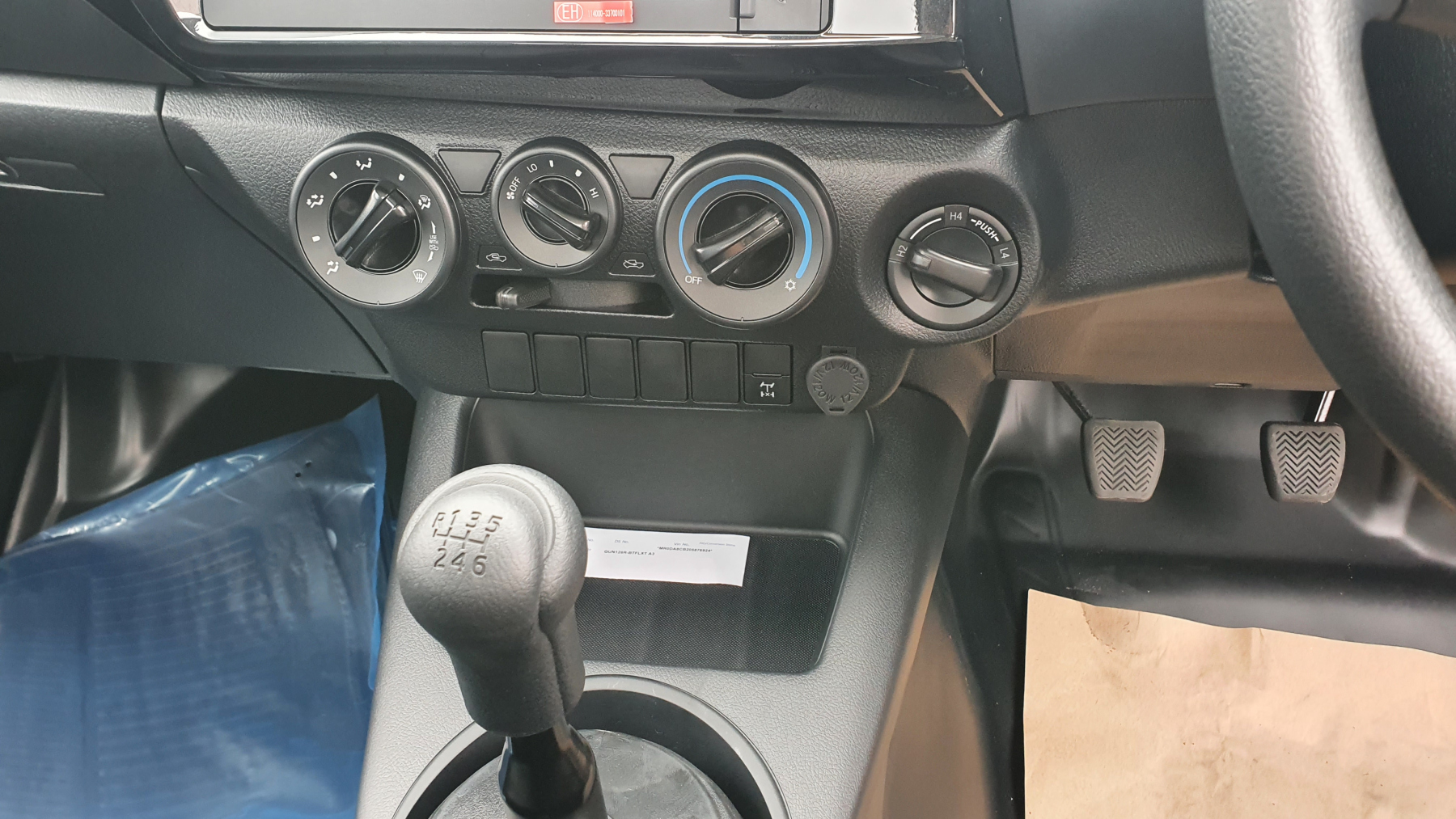

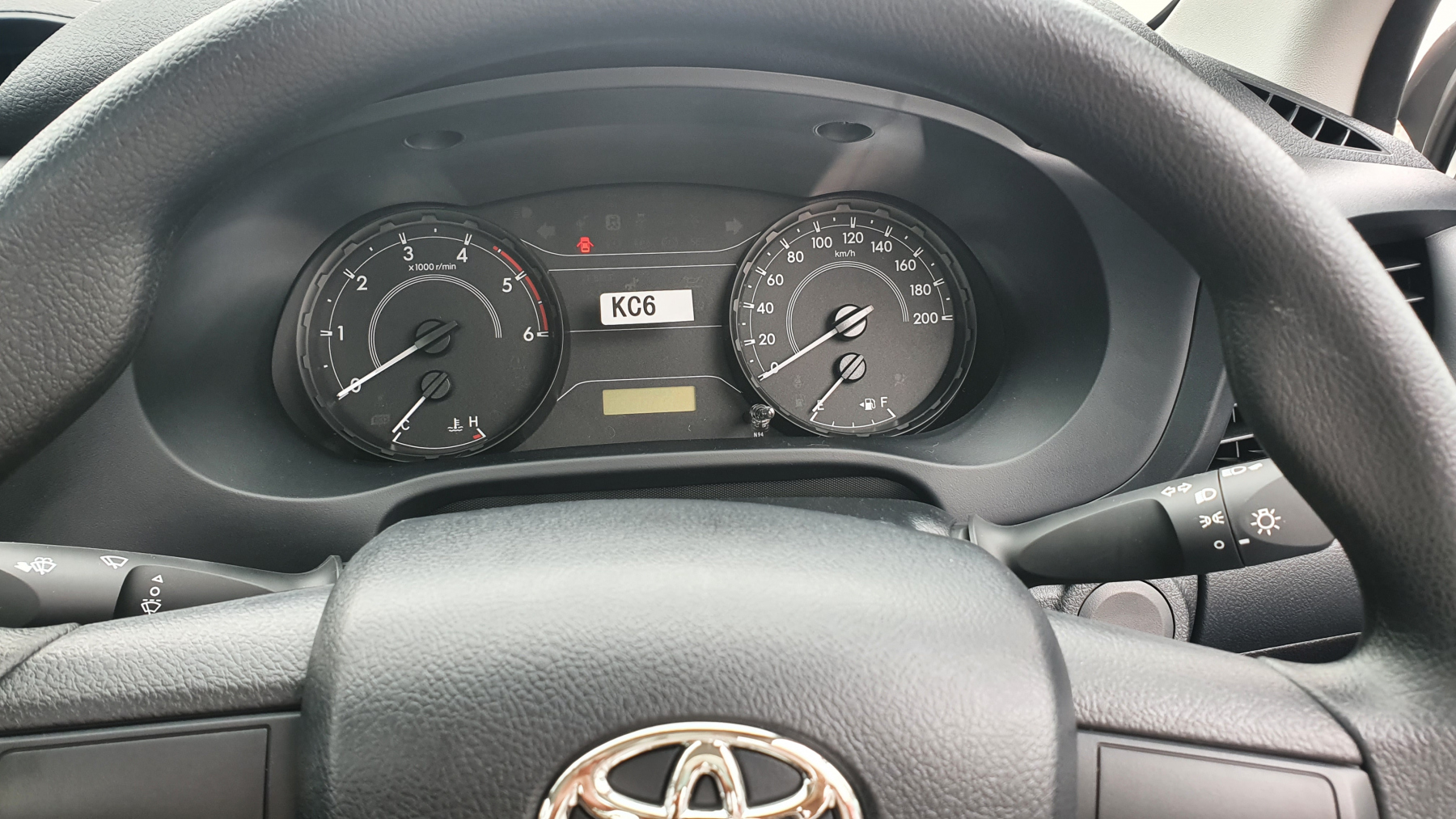

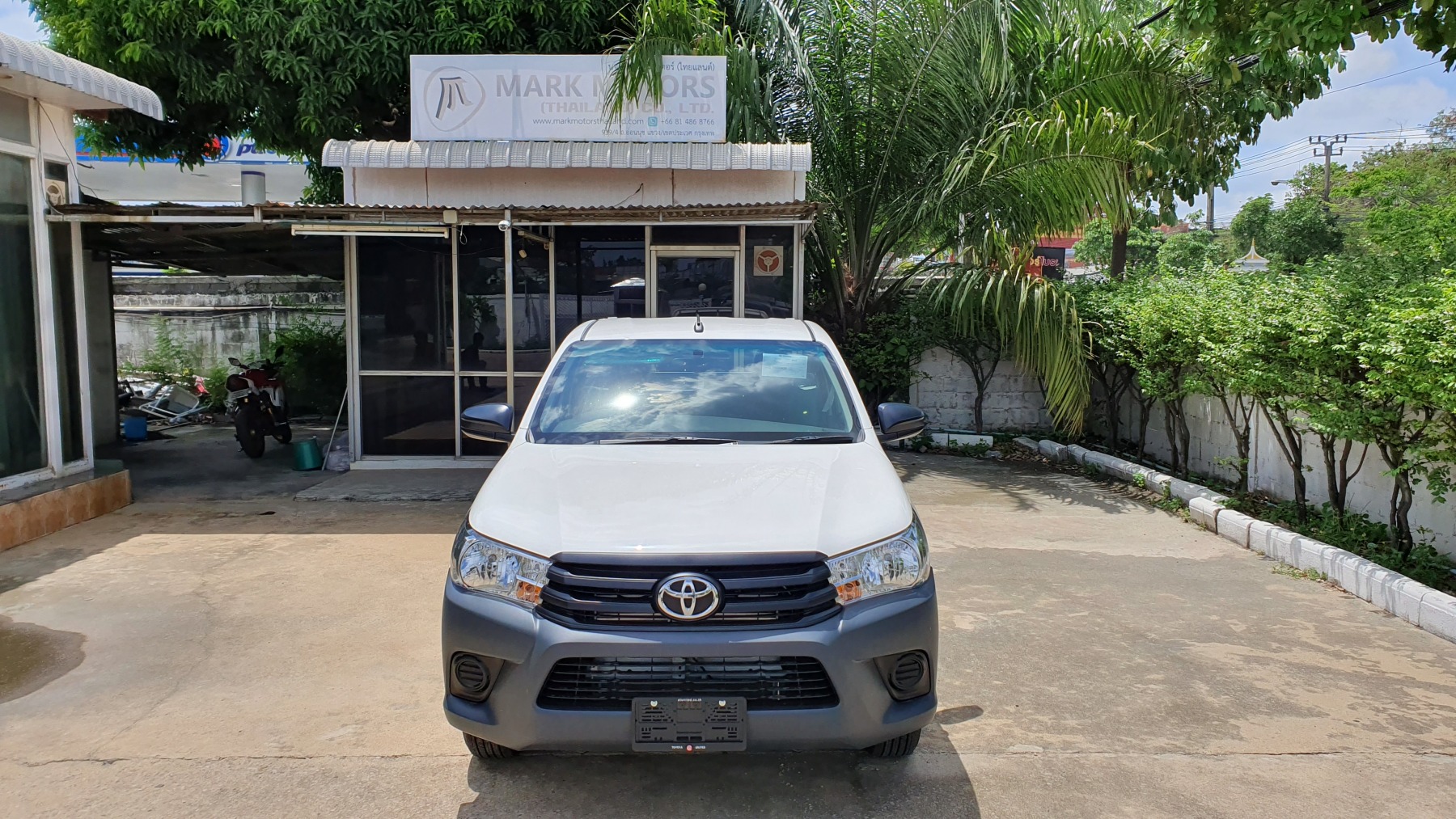

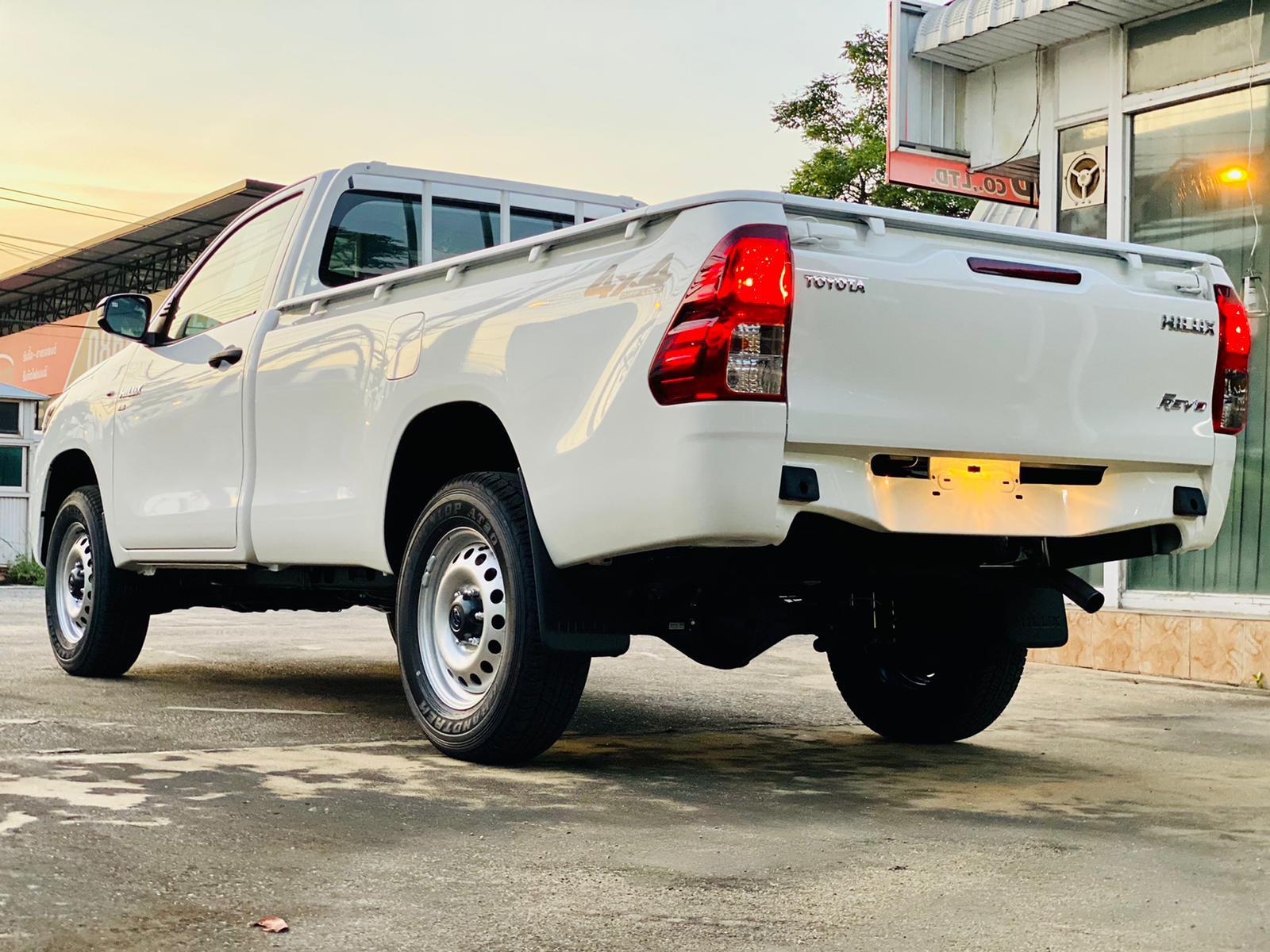

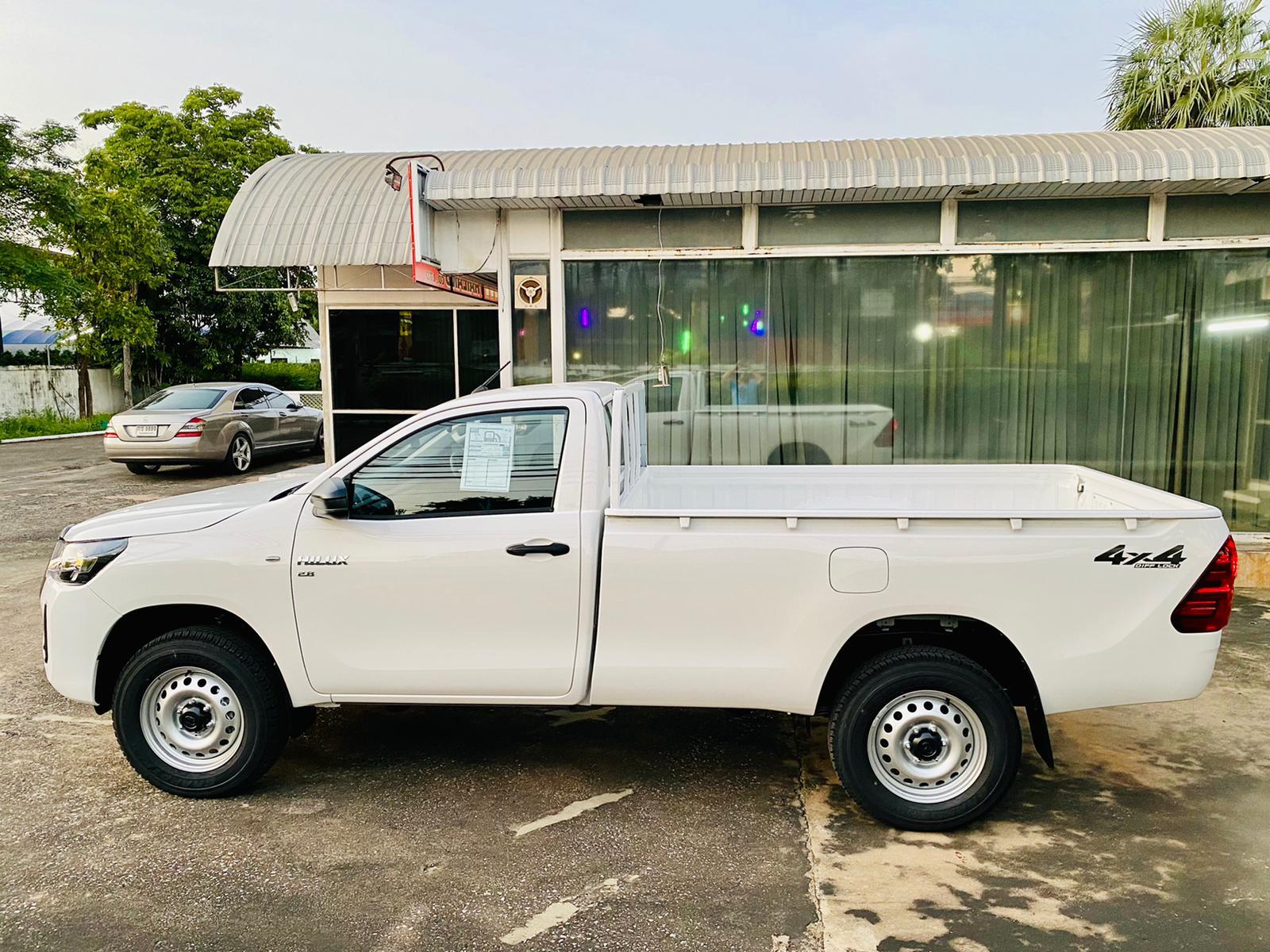

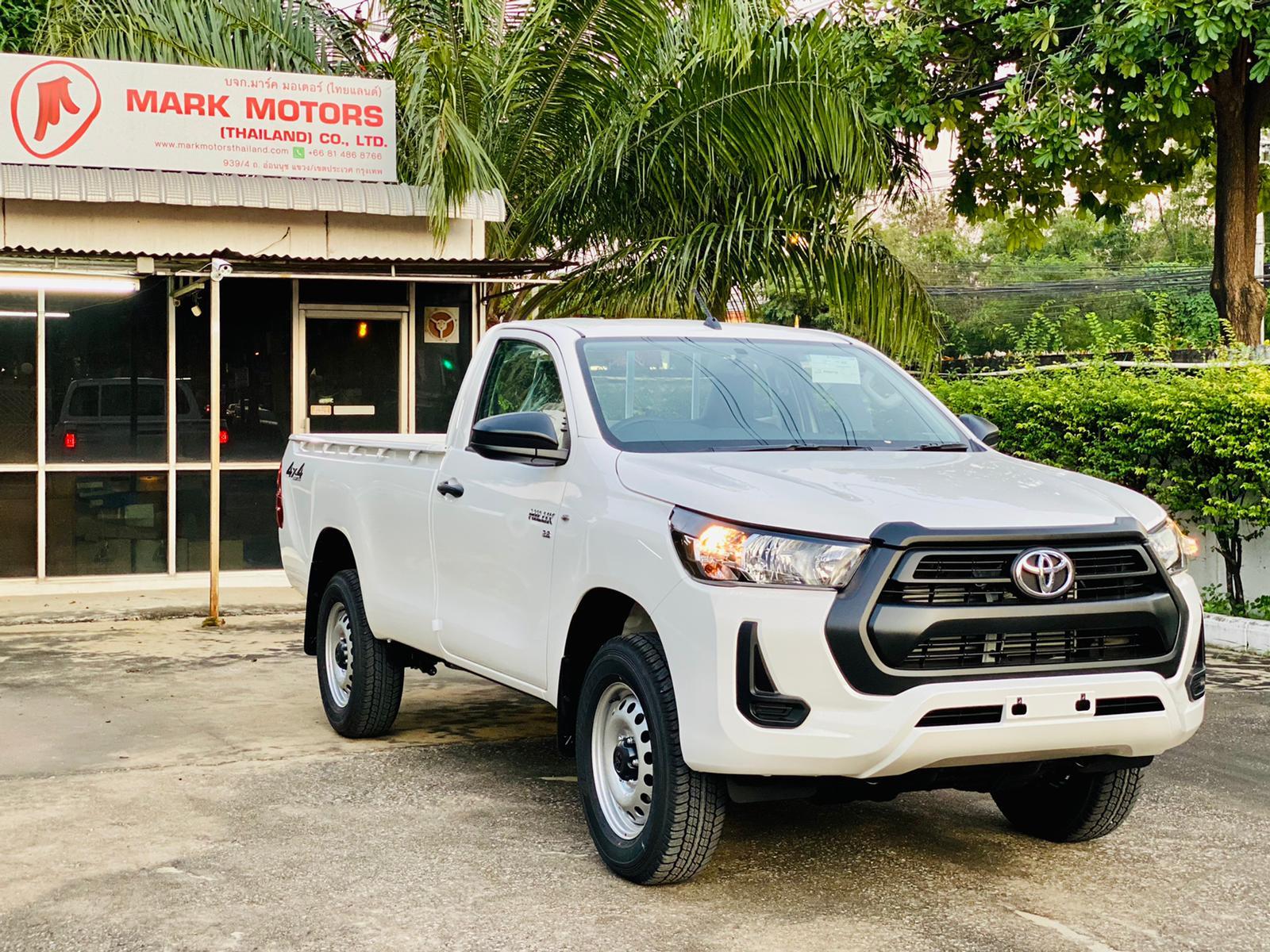

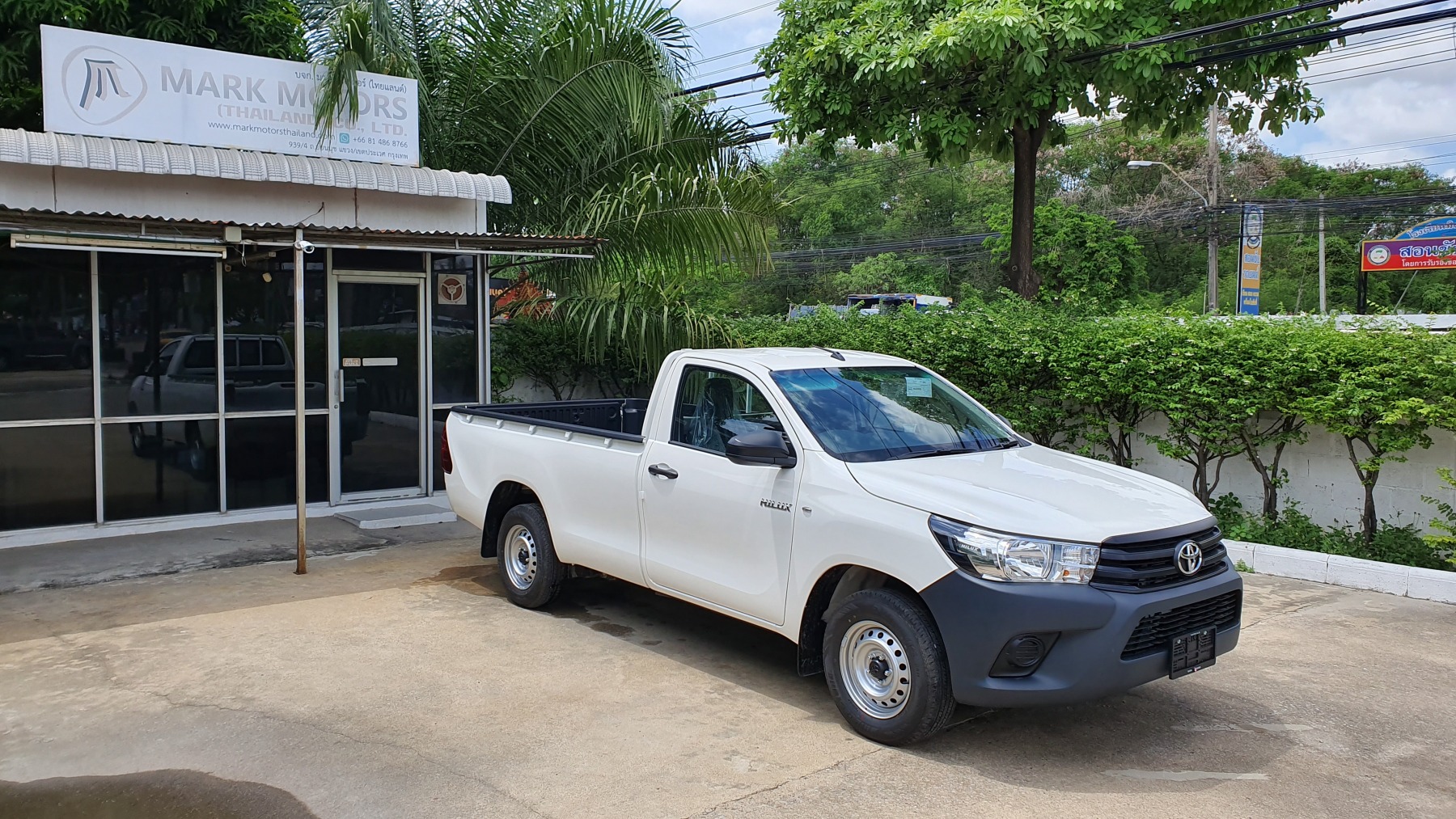

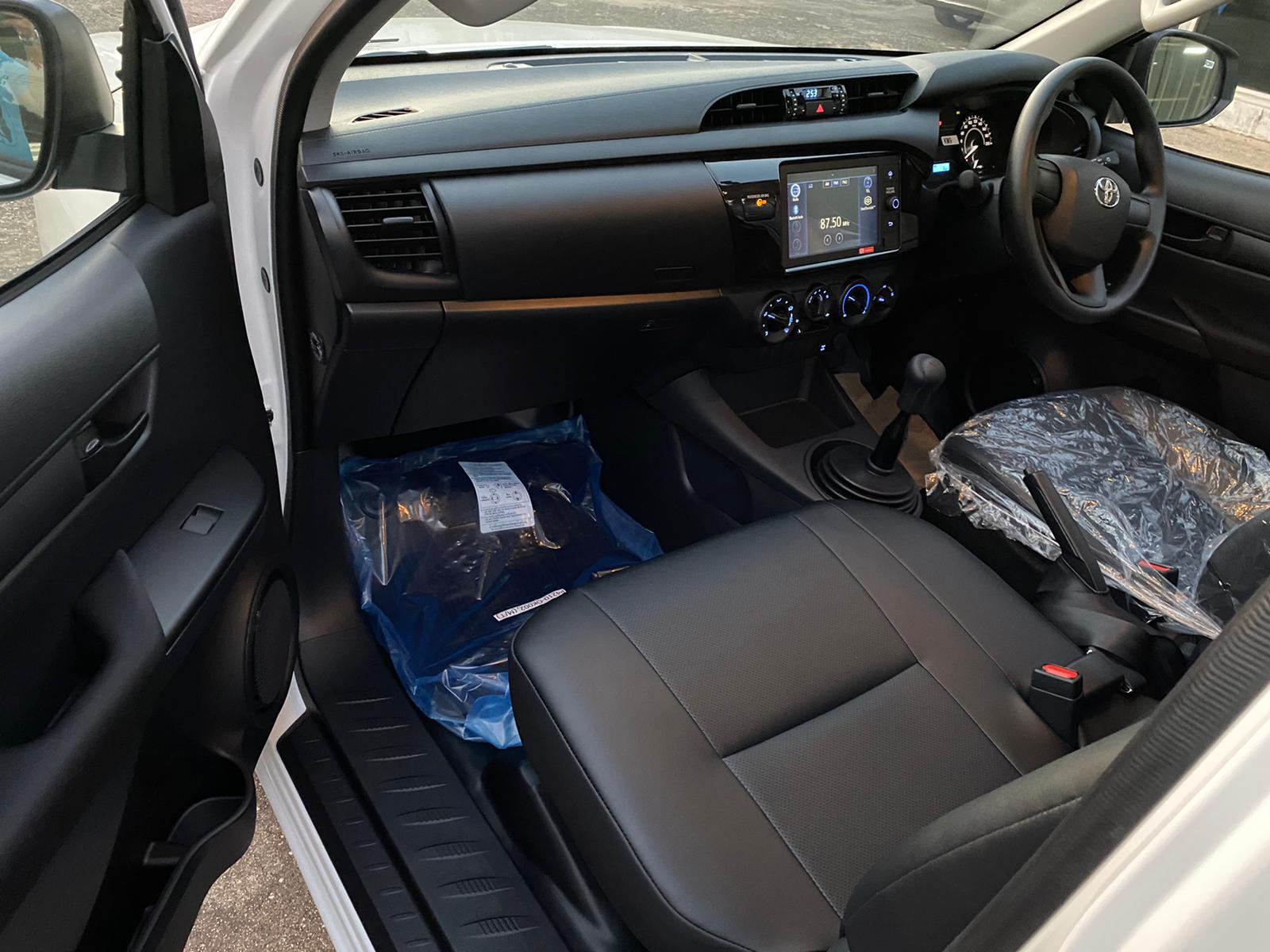

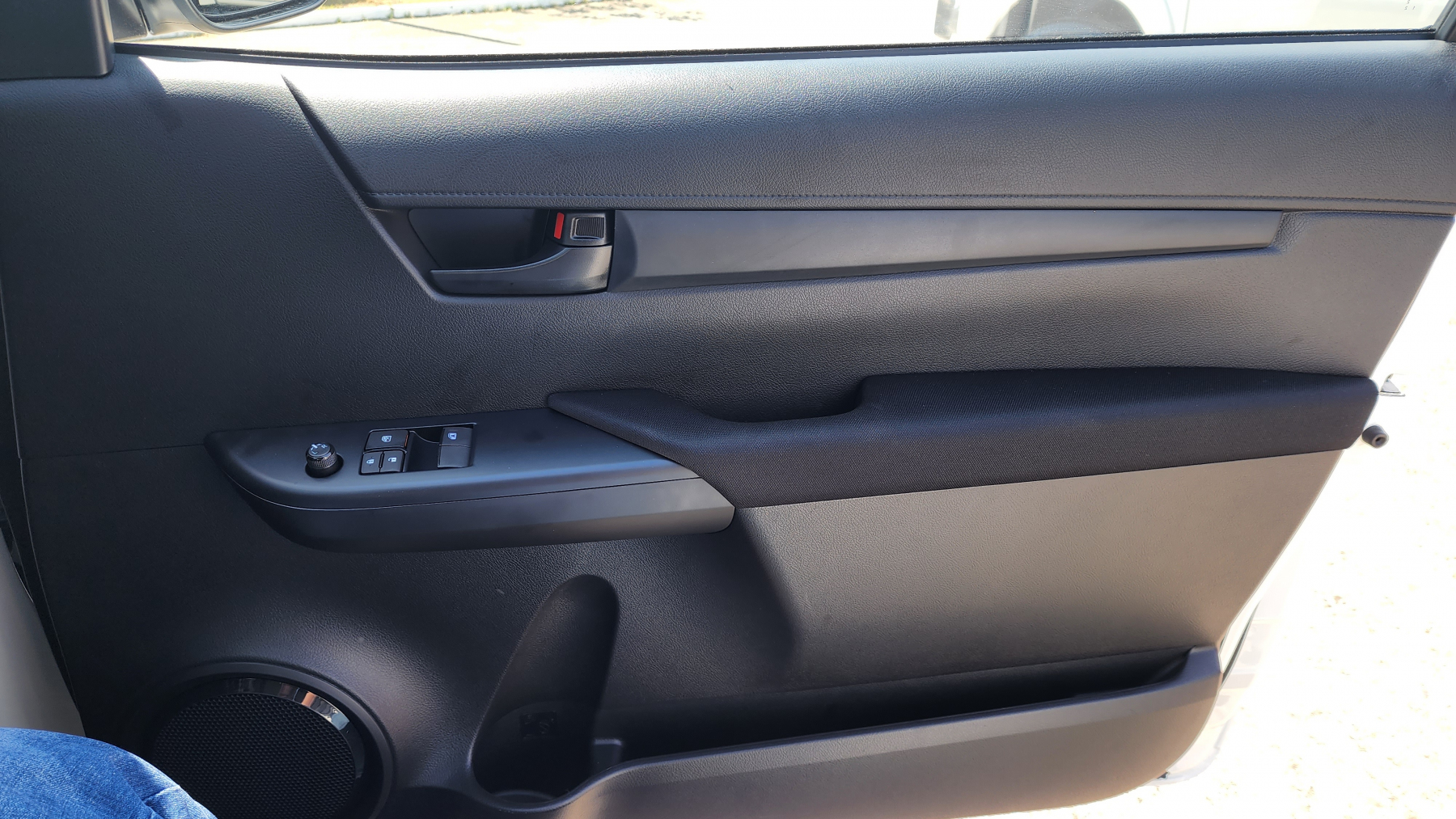

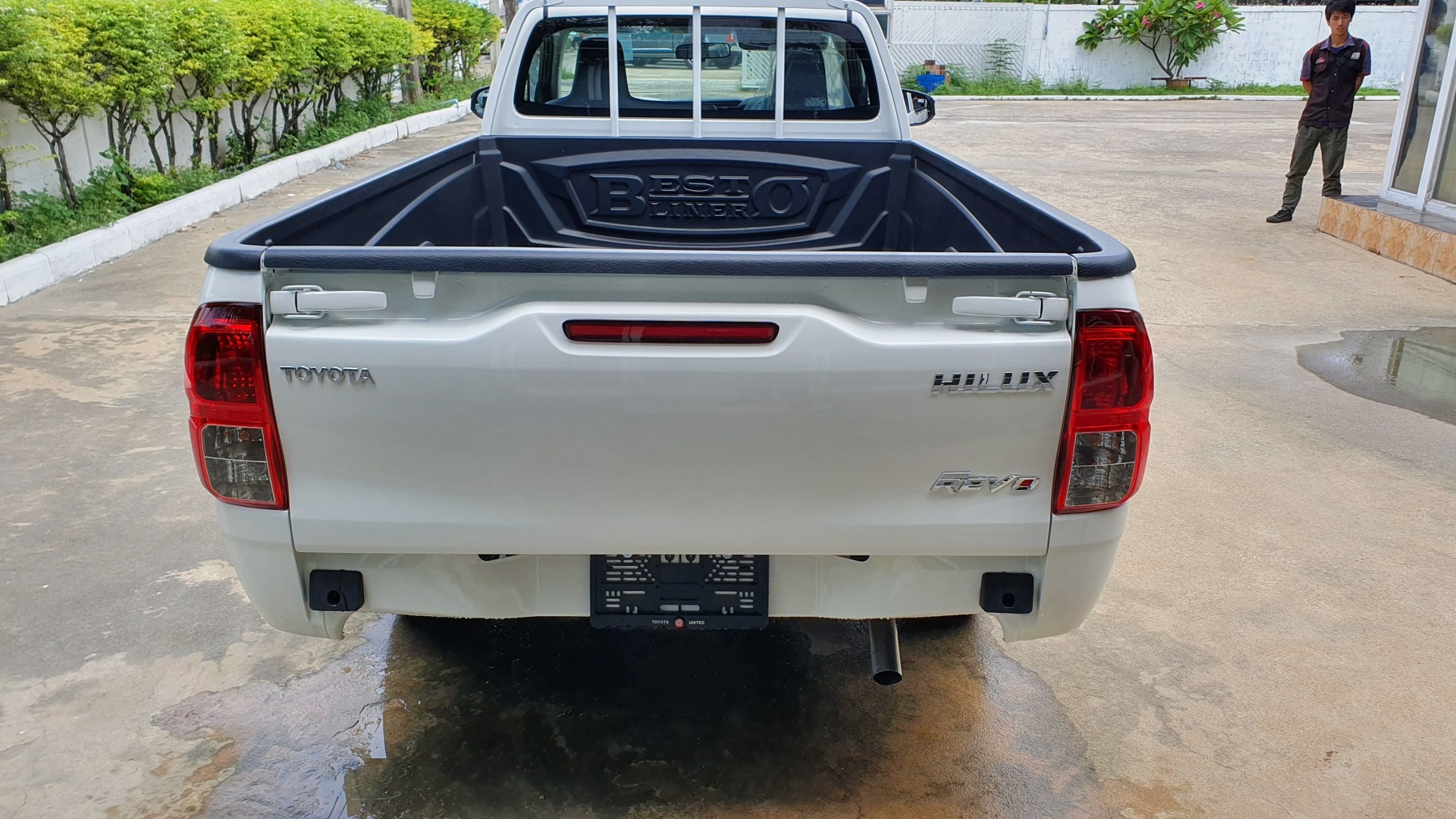

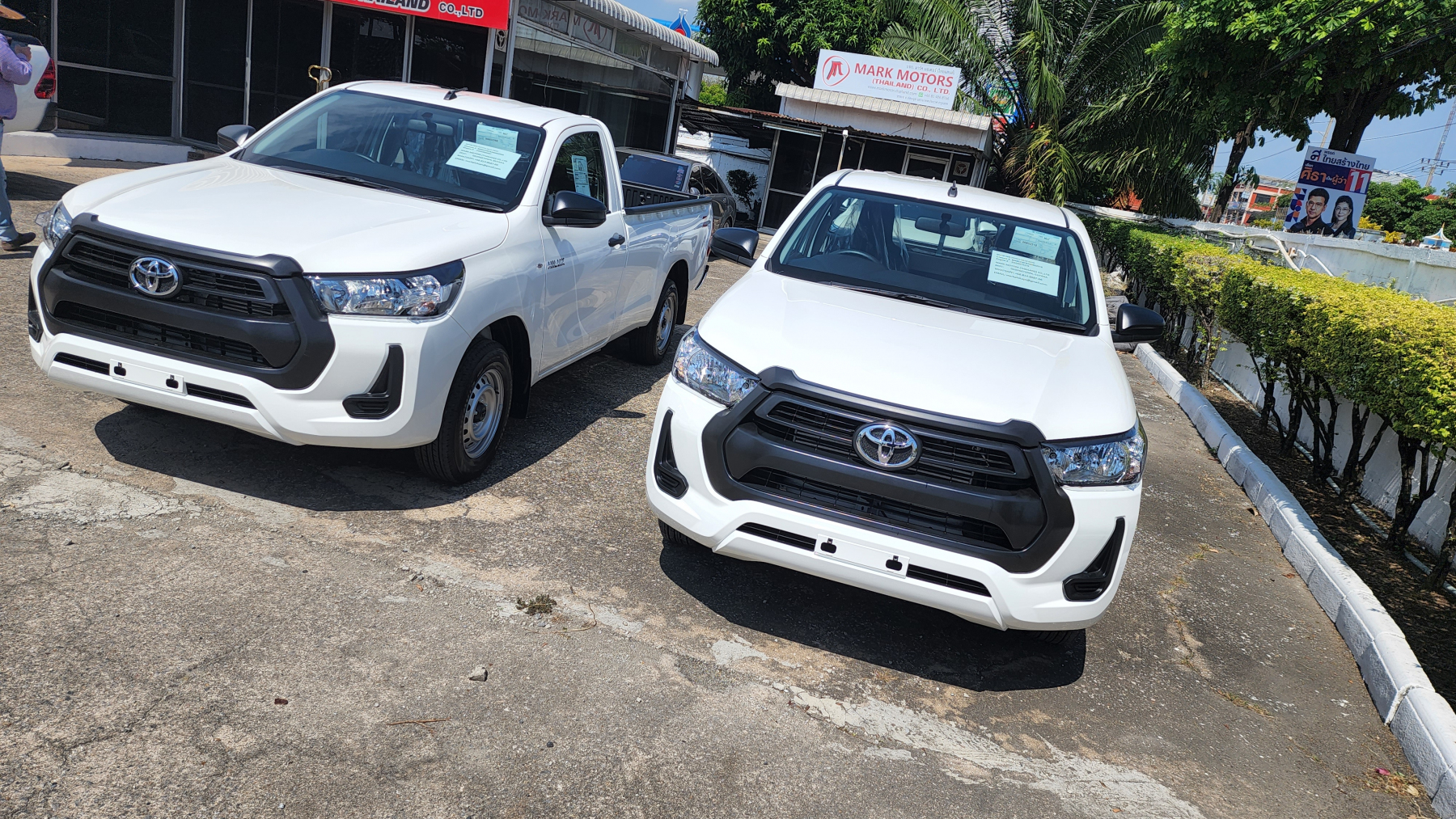

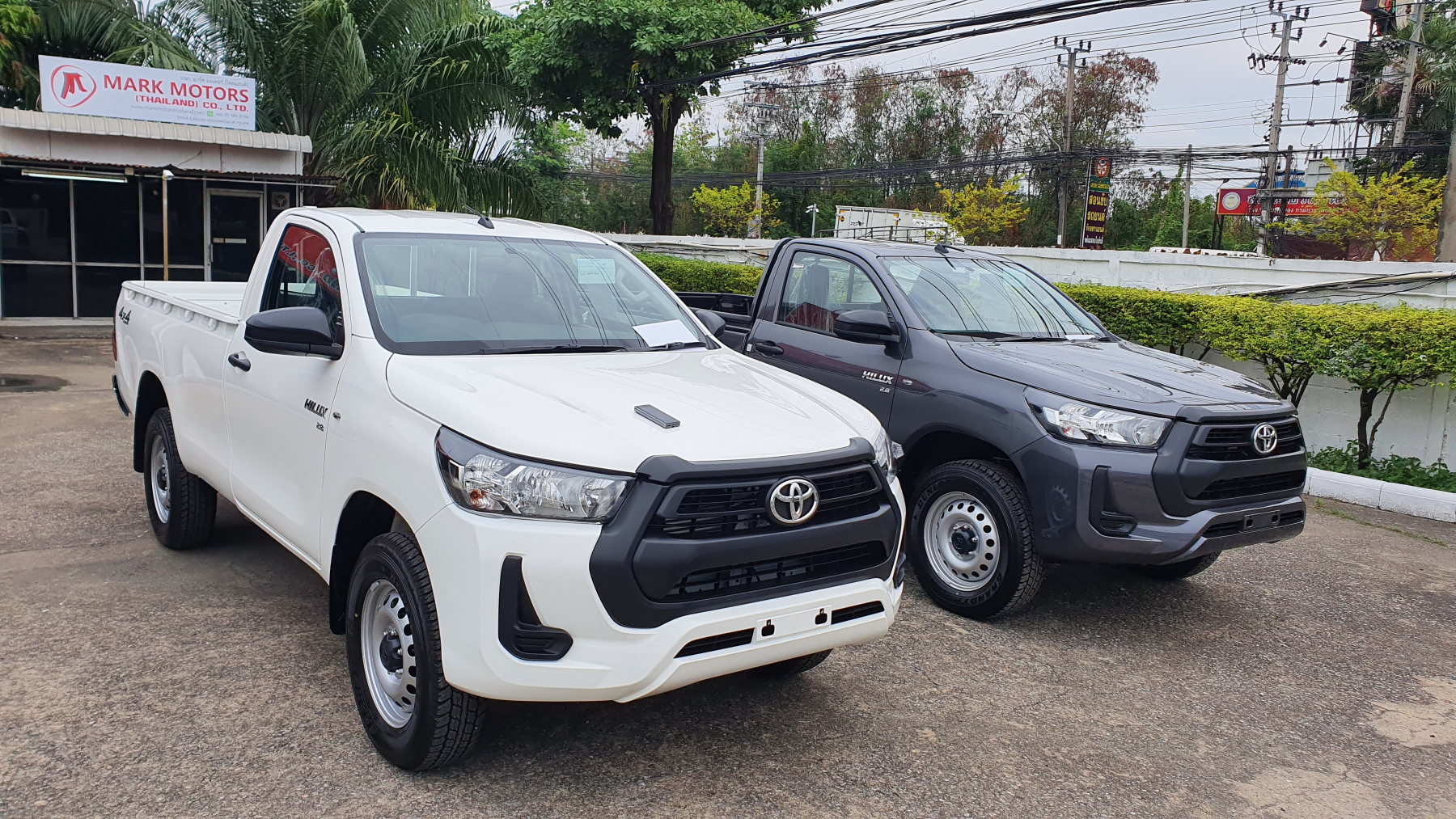

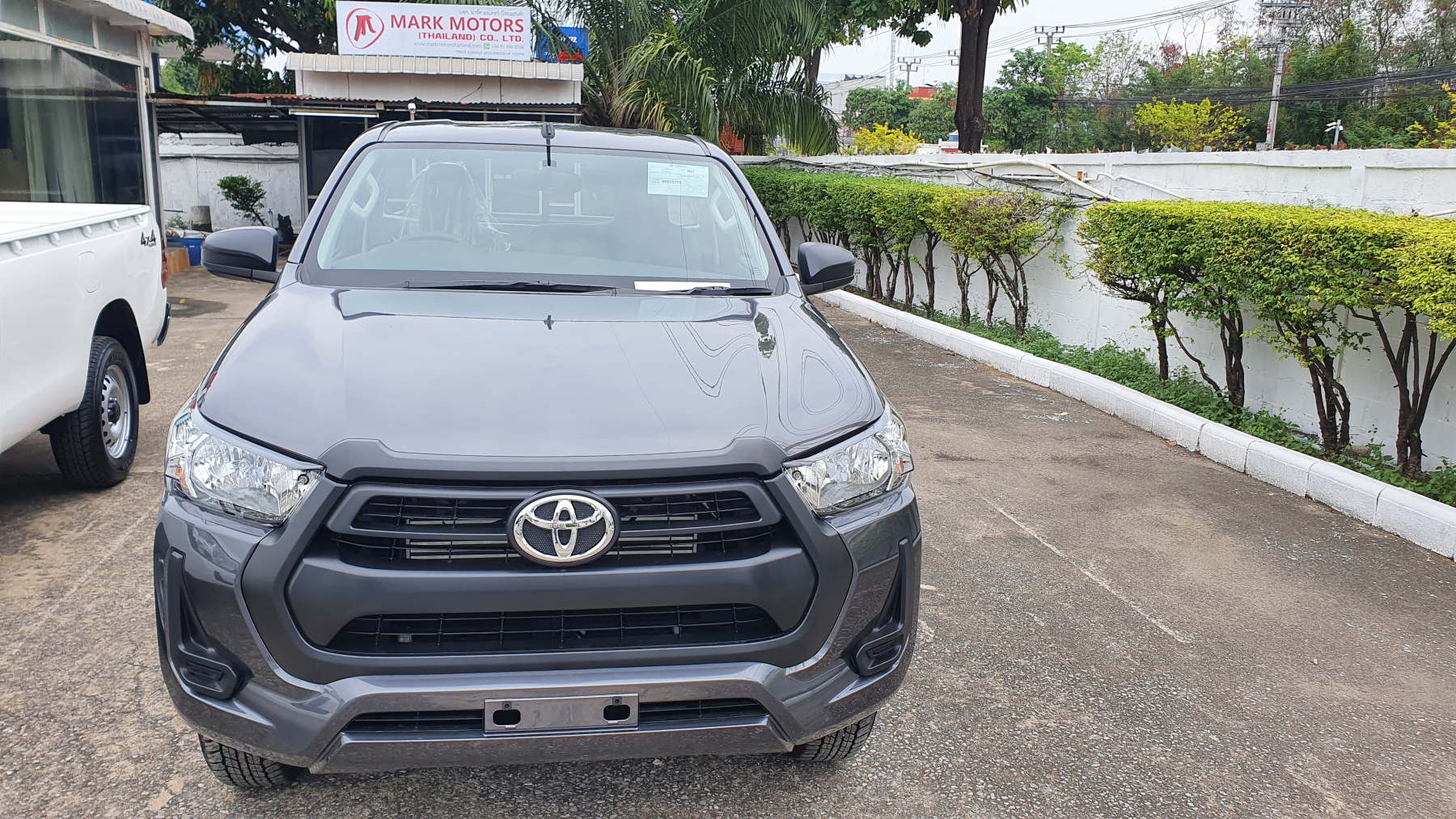

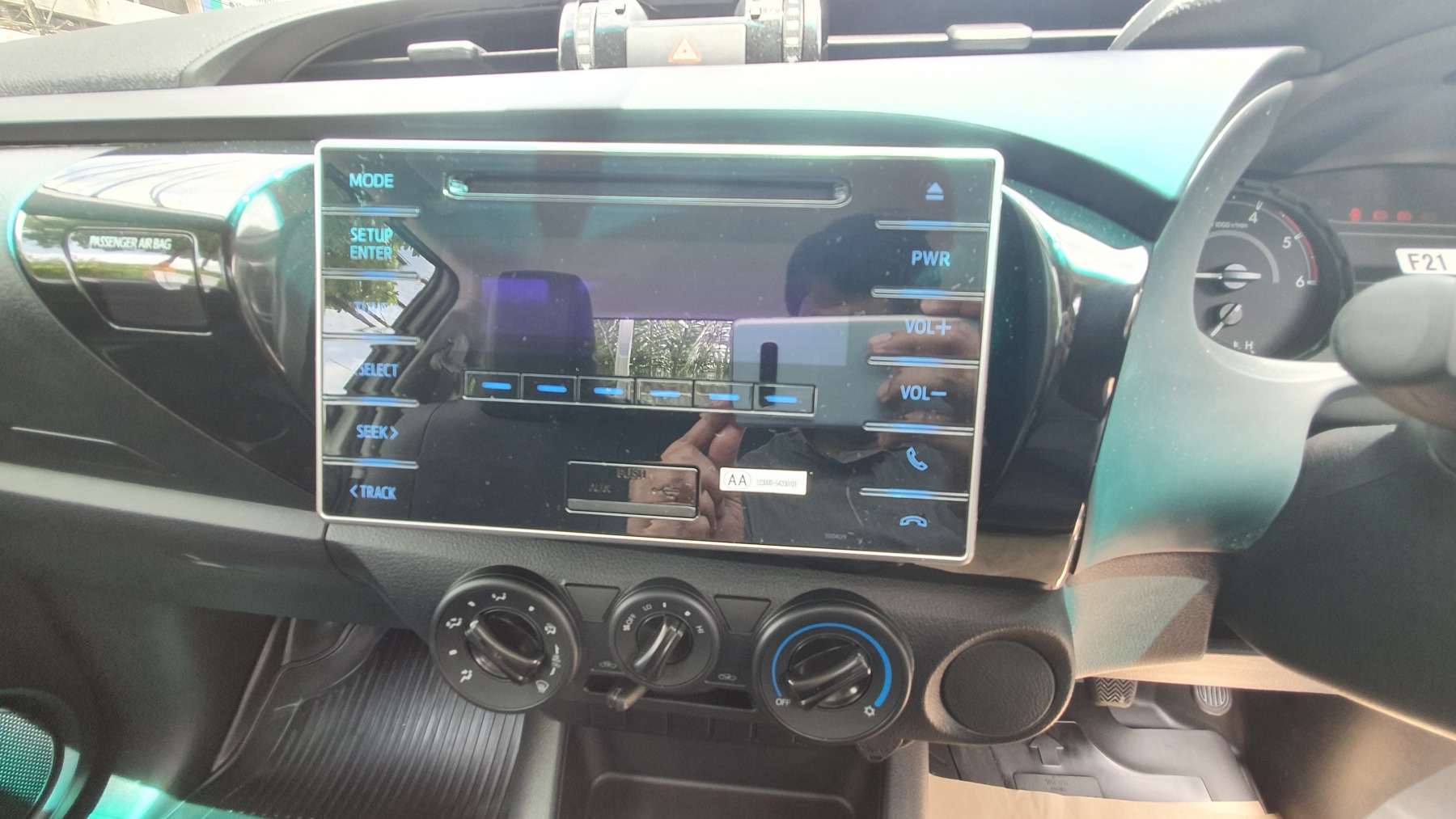

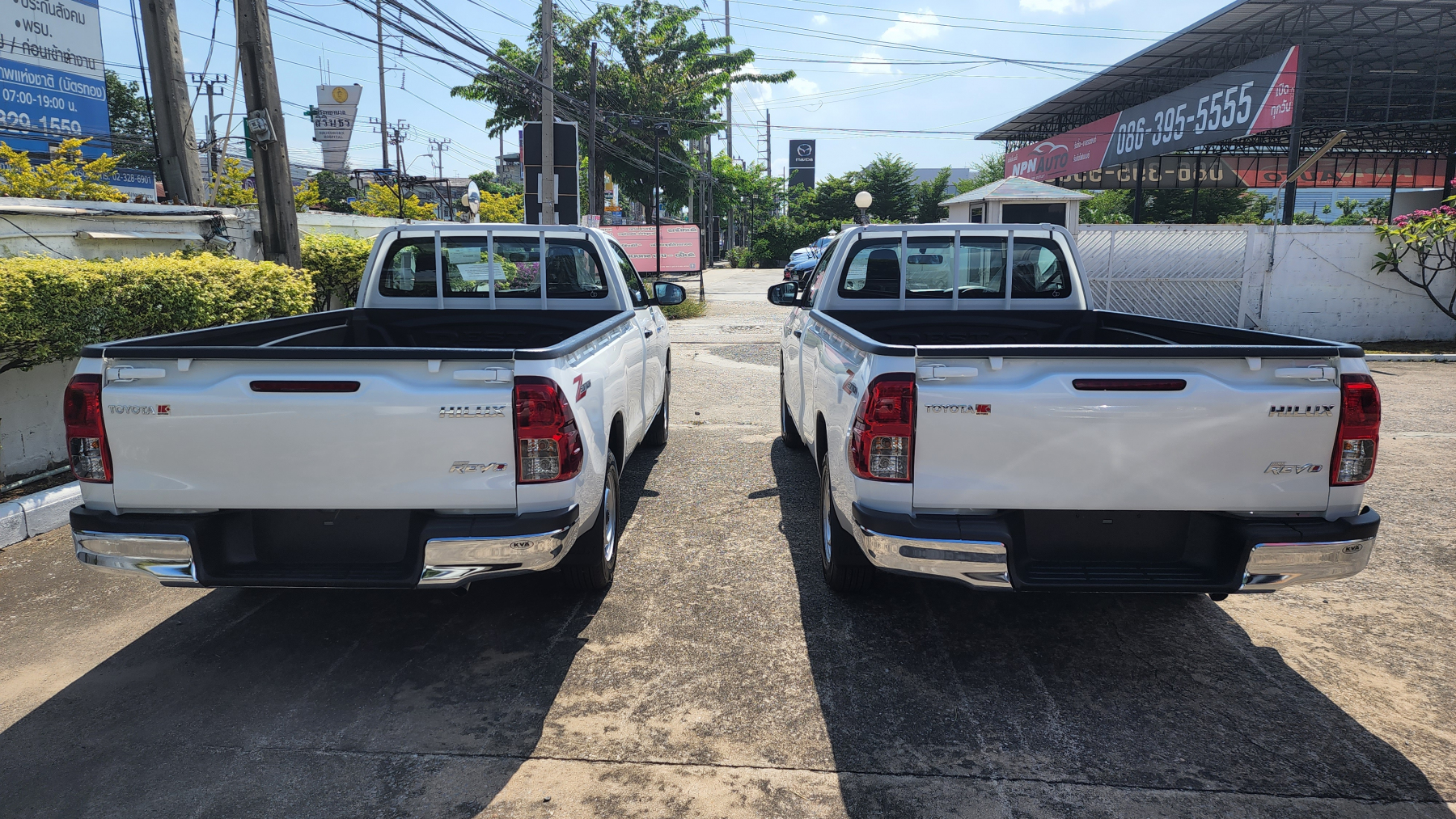

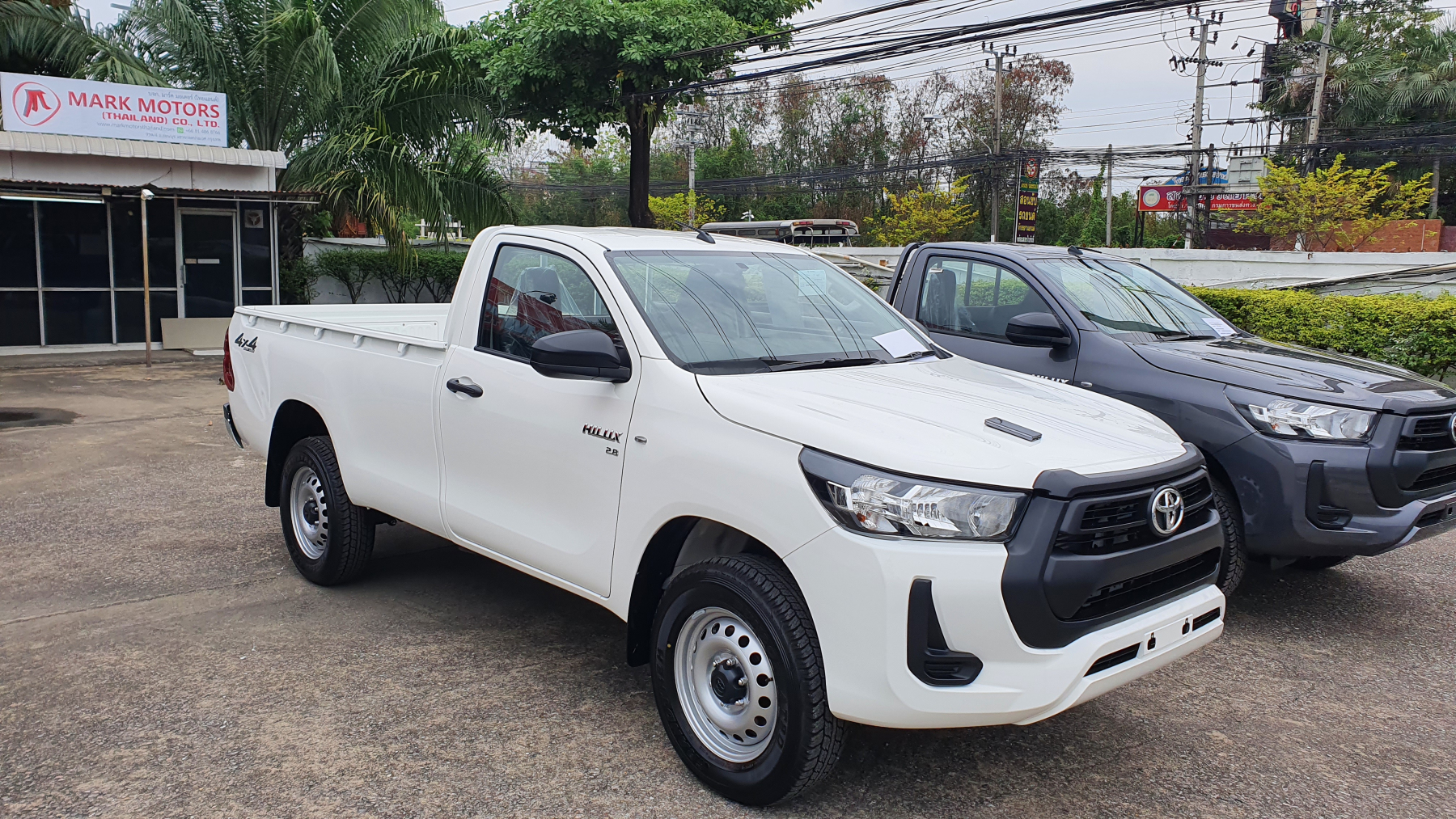

Some pictures of Toyota Hilux Revo 4×4 2.8 L Standard Single cabs at our showrooms

All Available models and grades of Toyota Hilux Revo Single Cab

  • 4X2 2.4J Cab & Chassis
  • 4X2 2.4J Cab & Chassis AT
  • 4X2 2.7J Petrol
  • 4X2 2.4J
  • 4X2 2.4J AT
  • 4X2 2.4J Plus Short Wheelbase
  • 4X2 2.8J Plus
  • 4X4 2.8J

Specifications of the 2.8 L 4×4 Revo Single Cab model (Most Popular Export)

Important Note: The below specs are subject to change without prior notice from Toyota Thailand. For up to date specs, please contact us

Exterior
Front GrillBlack
Front BumperBlack

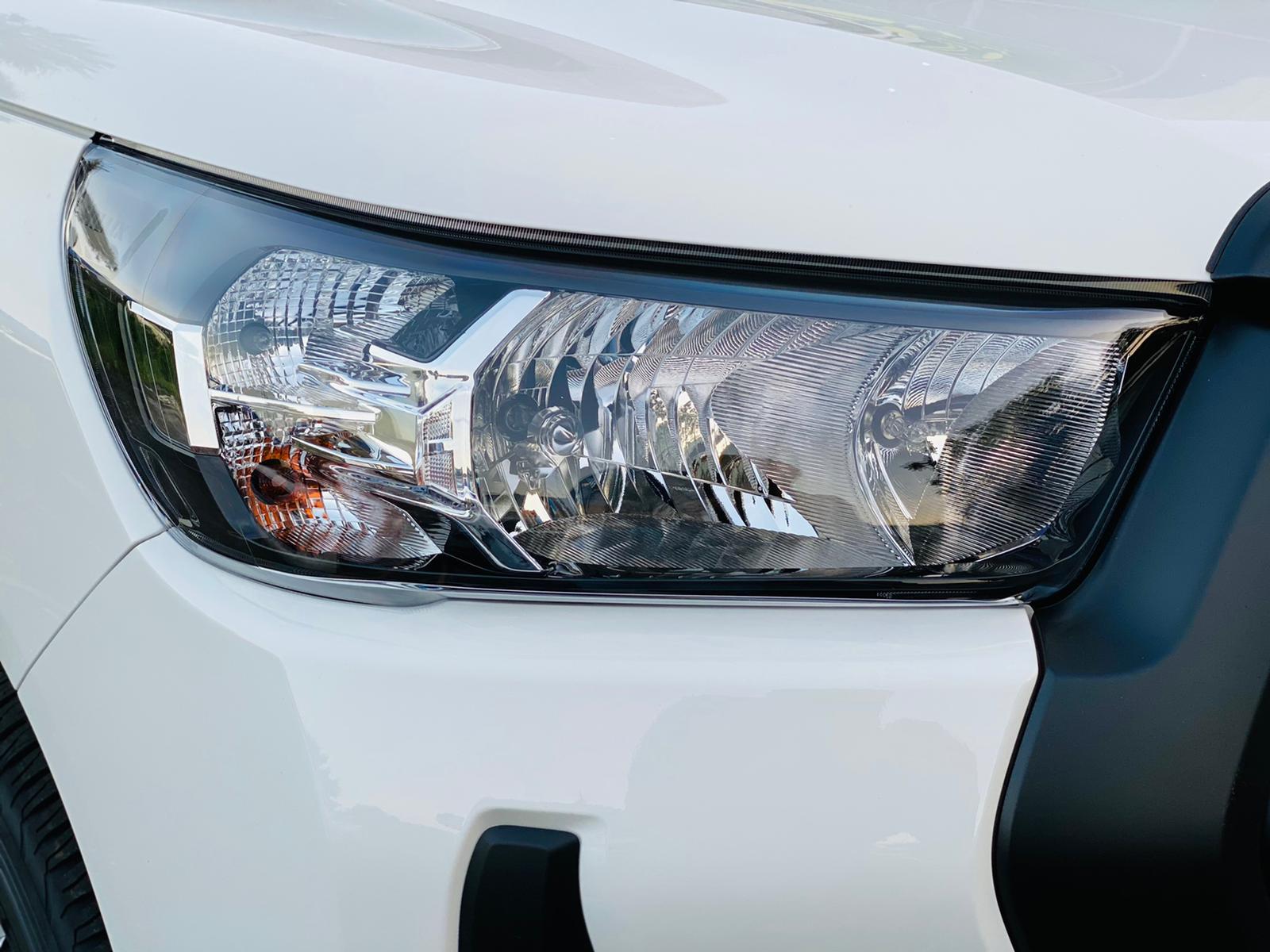

HeadlightHalogen Multi Reflector
Windshield GlassLaminated with Tint
Side MirrorBlack, Electrical Adjust
Door HandleBlack
MudguardFront and Rear
Front Rain Wiper3 Step Adjustable
Interior and Convenience
Interior ColorBlack

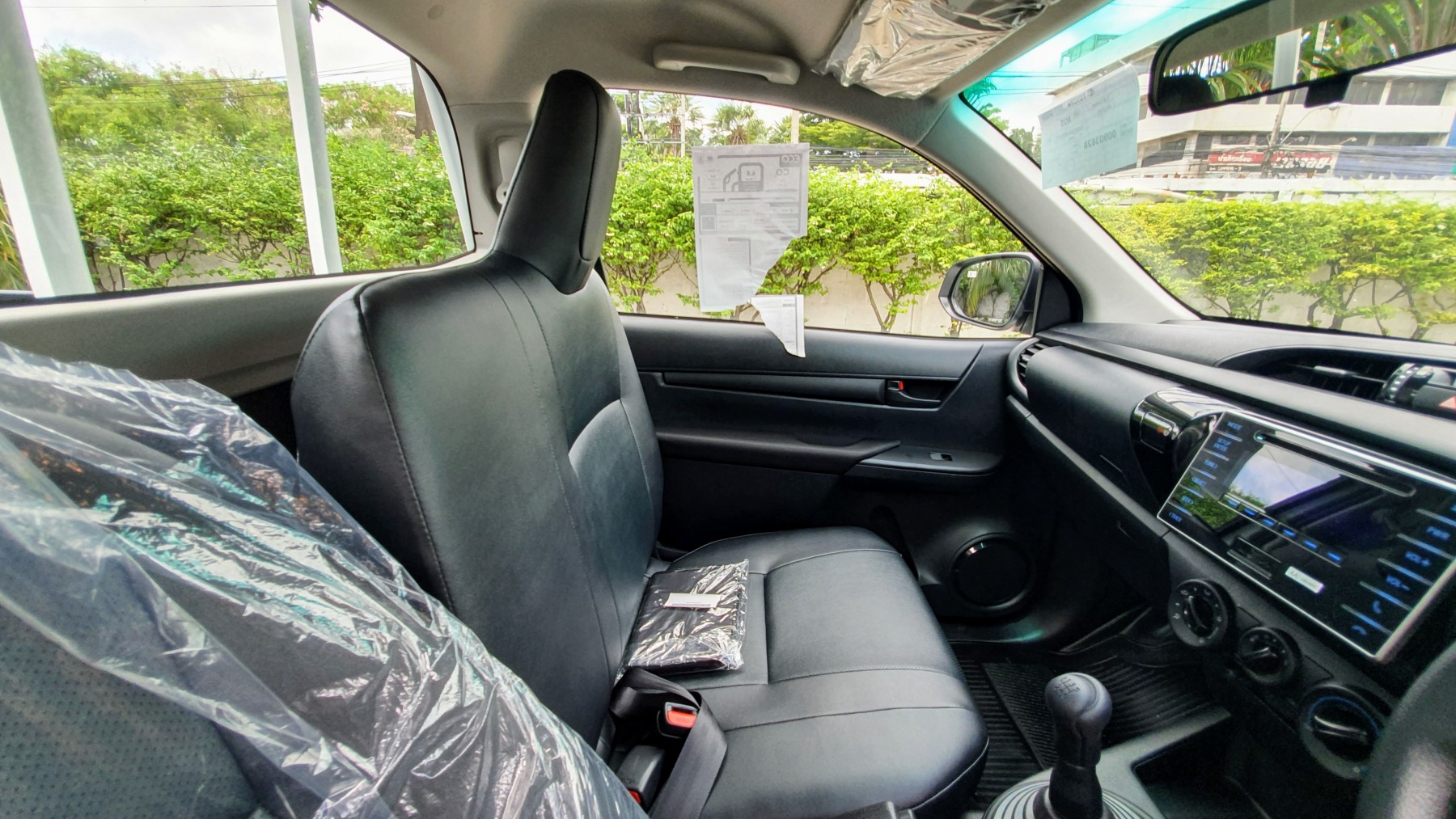

Seat TypeLong Bench 60/40 Foldable
Seat’s Material / ColorPVC / Black
Adjustable SeatNo
Distance Adjustment SeatDriver
Leanable SeatFront Seat
Front ConsoleBlack Metallic

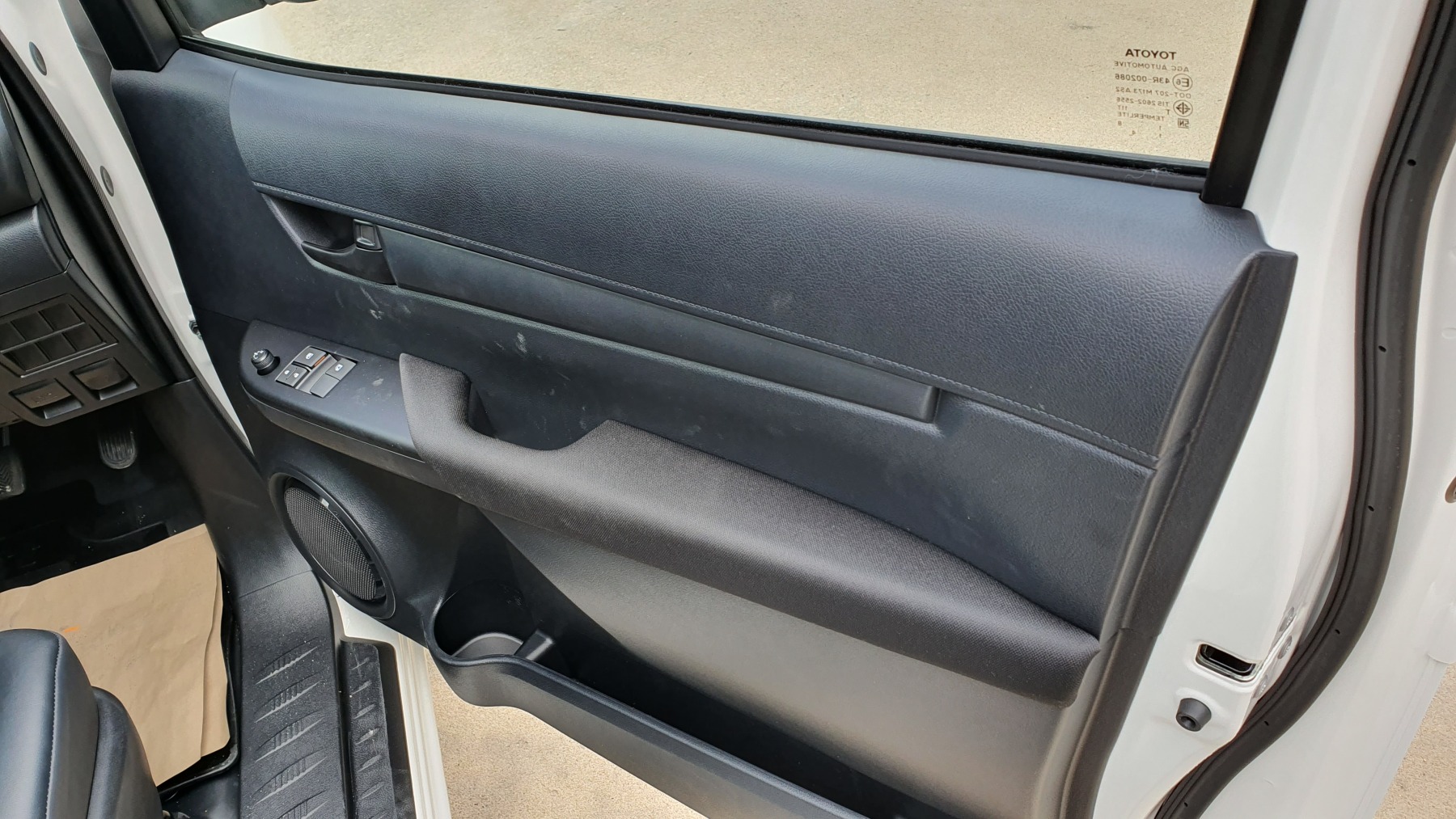

Door PanelBlack Fabric
Door Panel Control SwitchBlack
Sun Visor (Driver)With Namecard Holder
Sun Visor (Passenger)Yes
Interior Handle3 Positions

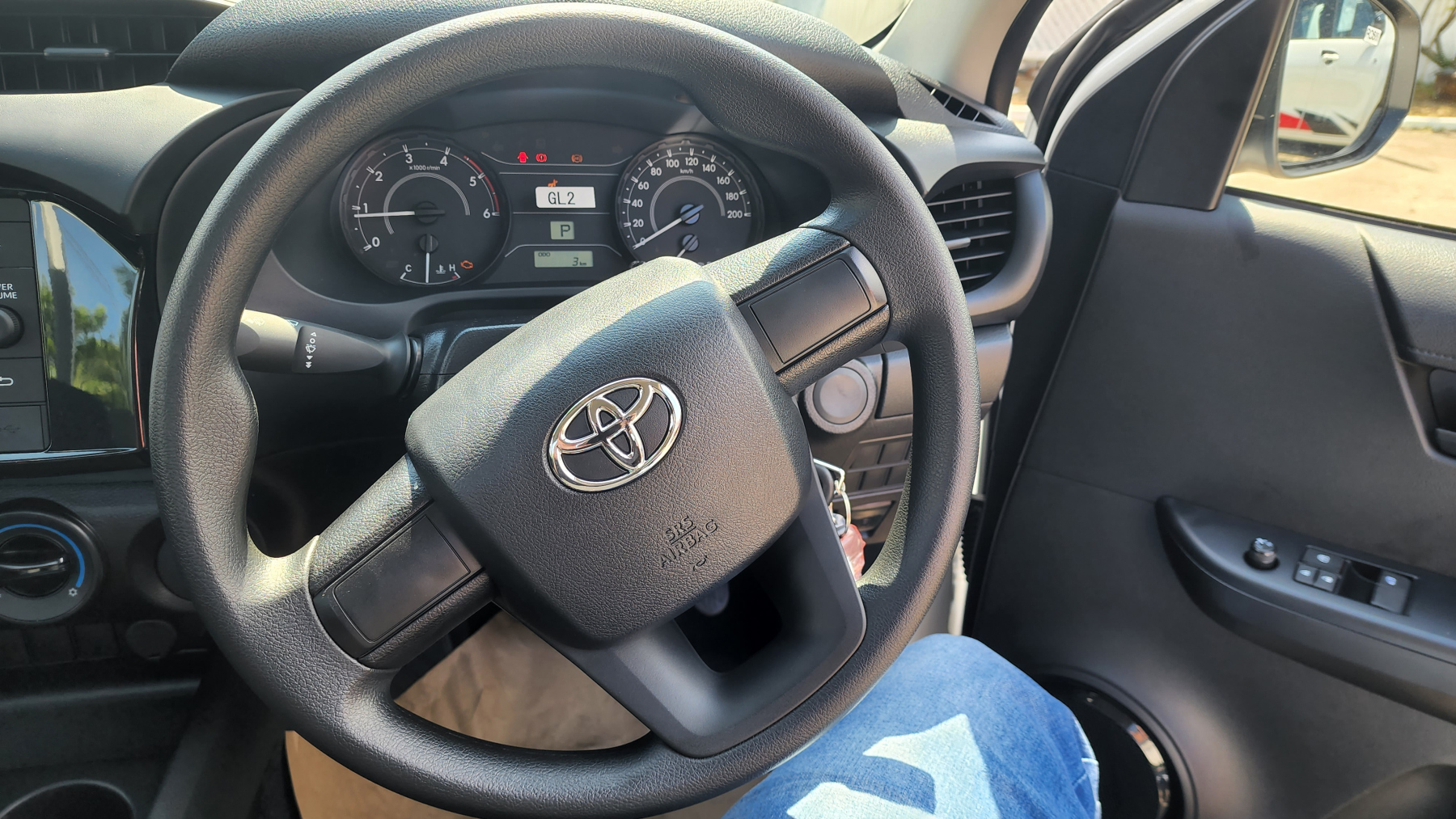

Steering Wheel’s MaterialUrethane
Adjustable Steering WheelTilt & Telescopic
Gear’s MaterialUrethane
Parking BrakeBlack
Illumination SystemWith Reading Lamp
Keyhold LightYes
Rear MirrorAutomatic AntiNoglare
Electric WindowsAutomatic with JamNoprotection for Driver
Central Lock with Speed Auto LockWith System’s Battery Backup
Remote Control Jack Knife Key
Starting SystemStandard Key
Drive Mode Switch (Eco/Power) No
Air Conditioner with 5 AirNoflow DirectionsManual
Upper BoxYes
Lower BoxWith Key Lock
Console BoxNo
Door Panel StorageWith Bottle Holder
Glasses Console BoxYes
Glass HolderYes
Power Port DC 12V. Outlet 1 Position
Audio System and Connection

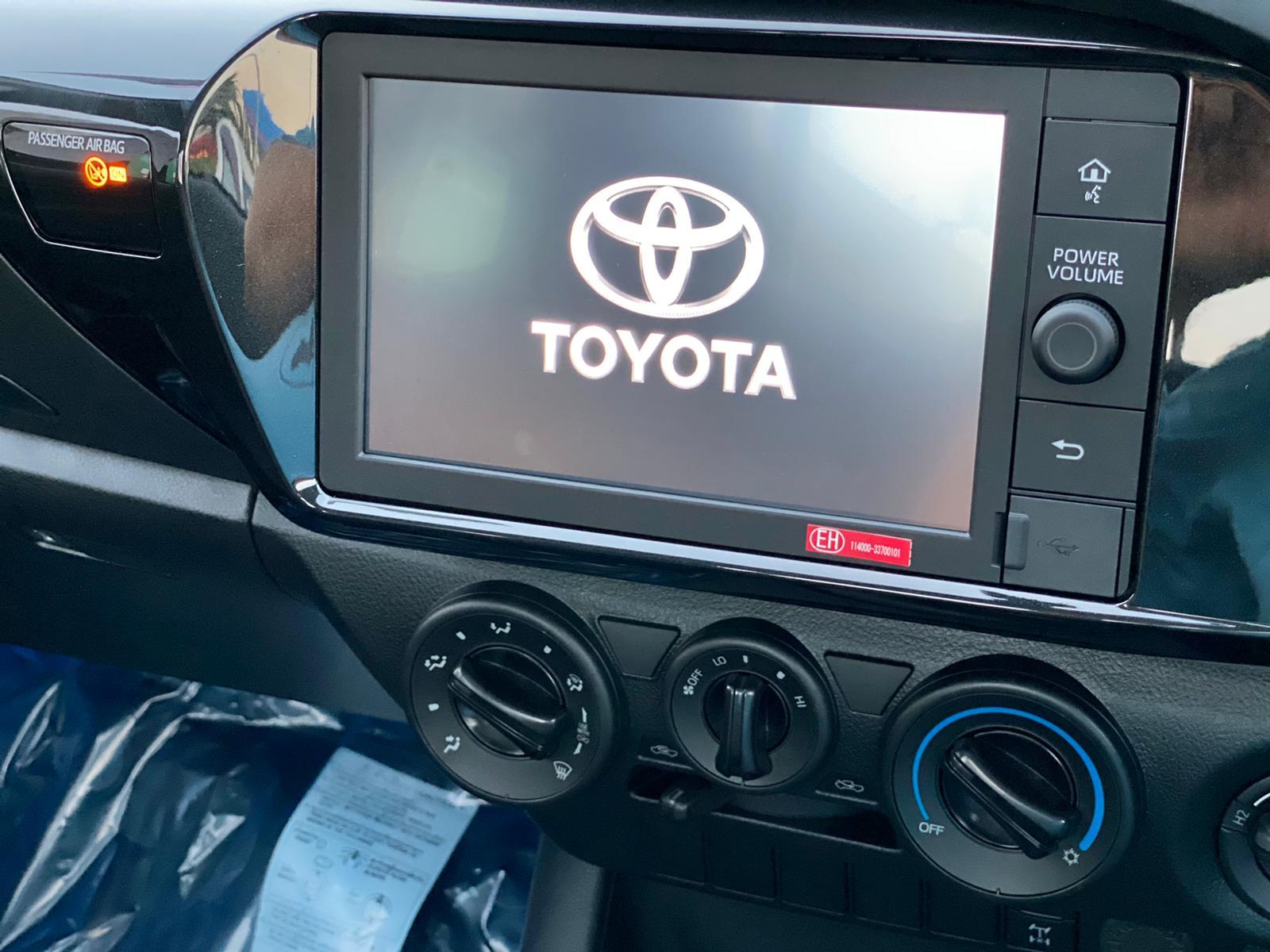

USB, FM/AM and CD Yes
BluetoothFor HandNofree and Music Player
Speakers2 Positions
AntennaShort
Safety
LED High Mount Stop Lamp Yes
Rear Window DefoggerNo
Fuel Tank CapFuel Cap Lever at Driver Seat
AntiNoLock Braking System (ABS)/Electronic Brake Force Distribution (EBD) Yes
Crash Body Safety GOA Yes
Side Bar Protection Yes
Seat Belt ELR 3 Points 2 PositionsWith Pretensioner & Force Limiter
Seat Belt NR 2 Points 1 Position Yes

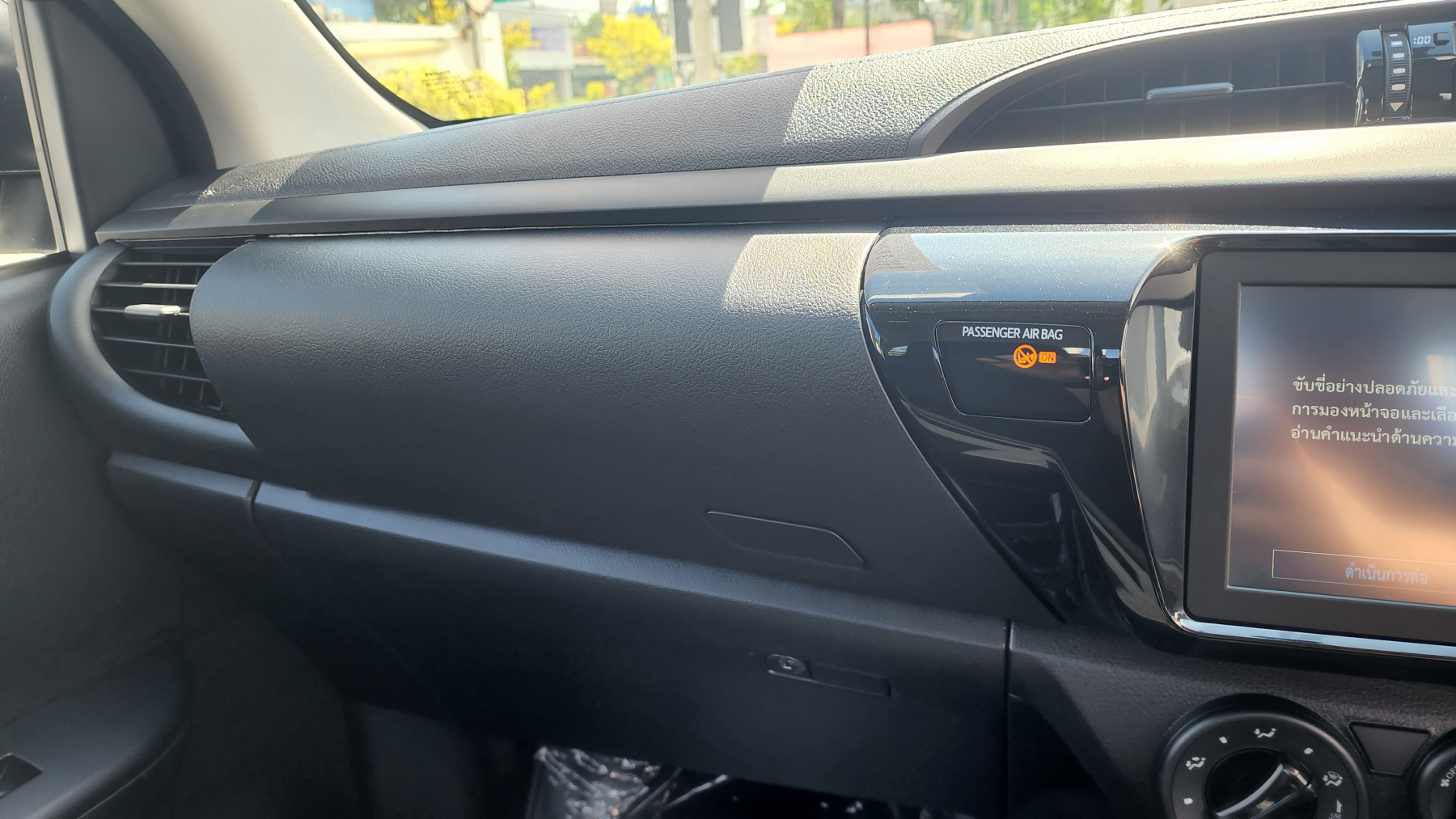

SRS AirbagDriver, Passenger and Knee Driver
Dimension
Overall Length x Width x Height (mm.)5,270 x 1,800 x 1,795
Wheelbase (mm.)3,085
Tread Front/Rear (mm.)1,505 x 1,520
Min. Ground Clearance (mm.)196
Deck Inside Length x Width x Height (mm.)2,315 x 1,575 x 480
Engine
Model1GDNoFTV (High)
Type4 cyl 16 valve DOHC VN Turbo Intercooler
Displacement (cc.)2,755
Bore x Stroke (mm.)92.0 x 103.6
Compression Ratio15.6 : 1
Max. Power [kW(PS)/rpm]130(177)/3,400
Max. Power (Nm/rpm)420/1,400No2,600
Fuel Supply SystemDirect Injection CommonNorail
Fuel Capacity (l.)80
Fuel TypeDiesel
Transmission and Chassis
Transmission4×4 with Differential Lock
Transmission System6MT
Gear Ratio 14.784
Gear Ratio 22.423
Gear Ratio 31.443
Gear Ratio 41
Gear Ratio 50.826
Gear Ratio 60.643
Reverse Gear Ratio4.066
Final Gear Ratio3.583
Front SuspensionDouble Wishbone with Stabilizer
Rear SuspensionRigid Type
Front BrakeDisc Brake / Ventilated Disc
Rear BrakeDrum Brake
Steering SystemRack & Pinion with Power Steering
Min. Turning Radius (m.)6.1
Tyre205 R16C
WheelSteel Wheel 16” with Hub Cab
Spare TireSteel Wheel 205 R16C
